Search › Model › F07W

F07W

Mitsubishi DIAMANTE-WAGON · 1992 · 3,259 parts · 209 categories

3,259 items

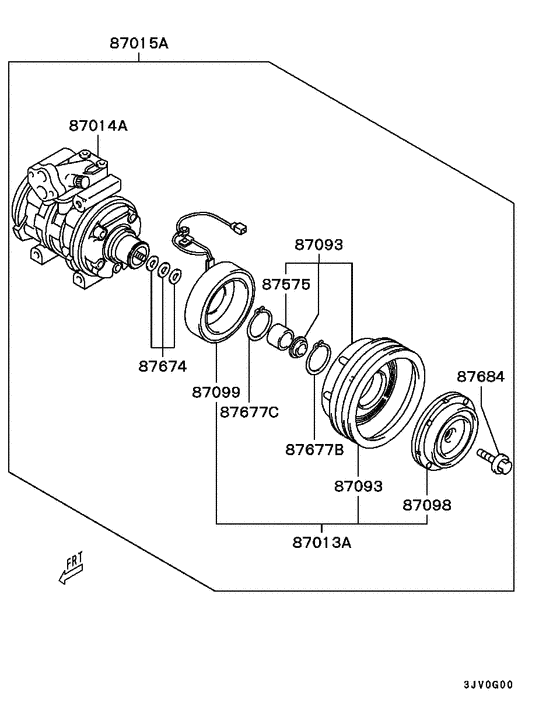

A/c condenser, piping (A/C COMPRESSOR..-9407.3) 21

#	OEM	Part name
87013	AW333987	CLUTCH ASSY, A/C COMPRESSOR
87013	AW337306	CLUTCH ASSY, A/C COMPRESSOR
87014	AW333986	COMPRESSOR ASSY, A/C
87014	AW337307	COMPRESSOR ASSY, A/C
87014	AW337583	COMPRESSOR ASSY, A/C
87015	AW328621	COMPRESSOR & CLUTCH ASSY, A/C
87015	AW335858	COMPRESSOR & CLUTCH ASSY, A/C
87015	AW337611	COMPRESSOR & CLUTCH ASSY, A/C
87093	AW333988	ROTOR, A/C COMPRESSOR CLUTCH
87093	AW337584	ROTOR, A/C COMPRESSOR CLUTCH
87098	AW332148	HUB, A/C COMPRESSOR CLUTCH
87098	AW340514	HUB, A/C COMPRESSOR CLUTCH
87099	AW333989	STATOR, A/C COMPRESSOR CLUTCH
87099	AW337585	STATOR, A/C COMPRESSOR CLUTCH
87575	AW332146	BEARING, A/C COMPRESSOR
87674	AW318455	WASHER, A/C COMPRESSOR - 0.1mm
87674	AW318456	WASHER, A/C COMPRESSOR - 0.3mm
87674	AW318457	WASHER, A/C COMPRESSOR - 0.5mm
87677	AW311274	SNAP RING, A/C COMPRESSOR
87677	AW318458	SNAP RING, A/C COMPRESSOR
87684	AW318459	BOLT, A/C COMPRESSOR

OEM	Part name	Category
AW311274	SNAP RING, A/C COMPRESSOR	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW318455	WASHER, A/C COMPRESSOR - 0.1mm	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW318456	WASHER, A/C COMPRESSOR - 0.3mm	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW318457	WASHER, A/C COMPRESSOR - 0.5mm	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW318458	SNAP RING, A/C COMPRESSOR	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW318459	BOLT, A/C COMPRESSOR	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW328621	COMPRESSOR & CLUTCH ASSY, A/C	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW332146	BEARING, A/C COMPRESSOR	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW332148	HUB, A/C COMPRESSOR CLUTCH	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW333986	COMPRESSOR ASSY, A/C	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW333987	CLUTCH ASSY, A/C COMPRESSOR	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW333988	ROTOR, A/C COMPRESSOR CLUTCH	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW333989	STATOR, A/C COMPRESSOR CLUTCH	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW335858	COMPRESSOR & CLUTCH ASSY, A/C	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW337306	CLUTCH ASSY, A/C COMPRESSOR	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW337307	COMPRESSOR ASSY, A/C	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW337583	COMPRESSOR ASSY, A/C	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW337584	ROTOR, A/C COMPRESSOR CLUTCH	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW337585	STATOR, A/C COMPRESSOR CLUTCH	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW337611	COMPRESSOR & CLUTCH ASSY, A/C	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
AW340514	HUB, A/C COMPRESSOR CLUTCH	A/c condenser, piping (A/C COMPRESSOR..-9407.3)
