Search › Model › EXZ15

EXZ15

Toyota RAUM · 1997 · 5,010 parts · 182 categories

5,010 items

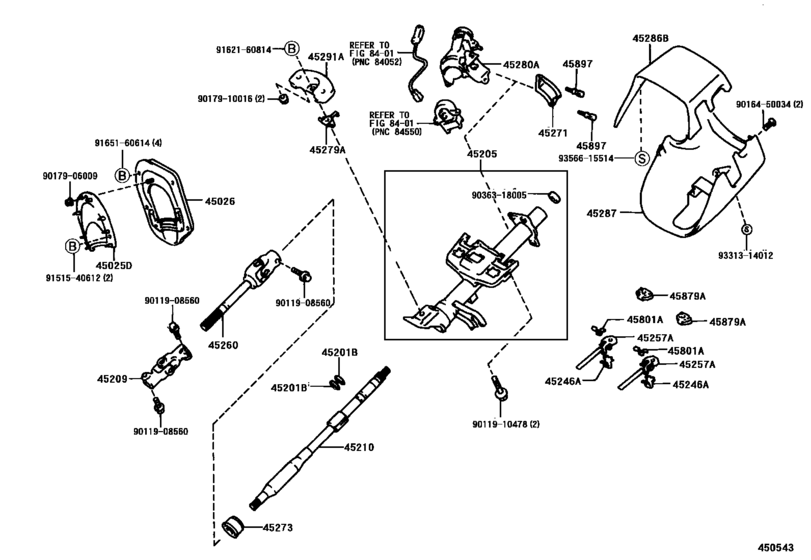

Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907)) 41

#	OEM	Part name
45025	45025-16130	Cover Sub-Assy, Steering Column Hole, No.1
45026	45026-16060	Cover Sub-Assy, Steering Column Hole, No.2
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45205	45205-44010	Tube Sub-Assy, Steering Column
45205	45205-44060	Tube Sub-Assy, Steering Column
45209	45209-16051	Yoke Sub-Assy, Steering Sliding
45210	45210-44010	Shaft Assy, Steering Main
45246	45246-12110	Guide, Steering Energy Absorbing Plate
45257	45257-12070	Plate, Steering Column Energy Absorbing
45260	45260-46010	Shaft Assy, Steering Intermediate, No.2
45271	45271-16020	Clamp, Steering Column, Upper
45273	45273-12020	Bush, Steering Main Shaft
45279	45279-44010	Attachment, Steering Column Tube, Lwr
45280	45280-44011	Bracket Assy, Steering Column, Upper
45280	45280-44020	Bracket Assy, Steering Column, Upper
45286	45286-44010-B0	Cover, Steering Column, Upr
45286	45286-46010-B0	Cover, Steering Column, Upr
45287	45024-46010-B0	Cover, Steering Column, Lwr
45287	45024-46020-B0	Cover, Steering Column, Lwr
45291	45291-50010	Support, Steering Column Tube
45801	45875-12010	Support Sub-Assy, Steering Post
45879	45879-12050	Capsule, Break Away
45897	45897-12020	Bolt, Steering Lock Set
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9011910478	90119-10478	New Genuine Part
9016450034	90164-50034	Direct
9016450034	93568-55014	Screw
9017906009	90179-06009	Nut (For Transmission Control Cable)
9017906009	90179-06156	Nut (For Transmission Control Cable)
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9036318005	90363-18005	Bearing(For Steering Main Shaft)
9151540612	91515-40612	New Genuine Part
9151540612	91511-40608	New Genuine Part
9162160814	91621-60814	Bolt (For Transmission Control Cable Bracket)
9162160814	91621-J0814	Bolt (For Transmission Control Cable Bracket)
9165160614	91651-60614	Bolt
9331314012	93313-14012	SCREW
9356615514	93566-15514	Direct

OEM	Part name	Category
45024-46010-B0	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45024-46020-B0	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45025-16130	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45026-16060	Cover Sub-Assy, Steering Column Hole, No.2	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45205-44010	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45205-44060	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45209-16051	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45210-44010	Shaft Assy, Steering Main	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45246-12110	Guide, Steering Energy Absorbing Plate	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45257-12070	Plate, Steering Column Energy Absorbing	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45260-46010	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45271-16020	Clamp, Steering Column, Upper	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45273-12020	Bush, Steering Main Shaft	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45279-44010	Attachment, Steering Column Tube, Lwr	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45280-44011	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45280-44020	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45286-44010-B0	Cover, Steering Column, Upr	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45286-46010-B0	Cover, Steering Column, Upr	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45291-50010	Support, Steering Column Tube	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45875-12010	Support Sub-Assy, Steering Post	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45879-12050	Capsule, Break Away	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90080-11555	Bolt w-washer	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90119-10478	New Genuine Part	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90164-50034	Direct	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90179-06009	Nut (For Transmission Control Cable)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90179-06156	Nut (For Transmission Control Cable)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90179-10016	Nut(For Counter Gear Shaft)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90179-10132	Nut	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90363-18005	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
91511-40608	New Genuine Part	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
91515-40612	New Genuine Part	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
91621-60814	Bolt (For Transmission Control Cable Bracket)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
91651-60614	Bolt	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
93313-14012	SCREW	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
93566-15514	Direct	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
93568-55014	Screw	Steering Column & Shaft ([05.1997 - 07.1999] (9705-9907))
