EXZ15

Toyota RAUM · 1997 · 5,010 parts · 182 categories

5,010 items

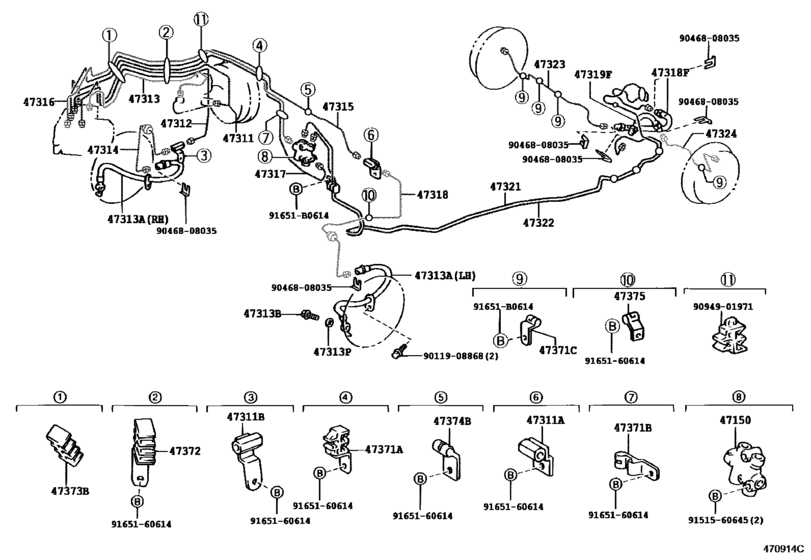

Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15) 43

#	OEM	Part name
47150	47150-46010	Valve Assy, Proportioning
47311	47311-46030	Tube, Front Brake, No.1
47311	90412-10116	Way(For Front Brake Tube)
47311	90412-10169	Way, No.1(For Front Brake Tube)
47311	47311-46010	Tube, Front Brake, No.1
47312	47312-46030	Tube, Front Brake, No.2
47312	47312-46010	Tube, Front Brake, No.2
47313	47313-46030	Tube, Front Brake, No.3
47313	90947-02813	Hose, Flexible, No.1(For Front)
47313	90947-02814	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47313	47313-46010	Tube, Front Brake, No.3
47314	47314-10230	Tube, Front Brake, No.4
47315	47315-46030	Tube, Front Brake, No.5
47315	47315-46010	Tube, Front Brake, No.5
47316	47316-46030	Tube, Front Brake, No.6
47316	47316-46010	Tube, Front Brake, No.6
47317	47317-46030	Tube, Front Brake, No.7
47317	47317-46010	Tube, Front Brake, No.7
47318	47318-46010	Tube, Front Brake, No.8
47318	90947-02796	Hose, Flexible(For Rear Rh)
47319	90947-02797	Hose, Flexible(For Rear Lh)
47321	47321-46020	Tube, Rear Brake, No.1
47322	47322-46020	Tube, Rear Brake, No.2
47323	47323-16190	Tube, Rear Brake, No.3
47324	47324-16180	Tube, Rear Brake, No.4
47371	47371-16050	Clamp, Brake Tube, No.1
47371	90949-01207	Clamp, Brake Tube, No.6
47371	90461-10763	Clamp, Exhaust Pipe
47372	47371-46010	Clamp, Brake Tube, No.2
47372	47371-16060	Clamp, Brake Tube, No.1
47373	90949-01969	Clamp, Brake Tube, No.6
47373	90080-46365	Clamp, Brake Tube, No.5
47374	90461-06055	Clamp, Brake Tube, No.1
47375	90461-06221	Clamp, Brake Tube, No.1
91651	91651-B0614	BOLT WWASHER
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9094901971	90949-01971	New Genuine Part
9151560645	91515-60645	New Genuine Part
9165160614	91651-60614	Bolt

OEM	Part name	Category
47150-46010	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47311-46010	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47311-46030	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47312-46010	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47312-46030	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47313-46010	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47313-46030	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47314-10230	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47315-46010	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47315-46030	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47316-46010	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47316-46030	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47317-46010	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47317-46030	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47318-46010	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47321-46020	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47322-46020	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47323-16190	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47324-16180	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47371-16050	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47371-16060	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
47371-46010	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90412-10116	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90412-10169	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90461-06055	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90461-06221	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90461-10763	Clamp, Exhaust Pipe	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90468-08035	CLIP	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90947-02796	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90947-02797	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90947-02813	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90947-02814	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90949-01207	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
90949-01971	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
91515-60645	New Genuine Part	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
91651-60614	Bolt	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
91651-B0614	BOLT WWASHER	Brake Tube & Clamp ([08.1997 - ] (9708- )EXZ15)
