EXZ10

Toyota RAUM · 1997 · 3,637 parts · 166 categories
EXZ10 ×

← Back to categories

3,637 items

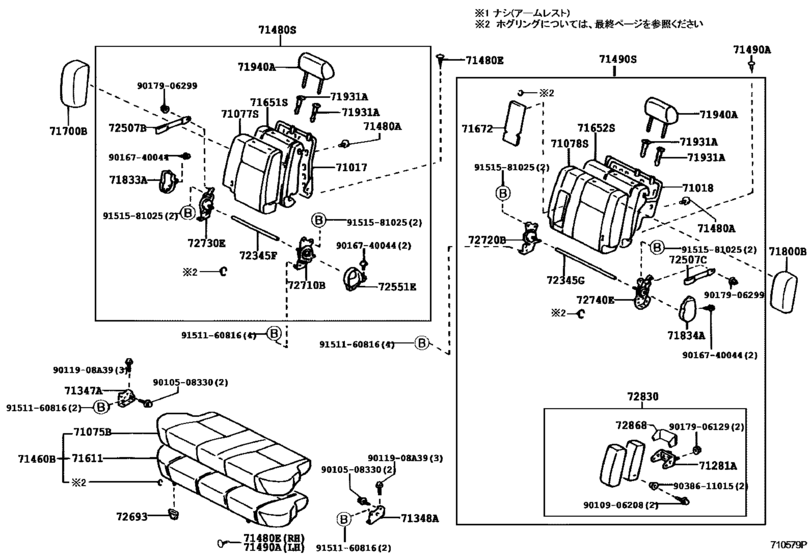

Rear Seat & Seat Track ([05.1997 - ] 6:4ﾌﾞﾝｶﾂﾘﾔｼ-ﾄ (9705- )) 49
#OEMPart name
71017 71017-46020 Frame Sub-Assy, Rear Seat Back, Rh
71017 71017-46030 Frame Sub-Assy, Rear Seat Back, Rh
71018 71018-46030 Frame Sub-Assy, Rear Seat Back, Lh
71075 71075-46060-B3 Cover, Rear Seat Cushion (For Bench Type)
71077 71077-46050-B3 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-46100-B1 Cover, Rear Seat Back, Rh (For Separate Type)
71078 71078-46120-B1 Cover, Rear Seat Back, Lh(For Separate Type)
71281 71281-46010 Hinge, Rear Seat Center Armrest
71460 71460-46060-B1 Cushion Assy, Rear Seat (For Bench Type)
71480 90467-07049-B7 Clip(For Front Floor Carpet)
71480 90467-08198-B3 Clip, Rear Seat Back, Rh
71480 71480-46100-B0 Back Assy, Rear Seat, Rh (For Separate Type)
71490 71490-46120-B0 Back Assy, Rear Seat, Lh (For Separate Type)
71611 71503-46050 Pad, Rear Seat Cushion
71651 71651-46020 Pad, Rear Seat Back, Rh(For Separate Type)
71651 71651-46030 Pad, Rear Seat Back, Rh(For Separate Type)
71652 71652-46030 Pad, Rear Seat Back, Lh(For Separate Type)
71672 71672-46010 Pad, Rear Seat Back Silencer, B
71672 71672-46020 Pad, Rear Seat Back Silencer, B
71700 71700-46010-B1 Seat Assy, Rear Side, Rh
71800 71800-46010-B1 Seat Assy, Rear Side, Lh
71833 71833-46020-B1 Cover, Rear Seat Reclining, No.1 Rh
71833 71833-42020-B2 Cover, Rear Seat Reclining, No.1 Rh
71834 71834-46020-B2 Cover, Rear Seat Reclining, No.1 Lh
71834 71834-42020-B2 Cover, Rear Seat Reclining, No.1 Lh
71931 71930-46010-C0 Support, Front Seat Headrest
71931 71931-12040-C0 Support, Front Seat Headrest
71931 71930-46010-B1 Support, Front Seat Headrest
71931 71931-12040-P6 Support, Front Seat Headrest
71940 71940-46010-B3 Headrest Assy, Rear Seat
71940 71910-46010-B4 Headrest Assy, Front Seat
72345 72345-46030 Pipe, Reclining Connecting, Rh
72507 72507-46020-C0 Handle Sub-Assy, Reclining Release, Rh
72507 72507-28011-B5 Handle Sub-Assy, Reclining Release, Rh
72693 72693-20040 Hook, Rear Seat Cushion Lock
72730 72730-46030 Adjuster Assy, Rear Seat Back, Outer Rh
72740 72740-46020 Adjuster Assy, Rear Seat Back, Outer Lh
72830 72830-46030-B2 Armrest Assy, Rear Seat, Center
72868 72868-46030-B2 Cover, Center Armrest Hinge, Rh
9011908 90119-08A39 BOLT WWASHER
9010508330 90105-08330 Bolt
9010508330 91511-B0816 BOLT
9010906208 90109-06208 New Genuine Part
9016740044 90167-40044 BOLT
9017906129 90179-06129 NUT
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9038611015 90386-11015 Bush(For Rear Seat Center Armrest)
9151160816 91511-60816 BOLT
9151581025 91515-81025 New Genuine Part
