Search › Model › EXZ10

EXZ10

Toyota RAUM · 1997 · 3,637 parts · 166 categories

3,637 items

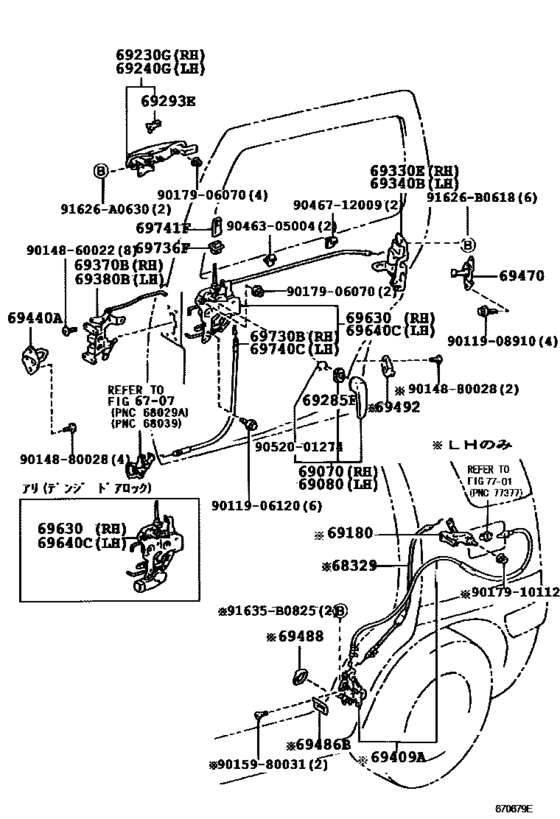

Rear Door Lock & Handle ([05.1997 - ] (9705- )) 64

#	OEM	Part name
68329	68329-46010	Cable, Slide Door Half Open Stopper
69070	69070-46011-B1	Handle Assy, Slide Door, Inside, Rh
69080	69080-46011-B1	Handle Assy, Slide Door, Inside, Lh
69180	69180-46010	Control Assy, Slide Door Half Open Stopper
69230	69230-46010	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-A0	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-A1	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-B1	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-C1	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-D0	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-F2	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-G0	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-H1	Handle Assy, Slide Door Outside, Rh
69230	69230-46020-J2	Handle Assy, Slide Door Outside, Rh
69240	69240-46010	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-A0	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-A1	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-B1	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-C1	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-D0	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-F2	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-G0	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-H1	Handle Assy, Slide Door, Outside Lh
69240	69240-46020-J2	Handle Assy, Slide Door, Outside Lh
69285	69285-22010-08	Escutcheon, Window Regulator Handle
69293	69759-14050	Snap(For Rear Door Inside Handle)
69293	69759-24070	Snap(For Rear Door Inside Handle)
69330	69330-46010	Lock Assy, Slide Door, Rh
69340	69340-46010	Lock Assy, Slide Door, Lh
69370	69370-46010	Lock Assy, Slide Door, Front Rh
69380	69380-46010	Lock Assy, Slide Door, Front Lh
69409	69409-46010	Stopper Sub-Assy, Slide Door Half Open
69409	69409-46012	Stopper Sub-Assy, Slide Door Half Open
69409	69409-46011	Stopper Sub-Assy, Slide Door Half Open
69440	69440-46010	Plate Assy, Slide Door Front Lock Striker
69440	69440-28020	Plate Assy, Slide Door Front Lock Striker
69470	69470-46010	Plate Assy, Slide Door Lock Striker
69486	69486-46010	Cover, Slide Door Half Open Stopper
69488	69488-46010	Seal, Slide Door Half Open Stopper Cover
69492	69492-46010	Stopper, Slide Door Half Open
69630	69630-46021	Control Assy, Slide Door Lock Remote
69640	69640-46021	Control Assy, Slide Door Lock Remote, Lh
69730	69730-46010	Cable Assy, Slide Door Lock Remote Control, Rh
69736	69736-16040	Guide, Front Door Locking Link
69741	69741-90K00-B9	Knob, Front Door Lock Control
69741	69741-90K00-C0	Knob, Front Door Lock Control
91626	91626-A0630	New Genuine Part
91626	91626-B0618	BOLTWWASHER
91626	91621-J0614	BOLT W-WASHER
91635	91635-B0825	New Genuine Part
91635	91631-B0820	BOLT WWASHER
9011906120	90119-06120	BOLT
9011908910	90119-08910	New Genuine Part
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880028	90148-80028	SCREW, HEX LOBULAR
9015980031	90159-80031	SCREW WWASHER
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017910112	90179-10112	New Genuine Part
9017910112	90179-10186	New Genuine Part
9046305004	90463-05004	Clamp, No.2(For Luggage Door Lock Control Cable)
9046712009	90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)
9052001274	90520-01274	Ring, Shaft Snap(For Front Door Window Regulator Handle)

OEM	Part name	Category
68329-46010	Cable, Slide Door Half Open Stopper	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69070-46011-B1	Handle Assy, Slide Door, Inside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69080-46011-B1	Handle Assy, Slide Door, Inside, Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69180-46010	Control Assy, Slide Door Half Open Stopper	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46010	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-A0	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-A1	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-B1	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-C1	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-D0	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-F2	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-G0	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-H1	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69230-46020-J2	Handle Assy, Slide Door Outside, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46010	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-A0	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-A1	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-B1	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-C1	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-D0	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-F2	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-G0	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-H1	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69240-46020-J2	Handle Assy, Slide Door, Outside Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69285-22010-08	Escutcheon, Window Regulator Handle	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69330-46010	Lock Assy, Slide Door, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69340-46010	Lock Assy, Slide Door, Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69370-46010	Lock Assy, Slide Door, Front Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69380-46010	Lock Assy, Slide Door, Front Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69409-46010	Stopper Sub-Assy, Slide Door Half Open	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69409-46011	Stopper Sub-Assy, Slide Door Half Open	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69409-46012	Stopper Sub-Assy, Slide Door Half Open	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69440-28020	Plate Assy, Slide Door Front Lock Striker	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69440-46010	Plate Assy, Slide Door Front Lock Striker	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69470-46010	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69486-46010	Cover, Slide Door Half Open Stopper	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69488-46010	Seal, Slide Door Half Open Stopper Cover	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69492-46010	Stopper, Slide Door Half Open	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69630-46021	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69640-46021	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69730-46010	Cable Assy, Slide Door Lock Remote Control, Rh	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69736-16040	Guide, Front Door Locking Link	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69741-90K00-B9	Knob, Front Door Lock Control	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69741-90K00-C0	Knob, Front Door Lock Control	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69759-14050	Snap(For Rear Door Inside Handle)	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
69759-24070	Snap(For Rear Door Inside Handle)	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90119-06120	BOLT	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90119-08910	New Genuine Part	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90148-60022	BOLT	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90148-80028	SCREW, HEX LOBULAR	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90159-80031	SCREW WWASHER	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90179-10112	New Genuine Part	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90179-10186	New Genuine Part	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90463-05004	Clamp, No.2(For Luggage Door Lock Control Cable)	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
90520-01274	Ring, Shaft Snap(For Front Door Window Regulator Handle)	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
91621-J0614	BOLT W-WASHER	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
91626-A0630	New Genuine Part	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
91626-B0618	BOLTWWASHER	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
91631-B0820	BOLT WWASHER	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
91635-B0825	New Genuine Part	Rear Door Lock & Handle ([05.1997 - ] (9705- ))
