EXZ10

Toyota RAUM · 1997 · 3,637 parts · 166 categories

← Back to categories

3,637 items

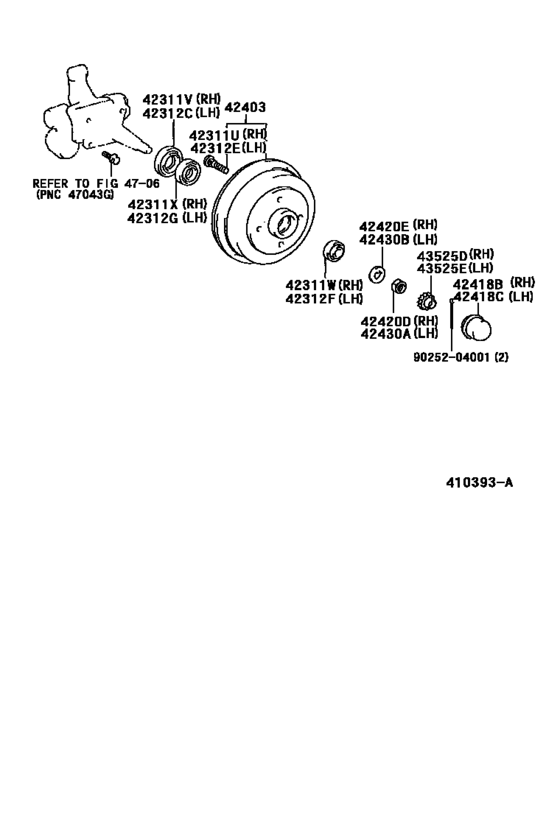

Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10) 11

#	OEM	Part name
42311	90942-02047	Bolt, Hub
42311	90311-38037	Seal, Oil (For Rear Axle Shaft)
42311	90366-17010	Bearing (For Rear Axle Shaft Outer)
42311	90368-17017	Bearing (For Rear Axle Shaft Outer)
42311	90366-29001	Bearing (For Rear Axle Shaft Inner Rh)
42403	42043-46010	Drum Sub-Assy, Rear Brake
42418	43514-10030	Cap, Rear Hub Grease
42420	94125-41600	Nut (For Rear Axle Shaft)
42420	90214-16010	Washer, Claw (For Rear Axle Shaft)
43525	43525-20011	Cap, Front Wheel Adjusting Lock
9025204001	90252-04001	CLIP

OEM	Part name	Category
42043-46010	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
43514-10030	Cap, Rear Hub Grease	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
43525-20011	Cap, Front Wheel Adjusting Lock	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
90214-16010	Washer, Claw (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
90252-04001	CLIP	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
90311-38037	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
90366-17010	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
90366-29001	Bearing (For Rear Axle Shaft Inner Rh)	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
90368-17017	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
94125-41600	Nut (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([05.1997 - ] (9705- )EXZ10)
