Search › Model › EXZ10

EXZ10

Toyota RAUM · 1997 · 3,637 parts · 166 categories

3,637 items

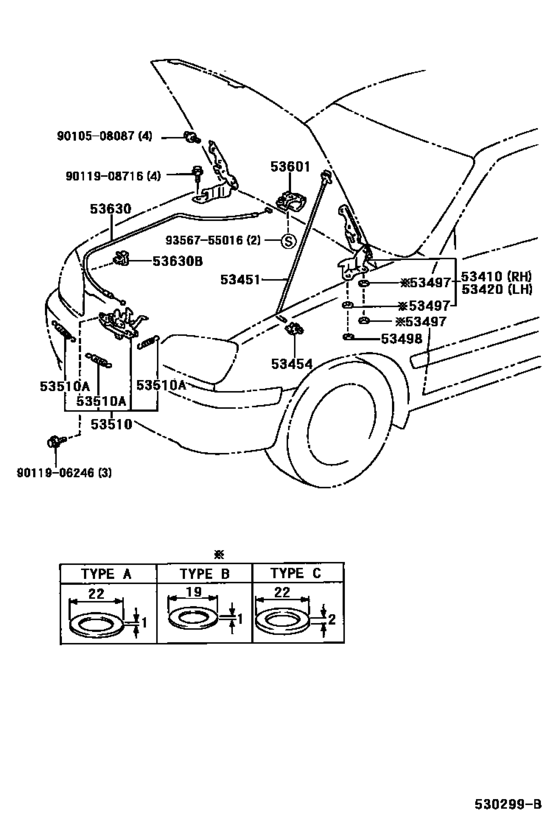

Hood Lock & Hinge ([05.1997 - ] (9705- )) 25

#	OEM	Part name
53410	53410-46010	Hinge Assy, Hood, Rh
53420	53420-46010	Hinge Assy, Hood, Lh
53451	53440-46010	Rod, Hood Support
53454	53454-16010	Clip, Hood Support Rod
53497	53497-12050	Pad, Hood Hinge, No.1
53497	53497-42010	Pad, Hood Hinge, No.1
53497	53497-12070	Pad, Hood Hinge, No.1
53497	53497-16020	Pad, Hood Hinge, No.1
53497	53497-20070	Pad, Hood Hinge, No.1
53498	53498-16020	Pad, Hood Hinge, No.1
53510	53510-16260	Lock Assy, Hood
53510	90506-09055	Spring, Tension(For Hood Lock)
53510	90506-12067	Spring, Tension(For Hood Lock)
53510	90506-20066	Spring, Tension(For Hood Lock)
53601	53601-16020-22	Lever Sub-Assy, Hood Lock Control (black color)
53601	53601-16020-B6	Lever Sub-Assy, Hood Lock Control
53601	53601-24030-C0	Lever Sub-Assy, Hood Lock Control
53630	53630-46010	Cable Assy, Hood Lock Control
53630	90467-09043	Clamp, Hood Lock Control Cable
9010508087	90105-08087	New Genuine Part
9011906246	90119-06246	New Genuine Part
9011906246	90119-06423	BOLT WWASHER
9011908716	90119-08716	BOLT WWASHER
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
53410-46010	Hinge Assy, Hood, Rh	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53420-46010	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53440-46010	Rod, Hood Support	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53454-16010	Clip, Hood Support Rod	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53497-12050	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53497-12070	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53497-16020	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53497-20070	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53497-42010	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53498-16020	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53510-16260	Lock Assy, Hood	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53601-16020-22	Lever Sub-Assy, Hood Lock Control (black color)	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53601-16020-B6	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53601-24030-C0	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([05.1997 - ] (9705- ))
53630-46010	Cable Assy, Hood Lock Control	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90105-08087	New Genuine Part	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90119-06246	New Genuine Part	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90119-06423	BOLT WWASHER	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90119-08716	BOLT WWASHER	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90467-09043	Clamp, Hood Lock Control Cable	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90506-09055	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90506-12067	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.1997 - ] (9705- ))
90506-20066	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([05.1997 - ] (9705- ))
93567-55016	Screw	Hood Lock & Hinge ([05.1997 - ] (9705- ))
93568-55016	Screw	Hood Lock & Hinge ([05.1997 - ] (9705- ))
