EXZ10

Toyota RAUM · 1997 · 3,637 parts · 166 categories

3,637 items

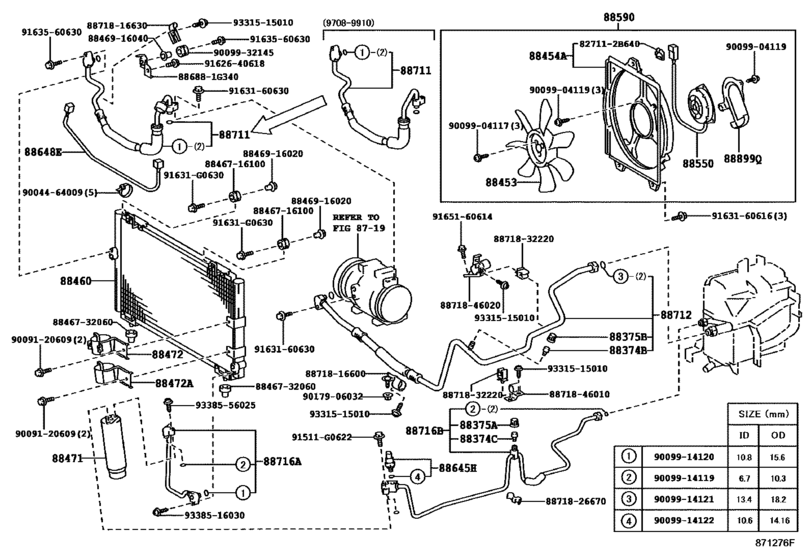

Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- )) 56

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88453	88453-20080	Fan, Rh
88454	88454-16140	Shroud, Fan
88460	88460-46010	Condenser Assy, Cooler
88471	88471-34010	Receiver & Dryer Assy, Cooler
88472	88472-46010	Bracket, Receiver Tank, No.1
88472	88472-46020	Bracket, Receiver Tank, No.2
88550	16363-74180	Motor, Cooling Fan
88590	88590-16070	Blower Assy, W/shroud
88645	88645-60030	Switch, Pressure No.1
88648	88648-46010	Wiring, Cooler
88711	88711-46010	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-46011	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-46010	Hose, Cooler Refrigerant Suction, No.1
88716	88716-46010	Pipe, Cooler Refrigerant Liquid, A
88716	88716-46020	Pipe, Cooler Refrigerant Liquid, B
88899	88899-16020	Plate, Cover
91511	91511-G0622	BOLT, FLANGE
91631	91631-G0630	New Genuine Part
827112	82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)
886881	88688-1G340	Bracket, Cooler Diaphragm
8846716100	88467-16100	Cushion, Cooler Condenser, No.1
8846732060	88467-32060	Cushion, Cooler Condenser, No.1
8846916020	88469-16020	Insulator, Cooler Condenser Mounting
8846916040	88469-16040	Insulator, Cooler Condenser Mounting
8871816600	88718-16600	Pipe, Cooler Refrigerant Suction, No.2
8871816630	88718-16630	Pipe, Cooler Refrigerant Suction, No.2
8871826670	88718-26670	Pipe, Cooler Refrigerant Suction, No.2
8871832220	88718-32220	Clamp(For Cooler Refrigerant Pipe), No.2
8871846010	88718-46010	Pipe, Cooler Refrigerant Suction, No.2
8871846020	88718-46020	Pipe, Cooler Refrigerant Suction, No.2
9004464009	90044-64009	CLAMP
9009120609	90091-20609	BOLT
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9009914122	90099-14122	O-RING
9009932145	90099-32145	New Genuine Part
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9162640618	91626-40618	BOLTWWASHER
9163160616	91631-60616	BOLT WWASHER
9163160616	91631-B0616	BOLT WWASHER
9163160630	91631-60630	BOLT WWASHER
9163160630	91631-B0630	BOLT WWASHER
9163560630	91635-60630	New Genuine Part
9163560630	90119-06775	BOLT WWASHER
9165160614	91651-60614	Bolt
9331515010	93315-15010	New Genuine Part
9338516030	93385-16030	Lever, Cooler Control, No.1
9338556025	93385-56025	New Genuine Part

OEM	Part name	Category
16363-74180	Motor, Cooling Fan	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88453-20080	Fan, Rh	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88454-16140	Shroud, Fan	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88460-46010	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88467-16100	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88467-32060	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88469-16020	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88469-16040	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88471-34010	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88472-46010	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88472-46020	Bracket, Receiver Tank, No.2	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88590-16070	Blower Assy, W/shroud	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88645-60030	Switch, Pressure No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88648-46010	Wiring, Cooler	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88688-1G340	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88711-46010	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88711-46011	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88712-46010	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88716-46010	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88716-46020	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88718-16600	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88718-16630	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88718-26670	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88718-32220	Clamp(For Cooler Refrigerant Pipe), No.2	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88718-46010	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88718-46020	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
88899-16020	Plate, Cover	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90044-64009	CLAMP	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90091-20609	BOLT	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-04117	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-04119	BOLT WASHER HEAD	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-14122	O-RING	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90099-32145	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90119-06775	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90179-06032	Direct	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91511-G0622	BOLT, FLANGE	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91626-40618	BOLTWWASHER	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91631-60616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91631-60630	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91631-B0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91631-B0630	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91631-G0630	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91635-60630	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
91651-60614	Bolt	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
93315-15010	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
93385-16030	Lever, Cooler Control, No.1	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
93385-56025	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.1997 - ] MAKER OPT (9705- ))
