EXZ10

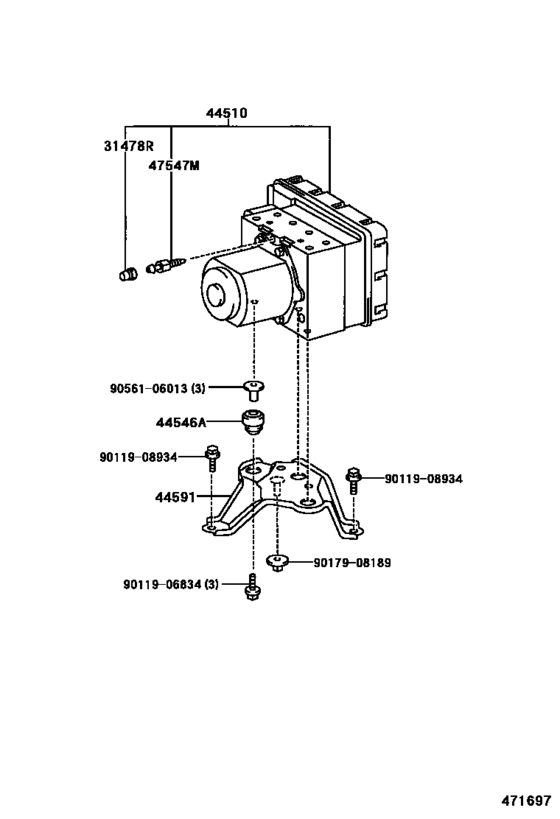

Brake Tube & Clamp ([07.1999 - ] (9907- )) 10
| # | OEM | Part name |
|---|---|---|
| 31478 | 31478-30010 | Bleeder Plug Cap |
| 44510 | 44050-46040 | Actuator Assy, Brake |
| 44546 | 44546-12100 | Cushion, Brake Actuator Bolt |
| 44591 | 44591-46020 | Bracket, Brake Actuator, No.1 |
| 47547 | 47547-22020 | Plug, Bleeder(For Rear Disc Brake) |
| 9011906834 | 90119-06834 | Bolt, Brake Actuator Cushion |
| 9011906834 | 90119-06844 | Bolt, Brake Actuator Cushion |
| 9011908934 | 90119-08934 | New Genuine Part |
| 9017908189 | 90179-08189 | NUT |
| 9056106013 | 90561-06013 | Spacer(For Height Control Compressor Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 31478-30010 | Bleeder Plug Cap | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 44050-46040 | Actuator Assy, Brake | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 44546-12100 | Cushion, Brake Actuator Bolt | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 44591-46020 | Bracket, Brake Actuator, No.1 | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 47547-22020 | Plug, Bleeder(For Rear Disc Brake) | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 90119-06834 | Bolt, Brake Actuator Cushion | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 90119-06844 | Bolt, Brake Actuator Cushion | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 90119-08934 | New Genuine Part | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 90179-08189 | NUT | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
| 90561-06013 | Spacer(For Height Control Compressor Bracket) | Brake Tube & Clamp ([07.1999 - ] (9907- )) |
