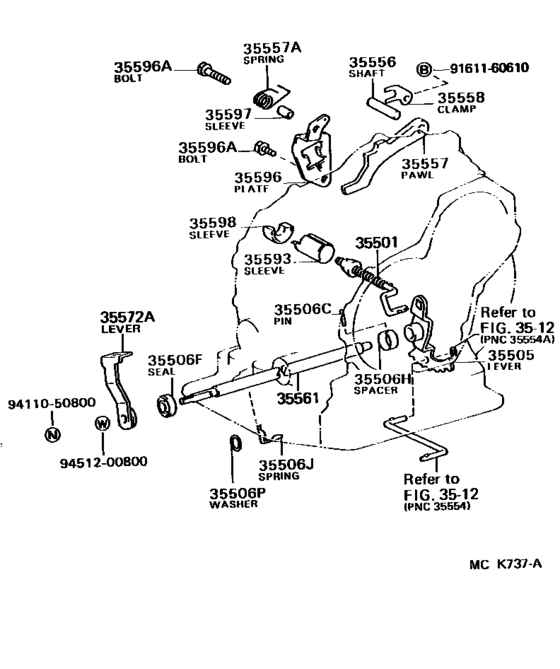

| 35501-12010 |
Rod Sub-Assy, Parking Lock |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35505-20040 |
Lever Sub-Assy, Manual Valve |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35505-20042 |
Lever Sub-Assy, Manual Valve |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35520-18010 |
Cable Assy, Throttle |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35523-12080 |
Clamp, Throttle Cable |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35556-12020 |
Shaft, Parking Lock Pawl |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35557-12020 |
Pawl, Parking Lock |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35558-12010 |
Clamp, Pawl Shaft |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35561-12020 |
Shaft Sub-Assy, Manual Valve Lever |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35572-10030 |
Lever, Transmission Control Shaft |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35593-12010 |
Sleeve, Cam Guide |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35596-12010 |
Plate, Pawl Stopper |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35597-12010 |
Sleeve, Spring Guide |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 35598-12010 |
Sleeve, Parking Lock |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90105-08068 |
Bolt (For Transaxle Rear Cover Setting) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90105-08070 |
Bolt (For Pawl Stopper Plate) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90201-12028 |
Washer, Plate (For Manual Valve Lever Shaft) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90254-04011 |
Pin, Slotted Spring (For Transfer Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90311-12002 |
Oil Seal, Type T |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90464-00375 |
Clamp, Throttle Cable, No.3 |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90508-21003 |
Spring, Torsion (For Parking Lock Pawl) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90524-11001 |
Spring, Retainer (For Manual Valve Lever Shaft) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 90560-20006 |
Spacer (For Manual Valve Lever) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 91551-C0835 |
Bolt (For Rear Differential Carrier) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 91611-60610 |
Bolt (For Transfer Oil Receiver No.1) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 91611-60614 |
Screw Or Bolt(For Valve Rocker Shaft Lock) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 91611-B0610 |
Bolt (For Transfer Oil Receiver No.1) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 91611-B0614 |
Bolt (For Rear Differential Breather Plug Oil Deflector) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 94110-50800 |
Nut(For Repair Actuator Set) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
| 94512-00800 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Throttle Link & Valve Lever (Atm) ([03.1990 - ] A242L (9003- )ATM) |
