EXY10

Toyota SERA · 1990 · 4,878 parts · 162 categories

4,878 items

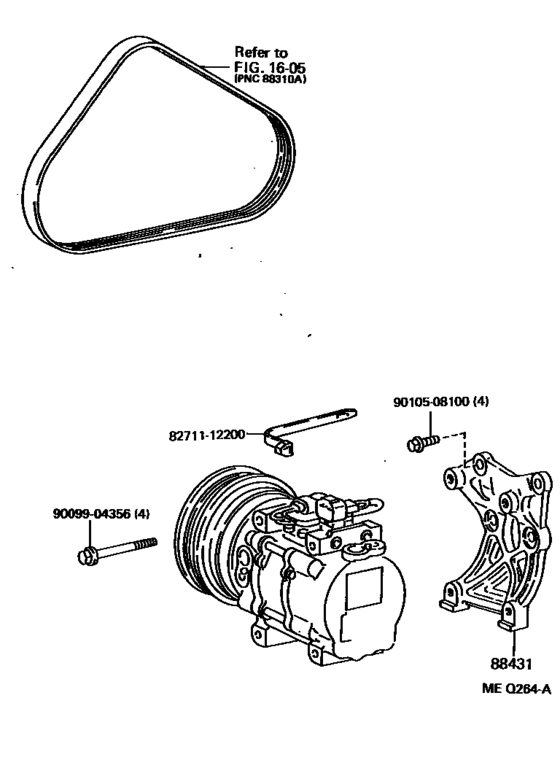

Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- )) 23

#	OEM	Part name
88301	88412-10140	Rotor Sub-Assy, Magnet Clutch
88301	88412-18180	Rotor Sub-Assy, Magnet Clutch
88302	88411-1A040	Stator Sub-Assy, Magnet Clutch
88302	88411-60030	Stator Sub-Assy, Magnet Clutch
88320	88320-10230	Compressor Assy, Cooler
88320	88320-10420	Compressor Assy, Cooler
88320	88320-12810	Compressor Assy, Cooler
88330	88335-14020	Washer
88403	88403-16011	Hub Sub-Assy, Magnet Clutch
88403	88403-1A010	Hub Sub-Assy, Magnet Clutch
88410	88410-10200	Clutch Assy, Magnet
88410	88410-18010	Clutch Assy, Magnet
88431	88431-16040	Bracket, Compressor Mounting, No.1
88431	88431-16060	Bracket, Compressor Mounting, No.1
88431	88431-16090	Bracket, Compressor Mounting, No.1
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8871822420	88718-22420	Pipe, Cooler Refrigerant Suction, No.2
9009904349	90099-04349	Bolt, Magnet Clutch Setting
9009904356	90099-04356	BOLT
9009907114	90099-07114	Ring, Snap (For Magnet Clutch)
9009907125	90099-07125	Ring, Snap
9010508100	90105-08100	BOLT
9331915008	93319-15008	SCREW

OEM	Part name	Category
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88320-10230	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88320-10420	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88320-12810	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88335-14020	Washer	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88403-16011	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88403-1A010	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88410-10200	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88410-18010	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88411-1A040	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88411-60030	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88412-10140	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88412-18180	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88431-16040	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88431-16060	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88431-16090	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
88718-22420	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
90099-04349	Bolt, Magnet Clutch Setting	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
90099-04356	BOLT	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
90099-07114	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
90099-07125	Ring, Snap	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
90105-08100	BOLT	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
93319-15008	SCREW	Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- ))
