Search › Model › EXY10

EXY10

Toyota SERA · 1990 · 4,878 parts · 162 categories

4,878 items

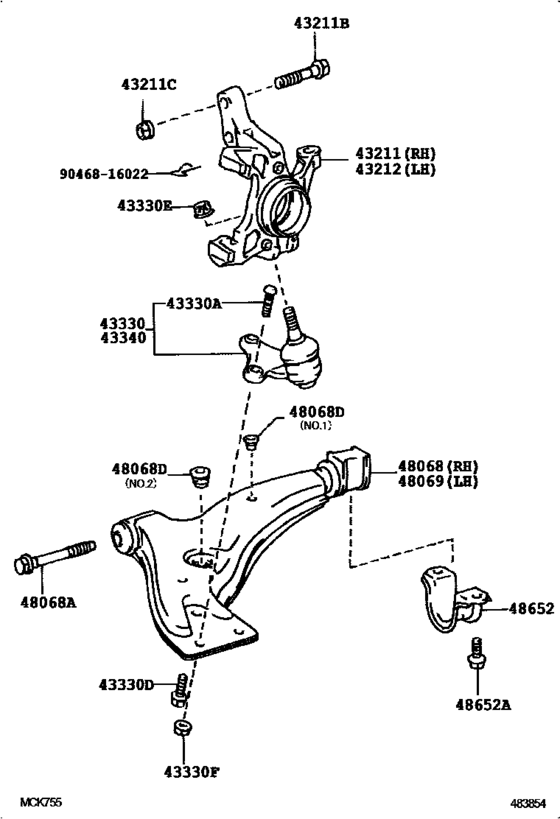

Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- )) 34

#	OEM	Part name
43211	43211-10060	Knuckle, Steering, Rh
43211	43211-10061	Knuckle, Steering, Rh
43211	43211-59045	Knuckle, Steering, Rh
43211	90389-16021	New Genuine Part
43211	43211-10062	Knuckle, Steering, Rh
43211	43211-10070	Knuckle, Steering, Rh
43211	43211-10071	Knuckle, Steering, Rh
43211	90105-15001	Bolt (For Rear Axle Carrier)
43211	90105-15002	Bolt (For Absorber Setting)
43211	90179-15001	Nut (For Rear Axle Carrier)
43211	90179-15003	Nut (For Absorber Setting)
43212	43212-10040	Knuckle, Steering, Lh
43212	43212-10041	Knuckle, Steering, Lh
43212	43212-59045	Knuckle, Steering, Lh
43212	43212-10042	Knuckle, Steering, Lh
43212	43212-10050	Knuckle, Steering, Lh
43212	43212-10051	Knuckle, Steering, Lh
43330	43330-19085	Joint Assy, Lower Ball, Front
43330	90114-10036	Serration Bolt(For Front Lower Ball Joint)
43330	90114-10032	Serration Bolt(For Front Lower Ball Joint)
43330	90119-10407	Bolt (For Front Lower Ball Joint)
43330	90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)
43330	90179-10088	Nut
43340	43340-19025	Joint Assy, Lower Ball, Front
48068	48068-10090	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-16060	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	90119-12099	Bolt(For Front Suspension Lower Arm)
48068	90950-01414	Plug, Hole(For Front Suspension Lower Arm)
48068	90950-01478	Plug, Hole(For Front Suspension Lower Arm)
48069	48069-10070	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-16060	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48652	48652-10020	Bracket, Front Lower Arm
48652	90105-12061	Bolt(For Front Lower Arm Bracket)
9046816022	90468-16022	CLIP

OEM	Part name	Category
43211-10060	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43211-10061	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43211-10062	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43211-10070	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43211-10071	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43211-59045	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43212-10040	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43212-10041	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43212-10042	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43212-10050	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43212-10051	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43212-59045	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43330-19085	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
43340-19025	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
48068-10090	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
48068-16060	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
48069-10070	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
48069-16060	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
48652-10020	Bracket, Front Lower Arm	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90105-12061	Bolt(For Front Lower Arm Bracket)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90105-15001	Bolt (For Rear Axle Carrier)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90105-15002	Bolt (For Absorber Setting)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90114-10032	Serration Bolt(For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90114-10036	Serration Bolt(For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90119-10407	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90119-12099	Bolt(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90171-12007	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90179-10088	Nut	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90179-15001	Nut (For Rear Axle Carrier)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90179-15003	Nut (For Absorber Setting)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90389-16021	New Genuine Part	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90468-16022	CLIP	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90950-01414	Plug, Hole(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))
90950-01478	Plug, Hole(For Front Suspension Lower Arm)	Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 162
Collected: 2026-08-04
