Search › Model › EXY10

EXY10

Toyota SERA · 1990 · 4,878 parts · 162 categories

4,878 items

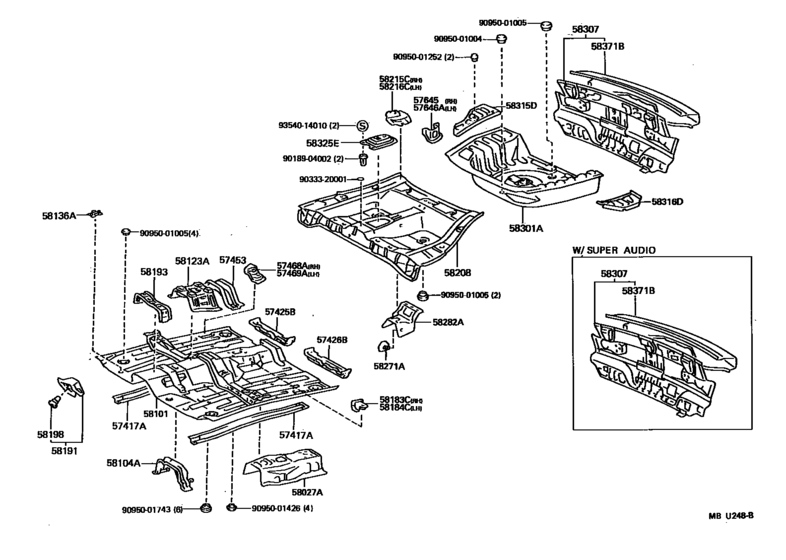

Floor Pan & Lower Back Panel ([03.1990 - ] (9003- )) 49

#	OEM	Part name
57417	57417-10070	Reinforcement, Front Floor Under
57425	57425-18010	Reinforcement, Front Floor, No.2 Rh
57426	57426-18010	Reinforcement, Front Floor, No.2 Lh
57453	57453-10020	Member, Front Floor Cross, No.3
57453	57453-10021	Member, Front Floor Cross, No.3
57453	90269-03067	RIVET
57468	57468-18010	Bracket, Front Seat, Outside, Rear Rh
57469	57469-18010	Bracket, Front Seat, Outside, Rear Lh
57645	57645-18010	Reinforcement, Rear Side Member, Rh
57646	57646-18010	Reinforcement, Rear Side Member, Lh
58027	58027-18011	Reinforce Sub-Assy, Seat Belt Anchor
58101	58111-10160	Pan Sub-Assy, Front Floor
58104	58104-16010	Bracket Sub-Assy, Catalytic Converter Support
58104	58104-16011	Bracket Sub-Assy, Catalytic Converter Support
58123	58123-18010	Support, Shift & Select Lever
58123	58123-10050	Support, Shift & Select Lever
58123	58123-18020	Support, Shift & Select Lever
58136	58136-12020	Cover, Front Floor Service Hole
58183	58183-18010	Bracket, Front Seat Mounting, Inside Rh
58184	58184-18010	Bracket, Front Seat Mounting, Inner Lh
58191	58191-10030	Footrest, Front Floor
58193	58193-10030	Bracket, Instrument Panel Brace Mounting
58198	58198-10020	Clip, Footrest
58208	58211-18010	Pan, Center Floor
58215	58215-18010	Reinforcement, Center Floor Panel, No.2 Rh
58216	58216-18010	Reinforcement, Center Floor Panel, No.2 Lh
58271	58271-18010	Reinforcement, Belt Anchor To Floor Pan, No.3
58282	58282-18010	Base, Belt Anchor To Floor Pan, No.3 Rh
58301	58301-18020	Panel Sub-Assy, Rear Floor
58301	58311-16152	Pan, Rear Floor
58301	58305-10011	Bracket Sub-Assy, Spare Wheel Clamp
58301	58315-10010	Extension, Rear Floor Pan, Rh
58301	58316-10010	Extension, Rear Floor Pan, Lh
58301	58369-20020	Bracket, Center Floor Heat Insulator
58301	58369-32010	Bracket, Insulator Heat
58301	58387-10010	Plate, Rear Floor Finish
58307	58307-18010	Panel Sub-Assy, Body Lower Back
58325	58325-18010	Cover, Rear Floor Service Hole
58371	58371-18010	Panel, Body Lower Back, Outer
9018904002	90189-04002	GROMMET
9033320001	90333-20001	PLUG
9095001004	90950-01004	Plug, Hole(For Front Door Panel)
9095001004	90950-01866	Plug, Hole(For Front Door Panel)
9095001005	90950-01005	PLUGHOLE
9095001005	90950-01867	PLUG HOLE
9095001252	90950-01252	New Genuine Part
9095001426	90950-01426	New Genuine Part
9095001743	90950-01743	PLUG HOLE
9354014010	93540-14010	Clip, Headlining Retainer

OEM	Part name	Category
57417-10070	Reinforcement, Front Floor Under	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57425-18010	Reinforcement, Front Floor, No.2 Rh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57426-18010	Reinforcement, Front Floor, No.2 Lh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57453-10020	Member, Front Floor Cross, No.3	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57453-10021	Member, Front Floor Cross, No.3	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57468-18010	Bracket, Front Seat, Outside, Rear Rh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57469-18010	Bracket, Front Seat, Outside, Rear Lh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57645-18010	Reinforcement, Rear Side Member, Rh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
57646-18010	Reinforcement, Rear Side Member, Lh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58027-18011	Reinforce Sub-Assy, Seat Belt Anchor	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58104-16010	Bracket Sub-Assy, Catalytic Converter Support	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58104-16011	Bracket Sub-Assy, Catalytic Converter Support	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58111-10160	Pan Sub-Assy, Front Floor	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58123-10050	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58123-18010	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58123-18020	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58136-12020	Cover, Front Floor Service Hole	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58183-18010	Bracket, Front Seat Mounting, Inside Rh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58184-18010	Bracket, Front Seat Mounting, Inner Lh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58191-10030	Footrest, Front Floor	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58193-10030	Bracket, Instrument Panel Brace Mounting	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58198-10020	Clip, Footrest	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58211-18010	Pan, Center Floor	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58215-18010	Reinforcement, Center Floor Panel, No.2 Rh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58216-18010	Reinforcement, Center Floor Panel, No.2 Lh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58271-18010	Reinforcement, Belt Anchor To Floor Pan, No.3	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58282-18010	Base, Belt Anchor To Floor Pan, No.3 Rh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58301-18020	Panel Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58305-10011	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58307-18010	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58311-16152	Pan, Rear Floor	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58315-10010	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58316-10010	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58325-18010	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58369-20020	Bracket, Center Floor Heat Insulator	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58369-32010	Bracket, Insulator Heat	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58371-18010	Panel, Body Lower Back, Outer	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
58387-10010	Plate, Rear Floor Finish	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90189-04002	GROMMET	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90269-03067	RIVET	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90333-20001	PLUG	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90950-01004	Plug, Hole(For Front Door Panel)	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90950-01005	PLUGHOLE	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90950-01252	New Genuine Part	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90950-01426	New Genuine Part	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90950-01743	PLUG HOLE	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90950-01866	Plug, Hole(For Front Door Panel)	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
90950-01867	PLUG HOLE	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
93540-14010	Clip, Headlining Retainer	Floor Pan & Lower Back Panel ([03.1990 - ] (9003- ))
