ET196

Toyota CALDINA · 1992 · 4,710 parts · 258 categories
ET196 ×

← Back to categories

4,710 items

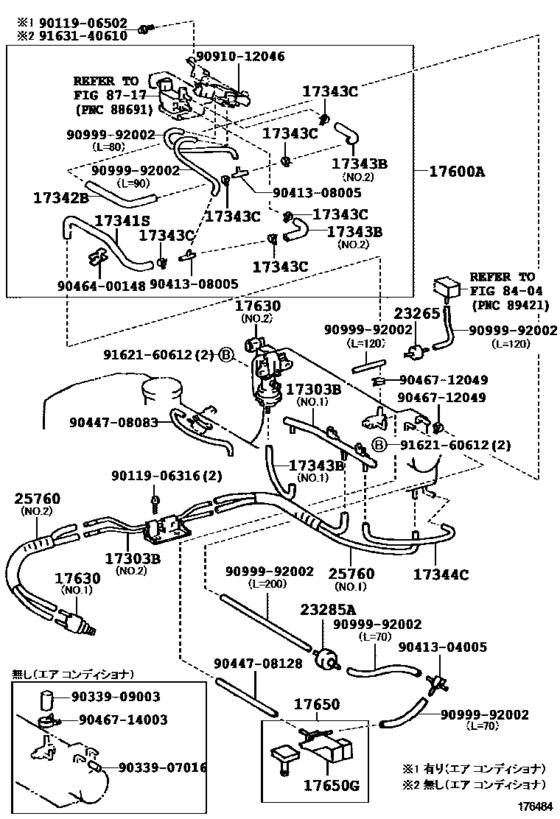

Vacuum Piping ([01.1996 - 08.1997] (9601-9708)5EFE) 46
#OEMPart name
17303 17303-11401 Pipe Sub-Assy, Air, No.1
17303 17303-11700 Pipe Sub-Assy, Air, No.1
17303 17303-11880 Pipe Sub-Assy, Air, No.1
17341 17341-11320 Hose, Air
17341 17341-11321 Hose, Air
17342 17342-11140 Hose, No.2(For Idle-Up)
17343 17343-11080 Hose, No.3(For Idle-Up)
17343 17343-11100 Hose, No.3(For Idle-Up)
17343 96132-30600 Clip(For Actuator Hose)
17343 96132-51100 Clip (For Hose)
17343 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
17344 17344-11030 Hose, No.4(For Idle-Up)
17600 17600-11020 Valve Assy, Air By-Pass W/hose
17600 17600-11021 Valve Assy, Air By-Pass W/hose
17630 17630-11050 Valve Assy, Air Control
17630 17630-11060 Valve Assy, Air Control
17630 90910-12122 Valve Assy, Air Control
17650 25860-11310 Valve Assy, Vacuum Switching
17650 25860-11350 Valve Assy, Vacuum Switching
17650 25860-16200 Valve Assy, Vacuum Switching
17650 90910-12170 Valve, Duty Vacuum Switching
17650 90910-12171 Valve, Duty Vacuum Switching
23265 90917-11030 Filter, Gas, No.1
23285 90917-10080 Filter, Gas, No.1
25760 25760-11200 Hose Assy, Vacuum Transmitting
25760 25760-11210 Hose Assy, Vacuum Transmitting
25760 25760-11340 Hose Assy, Vacuum Transmitting
9011906316 90119-06316 New Genuine Part
9011906502 90119-06502 New Genuine Part
9011906502 90119-06330 Bolt
9033907016 90339-07016 Cap(For Intake Air Connector)
9033909003 90339-09003 Plug(For Vacuum Hose Union)
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041308005 90413-08005 Way, 3
9044708083 90447-08083 Hose, Front Differential Vacuum, No.3
9044708128 90447-08128 New Genuine Part
9044708128 90447-08150 New Genuine Part
9046400148 90464-00148 New Genuine Part
9046712049 90467-12049 Clip(For Actuator Hose)
9046714003 90467-14003 Clip Or Clamp(For Ventilation Hose)
9091012046 90910-12046 Valve Assy, Vacuum Switching
9099992002 90999-92002 Air Hose (300 mm)
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9163140610 91631-40610 Bolt (For Transfer Oil Receiver No.1)
9163140610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
