Search › Model › ET196

ET196

Toyota CALDINA · 1992 · 4,710 parts · 258 categories

4,710 items

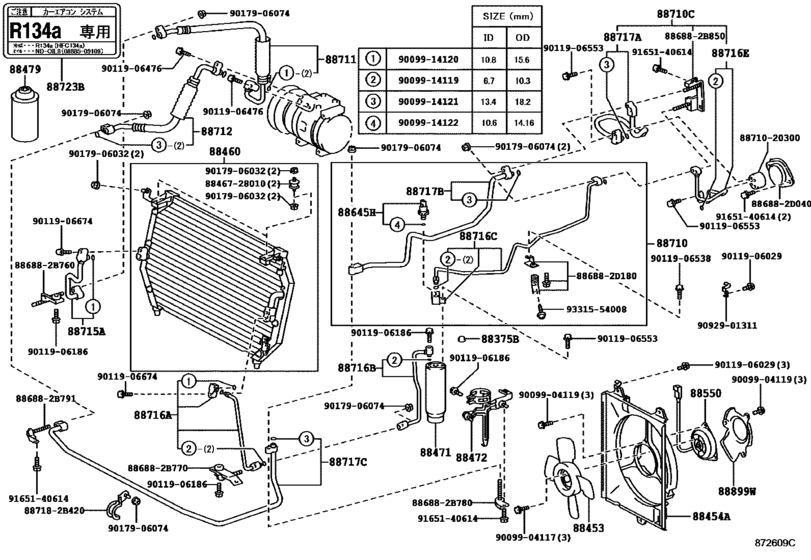

Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#) 83

#	OEM	Part name
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88453	16361-64010	Fan
88453	88453-20080	Fan, Rh
88454	88454-20020	Shroud, Fan
88454	88454-20160	Shroud, Fan
88460	88460-20370	Condenser Assy, Cooler
88460	88460-20520	Condenser Assy, Cooler
88471	88471-20050	Receiver & Dryer Assy, Cooler
88471	88471-34010	Receiver & Dryer Assy, Cooler
88472	88472-20160	Bracket, Receiver Tank, No.1
88472	88472-20200	Bracket, Receiver Tank, No.1
88479	90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550	16363-46030	Motor, Cooling Fan
88550	88550-12130	Motor, Cooling Fan
88550	88550-32110	Motor Assy, Blower (For Condenser)
88645	88645-20050	Switch, Pressure
88645	88645-60030	Switch, Pressure No.1
88710	88710-20230	Tube Assy, Air Conditioner
88711	88711-21020	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-21060	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-21070	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-21020	Hose, Cooler Refrigerant Suction, No.1
88712	88712-21060	Hose, Cooler Refrigerant Suction, No.1
88712	88712-21160	Hose, Cooler Refrigerant Suction, No.1
88712	88712-2B820	Hose, Cooler Refrigerant Suction, No.1
88715	88715-20120	Pipe, Cooler Refrigerant Discharge, A
88715	88715-20170	Pipe, Cooler Refrigerant Discharge, A
88716	88716-2D140	Pipe, Cooler Refrigerant Liquid, A
88716	88716-2D490	Pipe, Cooler Refrigerant Liquid, A
88716	88716-2D180	Pipe, Cooler Refrigerant Liquid, B
88716	88716-2D181	Pipe, Cooler Refrigerant Liquid, B
88716	88716-2D090	Pipe, Cooler Refrigerant Liquid, C
88716	88716-21060	Pipe, Cooler Refrigerant Liquid, E
88716	88716-2D170	Pipe, Cooler Refrigerant Liquid, E
88716	88716-2D470	Pipe, Cooler Refrigerant Liquid, E
88717	88717-21030	Pipe, Cooler Refrigerant Suction, A
88717	88717-2B230	Pipe, Cooler Refrigerant Suction, A
88717	88717-2B600	Pipe, Cooler Refrigerant Suction, A
88717	88717-2B160	Pipe, Cooler Refrigerant Suction, B
88717	88717-2B220	Pipe, Cooler Refrigerant Suction, C
88717	88717-2B221	Pipe, Cooler Refrigerant Suction, C
88723	88723-20030	Plate, Caution, No.1
88723	88733-30040	Label, Cooler Service Caution
88899	88899-20270	Support Sub-Assy, B
88899	88899-20290	Plate, Cover
886882	88688-2B760	Bracket, Cooler Diaphragm
886882	88469-28010	Collar, Condenser Bracket, No.1
886882	88688-2D060	Bracket, Cooler Diaphragm
886882	90099-32130	Grommet (For Power Take-Off Cable Bracket)
886882	88688-2B770	Bracket, Cooler Diaphragm
886882	88688-2B780	Bracket, Cooler Diaphragm
886882	88688-2B791	Bracket, Cooler Diaphragm
886882	88688-2B850	Bracket, Cooler Diaphragm
886882	88688-2D040	Bracket, Cooler Diaphragm
886882	88688-2D180	Bracket, Cooler Diaphragm
887182	88718-2B420	Pipe, Cooler Refrigerant Suction, No.2
8846728010	88467-28010	Cushion, Cooler Condenser, No.1
8871020300	88710-20300	Tube Assy, Airconditioner
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9009914122	90099-14122	O-RING
9011906029	90119-06029	New Genuine Part
9011906029	91651-G0616	BOLT WWASHER
9011906186	90119-06186	BOLT
9011906186	90119-06420	BOLT WWASHER
9011906476	90119-06476	New Genuine Part
9011906476	91652-60630	New Genuine Part
9011906538	90119-06538	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9011906538	91611-G0612	Bolt
9011906553	90119-06553	New Genuine Part
9011906553	91651-F0625	BOLT WWASHER
9011906674	90119-06674	New Genuine Part
9011906674	91651-G0645	New Genuine Part
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9092901311	90929-01311	New Genuine Part
9165140614	91651-40614	Bolt
9331554008	93315-54008	New Genuine Part

OEM	Part name	Category
16361-64010	Fan	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
16363-46030	Motor, Cooling Fan	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88453-20080	Fan, Rh	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88454-20020	Shroud, Fan	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88454-20160	Shroud, Fan	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88460-20370	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88460-20520	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88467-28010	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88469-28010	Collar, Condenser Bracket, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88471-20050	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88471-34010	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88472-20160	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88472-20200	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88550-12130	Motor, Cooling Fan	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88550-32110	Motor Assy, Blower (For Condenser)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88645-20050	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88645-60030	Switch, Pressure No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2B760	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2B770	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2B780	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2B791	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2B850	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2D040	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2D060	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88688-2D180	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88710-20230	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88710-20300	Tube Assy, Airconditioner	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88711-21020	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88711-21060	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88711-21070	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88712-21020	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88712-21060	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88712-21160	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88712-2B820	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88715-20120	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88715-20170	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-21060	Pipe, Cooler Refrigerant Liquid, E	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-2D090	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-2D140	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-2D170	Pipe, Cooler Refrigerant Liquid, E	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-2D180	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-2D181	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-2D470	Pipe, Cooler Refrigerant Liquid, E	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88716-2D490	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88717-21030	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88717-2B160	Pipe, Cooler Refrigerant Suction, B	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88717-2B220	Pipe, Cooler Refrigerant Suction, C	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88717-2B221	Pipe, Cooler Refrigerant Suction, C	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88717-2B230	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88717-2B600	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88718-2B420	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88723-20030	Plate, Caution, No.1	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88733-30040	Label, Cooler Service Caution	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88899-20270	Support Sub-Assy, B	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
88899-20290	Plate, Cover	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-04117	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-04119	BOLT WASHER HEAD	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-14122	O-RING	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90099-32130	Grommet (For Power Take-Off Cable Bracket)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90119-06029	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90119-06186	BOLT	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90119-06420	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90119-06476	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90119-06538	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90119-06553	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90119-06674	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90179-06032	Direct	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90179-06074	Nut(For Suspension Control Oil Cooler)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90929-01311	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
91611-G0612	Bolt	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
91651-40614	Bolt	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
91651-F0625	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
91651-G0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
91651-G0645	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
91652-60630	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)
93315-54008	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1992 - 02.1994] (9211-9402)ET196,ST19#)

Source: Public OEM parts-catalog data
Variants: 1 / 6
Category: 258
Collected: 2026-08-02
