ET196

Toyota CALDINA · 1992 · 4,710 parts · 258 categories

4,710 items

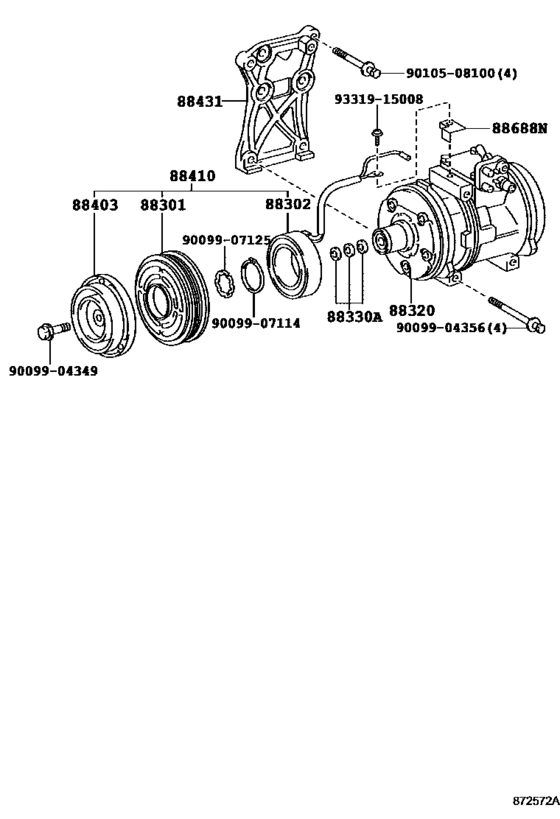

Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196) 21

#	OEM	Part name
88301	88412-12190	Rotor Sub-Assy, Magnet Clutch
88301	88412-2B040	Rotor Sub-Assy, Magnet Clutch
88302	88411-22310	Stator Sub-Assy, Magnet Clutch
88302	88411-2A030	Stator Sub-Assy, Magnet Clutch
88302	88411-02030	Stator Sub-Assy, Magnet Clutch
88302	88411-32080	Stator Sub-Assy, Magnet Clutch
88302	88411-2B090	Stator Sub-Assy, Magnet Clutch
88320	88320-21010	Compressor Assy, Cooler
88320	88320-21030	Compressor Assy, Cooler
88330	88335-14020	Washer
88403	88403-30290	Hub Sub-Assy, Magnet Clutch
88410	88410-21010	Clutch Assy, Magnet
88410	88410-21020	Clutch Assy, Magnet
88431	88431-20310	Bracket, Compressor Mounting, No.1
88688	88688-33260	Bracket, Cooler Compressor
9009904349	90099-04349	Bolt, Magnet Clutch Setting
9009904356	90099-04356	BOLT
9009907114	90099-07114	Ring, Snap (For Magnet Clutch)
9009907125	90099-07125	Ring, Snap
9010508100	90105-08100	BOLT
9331915008	93319-15008	SCREW

OEM	Part name	Category
88320-21010	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88320-21030	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88335-14020	Washer	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88403-30290	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88410-21010	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88410-21020	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88411-02030	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88411-22310	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88411-2A030	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88411-2B090	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88411-32080	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88412-12190	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88412-2B040	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88431-20310	Bracket, Compressor Mounting, No.1	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
88688-33260	Bracket, Cooler Compressor	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
90099-04349	Bolt, Magnet Clutch Setting	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
90099-04356	BOLT	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
90099-07114	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
90099-07125	Ring, Snap	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
90105-08100	BOLT	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
93319-15008	SCREW	Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )ET196)
