Search › Model › ET196

ET196

Toyota CALDINA · 1992 · 4,710 parts · 258 categories
ET196 ×

← Back to categories

4,710 items

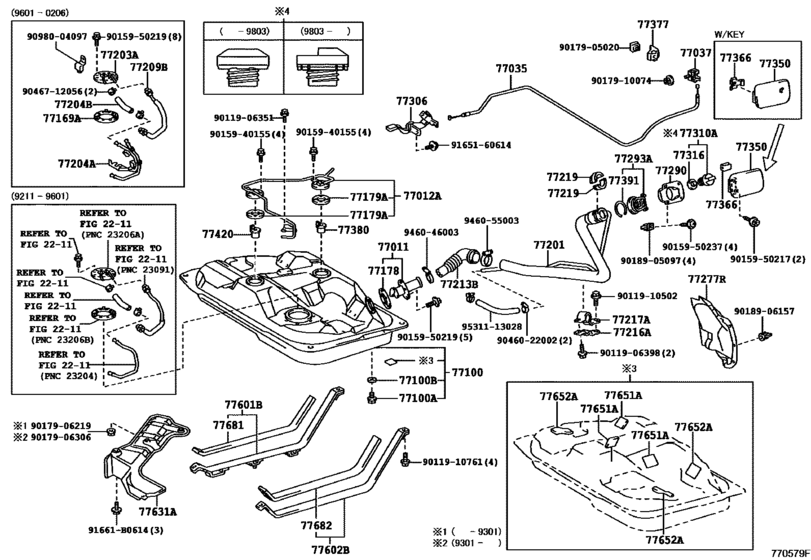

Fuel Tank & Tube ([11.1992 - ] (9211- )ET196) 141
#OEMPart name
77011 77011-12090 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-12070 Tube Sub-Assy, Fuel Tank Breather, No.1
77012 77012-12080 Tube Sub-Assy, Fuel Tank Breather, No.1
77012 77012-12140 Tube Sub-Assy, Fuel Tank Breather, No.1
77035 77035-21020 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-21030 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-20070 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-21901 Tank Assy, Fuel
77100 77001-21902 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77169 77169-12030 Gasket, Fuel Pump Bracket
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-21050 Pipe Sub-Assy, Fuel Tank Inlet
77203 77203-21030 Tube Sub-Assy, Fuel Suction
77204 77204-12020 Tube Sub-Assy, Fuel Pump Return
77204 77204-21060 Tube, Fuel Tank Return
77204 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77204 95337-06020 Hose, Differential Pressure Control
77209 77209-12080 Tube Sub-Assy, Fuel Pump
77209 77209-21030 Tube Sub-Assy, Fuel Pump
77213 77213-13070 Hose, Fuel Tank To Filler Pipe
77216 77216-13030 Support, Fuel Tank Filler Pipe, No.1
77217 77217-13010 Support, Fuel Tank Filler Pipe, No.2
77219 77219-32030 Cover, Fuel Tank Filler Pipe
77251 77251-21080 Tube, Fuel Main
77251 77251-21110 Tube, Fuel Main
77255 77255-21020 Tube, Fuel Return
77255 77255-21050 Tube, Fuel Return
77255 90445-12294 Hose, Fuel, No.2 (For Fuel Return Tube)
77255 90445-12298 Hose, Fuel, No.2 (For Fuel Return Tube)
77255 95334-06055 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77255 95334-06012 Hose, Fuel(For Fuel Pipe To Pressure Regulator)
77255 95334-06040 Hose, Fuel, No.2(For Fuel Main Tube)
77261 77261-21040 Tube, Fuel Tank To Canister
77261 77261-21050 Tube, Fuel Tank To Canister
77261 90445-12267 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266 77266-20120 Protector, Fuel Tube, No.1
77267 77267-21010 Protector, Fuel Tube, No.2
77277 77277-21010 Protector, Fuel Tank Filler Pipe
77285 77285-20080 Clamp, Fuel Tube W/grommet, No.1
77285 77285-20150 Clamp, Fuel Tube W/grommet, No.1
77285 77285-12020 Clamp, Fuel Tube W/grommet, No.1
77285 77285-20140 Clamp, Fuel Tube, No.1
77285 77298-12030 Clamp, Fuel Tube, No.1
77286 77286-20070 Clamp, Fuel Tube W/grommet, No.2
77286 77286-20090 Clamp, Fuel Tube, No.1
77290 77290-20140 Shield Assy, Fuel Tank Filler Pipe
77293 77293-20090 Shield, Fuel Tank Filler Pipe, No.3
77306 77306-14010 Lever Sub-Assy, Fuel Lid Open
77306 77306-21010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-20210 Lid Assy, Fuel Filler Opening
77350 90179-05011 NUT
77350 77350-21020 Lid Assy, Fuel Filler Opening
77350 77360-20030 Spring, Fuel Filler Opening Lid Hinge
77350 77377-20060 Retainer, Fuel Filler Opening Lid Lock
77366 77366-12030 Spring, Fuel Filler Opening Lid Hinge
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-20020 Ring, Fuel Inlet Box
77412 77412-20040 Support, Fuel Tube Grommet, No.2
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77601 77601-21010 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-21010 Band Sub-Assy, Fuel Tank, No.1 Lh
77631 77631-21010 Protector, Fuel Tank, Lower Center
77651 77651-20090 Cushion, Fuel Tank, No.1
77652 77652-12100 Cushion, Fuel Tank, No.1
77681 77681-12010 Seat, Fuel Tank Band
77682 77681-32060 Seat, Fuel Tank Band, Rh
77707 77707-20030 Tube Sub-Assy, Charcoal Canister Outlet
77707 77707-20040 Tube Sub-Assy, Charcoal Canister Outlet
77707 77707-20050 Tube Sub-Assy, Charcoal Canister Outlet
77740 77740-20410 Canister Assy, Charcoal
77740 77751-20310 Bracket, Charcoal Canister Base
77740 77740-20460 Canister Assy, Charcoal
77740 90999-92002 Air Hose (300 mm)
77740 77740-20420 Canister Assy, Charcoal
77740 95333-06040 Hose
77751 77751-20360 Bracket, Charcoal Canister Base
77754 77754-20260 Hose, Charcoal Canister Outlet, No.1
77754 77754-20370 Hose, Charcoal Canister Outlet, No.1
91661 91661-B0614 New Genuine Part
1757874010 17578-74010 Clamp, Pipe
9011906351 90119-06351 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011906720 90119-06720 New Genuine Part
9011906746 90119-06746 New Genuine Part
9011906746 91631-J0612 BRACKET
9011910502 90119-10502 BOLT WWASHER
9011910761 90119-10761 New Genuine Part
9015940155 90159-40155 SCREW WWASHER
9015950217 90159-50217 SCREW WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950237 90159-50237 New Genuine Part
9017905020 90179-05020 NUT
9017906216 90179-06216 Direct
9017906216 90179-06274 Nut
9017906219 90179-06219 Nut
9017906219 90182-A0005 Nut
9017906288 90179-06288 NUT
9017906306 90179-06306 NUT
9017910074 90179-10074 New Genuine Part
9018905097 90189-05097 GROMMET SCREW
9018906157 90189-06157 GROMMET SCREW
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046110791 90461-10791 New Genuine Part
9046400683 90464-00683 New Genuine Part
9046400691 90464-00691 New Genuine Part
9046400712 90464-00712 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713063 90467-13063 New Genuine Part
9048001606 90480-01606 GROMMET
9048001642 90480-01642 New Genuine Part
9090119017 90901-19017 New Genuine Part
9090119017 91621-J0612 BOLT W-WASHER
9091710079 90917-10079 Valve, Check, No.1
9092901316 90929-01316 New Genuine Part
9095901442 90959-01442 CLAMP
9095901448 90959-01448 CLAMP
9098004097 90980-04097 Condenser, Radio Setting
9165160614 91651-60614 Bolt
9165660616 91656-60616 BOLT
9165660616 91651-60616 BOLT
9531113028 95311-13028 Hose, Fuel, No.1(For Fuel Tank)
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
