Search › Model › ET196

ET196

Toyota CALDINA · 1992 · 4,710 parts · 258 categories

4,710 items

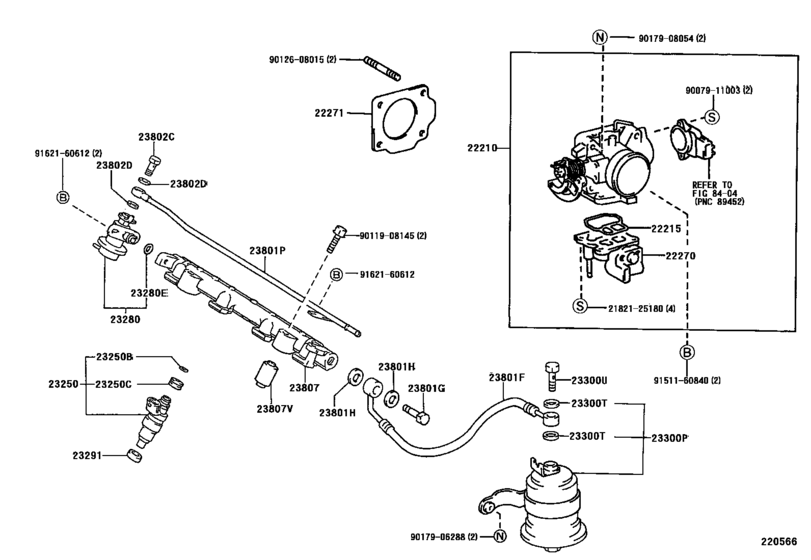

Fuel Injection System ([08.1997 - ] (9708- )5EFE) 45

#	OEM	Part name
22210	22210-11360	Body Assy, Throttle
22210	22210-11590	Body Assy, Throttle
22215	22215-11110	Gasket, Throttle Body Cover
22215	22215-74400	Gasket, Throttle Body Cover
22270	22270-11020	Valve Assy, Idle Speed Control(For Thlottle Body)
22271	22271-11020	Gasket, Throttle Body
22271	22271-11030	Gasket, Throttle Body
23250	23209-11050	Injector Assy, Fuel
23250	23209-11130	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90301-07024	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23280	23280-11040	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23300	23300-19365	Filter, Fuel(For Efi)
23300	23300-19465	Filter, Fuel(For Efi)
23300	90430-12026	Gasket
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)
23801	23271-11060	Hose, Fuel, No.1
23801	23271-11061	Hose, Fuel, No.1
23801	23271-11280	Hose, Fuel, No.1
23801	90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)
23801	90401-12033	Bolt, Union(For Fuel Pipe)
23801	23279-74010	Gasket(For Fuel Pump Hose)
23801	23801-11050	Pipe Sub-Assy, Fuel, No.1
23801	23801-11080	Pipe Sub-Assy, Fuel, No.1
23801	23801-11120	Pipe Sub-Assy, Fuel, No.1
23802	90401-08004	Bolt Union(For Oil Jet)
23802	90401-08010	Bolt, Union(For Fuel Pipe No.2)
23802	90430-08012	Gasket
23802	90430-08014	Gasket(For Oil Filter Outlet Pipe)
23807	23814-11030	Pipe Sub-Assy, Fuel Delivery
23807	23890-11010	Spacer, No.1(For Delivery Pipe)
23807	23891-11020	Spacer, No.1(For Delivery Pipe)
2182125180	21821-25180	Screw, Set, No.2(For Carburetor Body Set)
9007911003	90079-11003	New Genuine Part
9011908145	90119-08145	Bolt(For Front Disc Brake Cylinder)
9012608015	90126-08015	Stud
9017906288	90179-06288	NUT
9017908054	90179-08054	Nut (For Connecting Rod Swivel)
9151160840	91511-60840	Bolt(For Alternator)
9151160840	91511-J0840	Bolt(For Alternator)
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER

OEM	Part name	Category
21821-25180	Screw, Set, No.2(For Carburetor Body Set)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
22210-11360	Body Assy, Throttle	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
22210-11590	Body Assy, Throttle	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
22215-11110	Gasket, Throttle Body Cover	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
22215-74400	Gasket, Throttle Body Cover	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
22270-11020	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
22271-11020	Gasket, Throttle Body	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
22271-11030	Gasket, Throttle Body	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23209-11050	Injector Assy, Fuel	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23209-11130	Injector Assy, Fuel	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23271-11060	Hose, Fuel, No.1	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23271-11061	Hose, Fuel, No.1	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23271-11280	Hose, Fuel, No.1	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23279-74010	Gasket(For Fuel Pump Hose)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23280-11040	Regulator Assy, Fuel Pressure	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23300-19365	Filter, Fuel(For Efi)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23300-19465	Filter, Fuel(For Efi)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23801-11050	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23801-11080	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23801-11120	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23814-11030	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23890-11010	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
23891-11020	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90079-11003	New Genuine Part	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90119-08145	Bolt(For Front Disc Brake Cylinder)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90126-08015	Stud	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90179-06288	NUT	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90179-08054	Nut (For Connecting Rod Swivel)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90301-07024	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90401-08004	Bolt Union(For Oil Jet)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90401-08010	Bolt, Union(For Fuel Pipe No.2)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90401-12029	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90401-12033	Bolt, Union(For Fuel Pipe)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90430-08012	Gasket	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90430-08014	Gasket(For Oil Filter Outlet Pipe)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90430-12026	Gasket	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
91511-60840	Bolt(For Alternator)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
91511-J0840	Bolt(For Alternator)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
91621-60612	BOLTWWASHER	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
91621-J0612	BOLT W-WASHER	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1997 - ] (9708- )5EFE)
