ET176

Toyota CARINA · 1988 · 4,060 parts · 193 categories
ET176 ×

← Back to categories

4,060 items

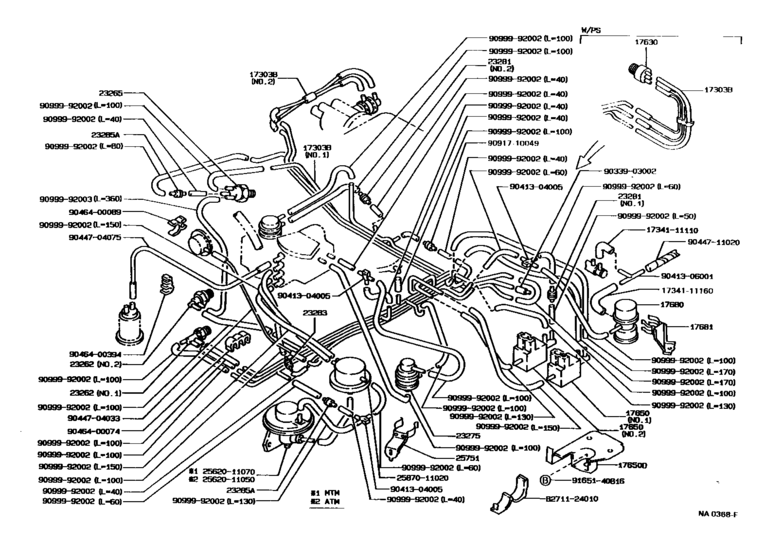

Vacuum Piping ([05.1988 - 10.1989] (8805-8910)3E) 46
#OEMPart name
17303 17303-11310 Pipe Sub-Assy, Air, No.1
17303 17303-11330 Pipe Sub-Assy, Air, No.1
17303 17303-11350 Pipe Sub-Assy, Air, No.1
17303 17303-11510 Pipe Sub-Assy, Air, No.1
17630 17630-28020 Valve Assy, Air Control
17650 90910-12008 Valve Assy, Vacuum Switching
17650 90910-12009 Valve Assy, Vacuum Switching
17650 21999-11011 Bracket, Vacuum Switching Valve
17680 17680-11010 Valve Assy, Mixture Control
17681 17681-11020 Bracket, Mixture Control Valve
23262 25820-11010 Valve, Bimetal Vacuum Switching, No.1
23262 25820-11040 Valve, Bimetal Vacuum Switching, No.1
23262 90925-05076 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11024 Filter, Gas, No.1
23265 90917-11027 Filter, Gas, No.1
23275 90925-03156 Valve, Vacuum Control, No.1
23275 90925-03164 Valve, Vacuum Control, No.1
23281 90925-01021 Valve, Vacuum Transmitting, No.1
23281 90925-01029 Valve, Vacuum Transmitting, No.1
23281 90925-01079 Valve, Vacuum Transmitting, No.1
23281 90925-01041 Valve, Bimetal Vacuum Switching, No.1
23281 90925-01099 Valve, Vacuum Transmitting, No.1
23281 90925-01101 Valve, Vacuum Transmitting, No.1
23281 90925-02084 Valve, Vacuum Transmitting, No.1
23283 90925-01027 Valve, Vacuum Transmitting, No.1
23283 90925-01084 Valve, Vacuum Transmitting, No.1
23285 90917-10049 Valve, Check, No.1
25751 25751-11030 Clamp, Vacuum Control Valve, No.1
1734111110 17341-11110 Hose, No.1(for Air Injection System)
1734111160 17341-11160 Hose, No.1(for Air Injection System)
2562011050 25620-11050 Valve Assy, Egr
2562011070 25620-11070 Valve Assy, Egr
2587011020 25870-11020 Modulator Assy, Egr Vacuum
8271124010 82711-24010 Wire, Fuse To Fuse(for Combustion Heater)
9033903002 90339-03002 PLUG
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041306001 90413-06001 Way, 3(For Fuel Sub-Tank)
9044704033 90447-04033 New Genuine Part
9044704075 90447-04075 Hose, Fuel, No.1(For Charcoal Canister)
9044711020 90447-11020 New Genuine Part
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400089 90464-00089 New Genuine Part
9046400394 90464-00394 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9165140816 91651-40816 BOLT
