ET176

Toyota CARINA · 1988 · 4,060 parts · 193 categories

4,060 items

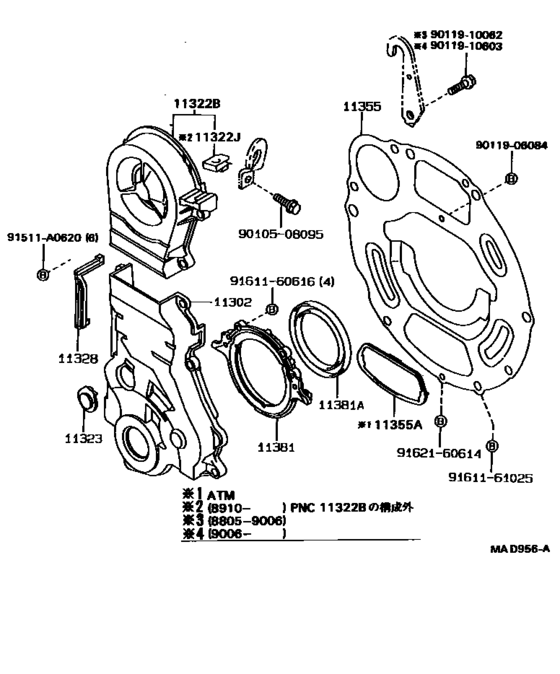

Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E) 23

#	OEM	Part name
11302	11302-11031	Cover Sub-Assy, Timing Chain Or Belt
11322	11303-11020	Cover, Timing Belt, No.2
11322	11303-11021	Cover, Timing Belt, No.2
11322	52565-16020	Retainer(For Timing Belt Cover)
11323	11323-10011	Cover, Timing Belt, No.3
11328	11328-11020	Gasket, Timing Belt Cover, No.1
11355	11355-10011	Plate, Rear End
11355	11355-10012	Plate, Rear End
11381	11381-10020	Retainer, Engine Rear Oil Seal
11381	90311-80007	Seal, Engine Rear Oil
11381	90311-80012	Seal, Engine Rear Oil
91511	91511-A0620	Bolt(For Clutch Release Bearing Hub Retainer)
91511	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9010508095	90105-08095	BOLT
9011906084	90119-06084	Bolt(For Rear Wheel Cylinder)
9011910062	90119-10062	New Genuine Part
9011910062	90119-10640	New Genuine Part
9011910603	90119-10603	New Genuine Part
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
11302-11031	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
11303-11020	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
11303-11021	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
11323-10011	Cover, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
11328-11020	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
11355-10011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
11355-10012	Plate, Rear End	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
11381-10020	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
52565-16020	Retainer(For Timing Belt Cover)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
90105-08095	BOLT	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
90119-06084	Bolt(For Rear Wheel Cylinder)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
90119-10062	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
90119-10603	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
90119-10640	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
90311-80007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
90311-80012	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
91511-A0620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
91611-60616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
91611-61025	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
91611-B0616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
91612-61025	Bolt (For Control Shaft Cover)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
91621-60614	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([05.1988 - ] (8805- )3E)
