ET176

Toyota CARINA · 1988 · 4,060 parts · 193 categories

4,060 items

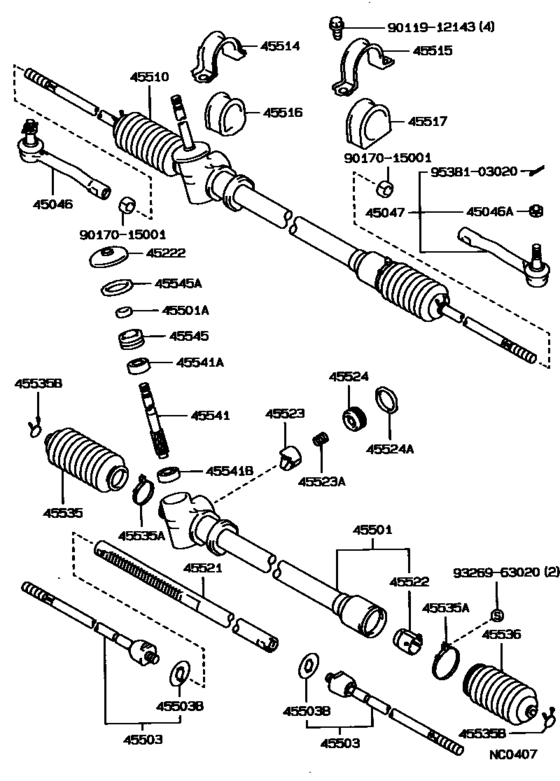

Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV) 47

#	OEM	Part name
45046	45046-29165	End Sub-Assy, Tie Rod, Rh
45046	90171-12028	Nut, Castle(For Pitman Arm)
45047	45047-29045	End Sub-Assy, Tie Rod, Lh
45222	45222-10030	Cover, Steering Gear Dust
45222	45222-32010	Cover, Dust(For Power Steering Gear)
45501	45501-20020	Housing Sub-Assy, Steering Rack
45501	90311-15001	Seal, Oil(For Steering Bevel Gear Housing)
45501	90311-15002	Seal, Oil(For Steering Bevel Gear Housing)
45503	45503-29155	End Sub-Assy, Steering Rack
45503	45503-29165	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45510	45510-20040	Gear Assy, Steering
45514	45514-20040	Bracket, Steering Rack Housing, No.1
45515	45515-20050	Bracket, Steering Rack Housing, No.2
45516	45516-20020	Grommet, Steering Rack Housing, No.1
45517	45517-20040	Grommet, Steering Rack Housing, No.2
45517	45517-20060	Grommet, Steering Rack Housing, No.2
45521	45521-20020	Rack, Steering
45522	45522-17010	Bush, Steering Rack
45522	45522-17020	Bush, Steering Rack
45523	45523-12010	Guide, Rack(For Power Steering)
45523	45523-12040	Guide, Rack(For Steering Gear)
45523	45523-20050	Guide, Rack(For Steering Gear)
45523	90501-23007	Spring(For Power Steering Rack Guide)
45523	90501-26038	Spring(For Power Steering Rack Guide)
45524	45524-16010	Cap(For Power Steering Pinion)
45524	45524-20040	Cap, Rack Guide Spring(For Power Steering)
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-12011	Boot, Steering Rack, No.1
45535	45535-20040	Boot, Steering Rack No.1(For Power Steering)
45535	90460-53002	Clamp(For Power Steering Rack Boot)
45535	90461-10273	Clamp(For Steering Rack Boot)
45535	90949-01082	Clamp(For Power Steering Rack Boot)
45535	90467-18003	Clip Or Clamp(For Ventilation Hose)
45536	45536-12030	Boot, Steering Rack, No.2
45541	45541-20020	Pinion, Steering
45541	90363-15003	Bearing, Radial Ball(For Steering Rack Housing)
45541	90363-15015	Bearing, Radial Ball(For Steering Pinion Upper)
45541	90363-13001	Bearing, Radial Ball(For Steering Rack Housing)
45541	90363-13004	Bearing, Radial Ball(For Steering Pinion Upper)
45545	45545-10010	Screw, Pinion Bearing Adjusting
45545	90179-38001	Nut(For Pinion Bearing Adjusting Screw)
9011912143	90119-12143	New Genuine Part
9011912143	90119-12288	Bolt
9017015001	90170-15001	Nut, Rack End Lock
9326963020	93269-63020	Screw(For Steering Rack Boot Clamp)
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
45046-29165	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45047-29045	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45222-10030	Cover, Steering Gear Dust	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45222-32010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45501-20020	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45503-29155	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45503-29165	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45510-20040	Gear Assy, Steering	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45514-20040	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45515-20050	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45516-20020	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45517-20040	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45517-20060	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45521-20020	Rack, Steering	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45522-17010	Bush, Steering Rack	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45522-17020	Bush, Steering Rack	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45523-12010	Guide, Rack(For Power Steering)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45523-12040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45523-20050	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45524-16010	Cap(For Power Steering Pinion)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45524-20040	Cap, Rack Guide Spring(For Power Steering)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45535-12011	Boot, Steering Rack, No.1	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45535-20040	Boot, Steering Rack No.1(For Power Steering)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45536-12030	Boot, Steering Rack, No.2	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45541-20020	Pinion, Steering	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
45545-10010	Screw, Pinion Bearing Adjusting	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90119-12143	New Genuine Part	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90119-12288	Bolt	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90170-15001	Nut, Rack End Lock	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90179-38001	Nut(For Pinion Bearing Adjusting Screw)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90311-15001	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90311-15002	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90363-13001	Bearing, Radial Ball(For Steering Rack Housing)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90363-13004	Bearing, Radial Ball(For Steering Pinion Upper)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90363-15003	Bearing, Radial Ball(For Steering Rack Housing)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90363-15015	Bearing, Radial Ball(For Steering Pinion Upper)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90460-53002	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90461-10273	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90467-18003	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90501-23007	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90501-26038	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
90949-01082	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
93269-63020	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([05.1988 - 02.1989] (8805-8902)AT170,171,ET176..DX,S,SG,STD,SV ; (89 02- )AT170,CT17#,ET176..DX,SG,ST D,SV)
