Search › Model › ET176

ET176

Toyota CARINA · 1988 · 4,060 parts · 193 categories

4,060 items

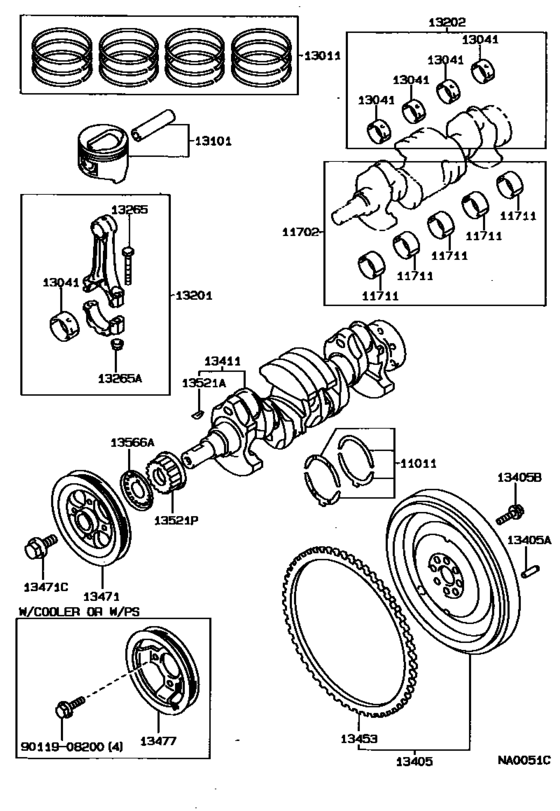

Crankshaft & Piston ([05.1988 - ] (8805- )3E) 68

#	OEM	Part name
11011	11011-11010	Washer Set, Crankshaft Thrust
11011	11011-11020	Washer Set, Crankshaft Thrust
11011	11012-11010	Washer Set, Crankshaft Thrust
11011	11012-11020	Washer Set, Crankshaft Thrust
11702	11704-11010	Bearing Set, Crankshaft
11702	11704-11012	Bearing Set, Crankshaft
11702	11704-11011	Bearing Set, Crankshaft
11711	11701-11010-01	Bearing, Crankshaft
11711	11701-11012-01	Bearing, Crankshaft
11711	11701-11010-02	Bearing, Crankshaft
11711	11701-11012-02	Bearing, Crankshaft
11711	11701-11010-03	Bearing, Crankshaft
11711	11701-11012-03	Bearing, Crankshaft
11711	11701-11010-04	Bearing, Crankshaft
11711	11701-11012-04	Bearing, Crankshaft
11711	11701-11010-05	Bearing, Crankshaft
11711	11701-11012-05	Bearing, Crankshaft
11711	11701-11011	Bearing, Crankshaft
11711	11701-11011-01	Bearing, Crankshaft
11711	11701-11011-02	Bearing, Crankshaft
11711	11701-11011-03	Bearing, Crankshaft
11711	11701-11011-04	Bearing, Crankshaft
11711	11701-11011-05	Bearing, Crankshaft
13011	13011-11090	Ring Set, Piston
13011	13013-11090	Ring Set, Piston
13041	13041-11010-01	Bearing, Connecting Rod
13041	13041-11010-02	Bearing, Connecting Rod
13041	13041-11010-03	Bearing, Connecting Rod
13041	13041-11020-01	Bearing, Connecting Rod
13041	13041-11020-02	Bearing, Connecting Rod
13041	13041-11020-03	Bearing, Connecting Rod
13101	13101-11080-01	Piston Sub-Assy, W/pin
13101	13101-11081-01	Piston Sub-Assy, W/pin
13101	13101-11080-02	Piston Sub-Assy, W/pin
13101	13101-11081-02	Piston Sub-Assy, W/pin
13101	13101-11080-03	Piston Sub-Assy, W/pin
13101	13101-11081-03	Piston Sub-Assy, W/pin
13101	13103-11080	Piston Sub-Assy, W/pin
13101	13103-11081	Piston Sub-Assy, W/pin
13201	13201-19085	Rod Sub-Assy, Connecting
13201	13201-19088	Rod Sub-Assy, Connecting
13201	13201-19086	Rod Sub-Assy, Connecting
13201	13201-19087	Rod Sub-Assy, Connecting
13202	13204-11010	Bearing Set, Connecting Rod
13202	13204-11020	Bearing Set, Connecting Rod
13265	13265-10020	Bolt, Connecting Rod
13265	13265-10022	Bolt, Connecting Rod
13265	13265-10021	Bolt, Connecting Rod
13265	90179-08014	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-11040	Flywheel Sub-Assy
13405	13405-11041	Flywheel Sub-Assy
13405	13405-11051	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90105-10138	Bolt, Flywheel Setting
13411	13401-11040	Crankshaft
13453	13453-10030	Gear, Flywheel Ring
13471	13408-11012	Pulley, Crankshaft
13471	13470-11030	Pulley, Crankshaft
13471	90105-12051	Bolt(For Crankshaft Pulley Set)
13477	88451-12040	Pulley, Crankshaft, No.2
13477	88451-12050	Pulley, Crankshaft, No.2
13521	90280-05005	Key(For Oil Pump Drive Spline)
13521	90280-05010	Key(For Oil Pump Drive Spline)
13521	95161-20519	Key, Crankshaft(For Crankshaft Pulley Set)
13521	13521-11010	Pulley, Crankshaft Timing
13566	13566-10011	Guide, Timing Belt
9011908200	90119-08200	BOLT
9011908200	90105-08112	New Genuine Part

OEM	Part name	Category
11011-11010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11011-11020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11012-11010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11012-11020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11010-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11010-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11010-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11010-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11010-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11011	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11011-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11011-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11011-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11011-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11011-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11012-01	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11012-02	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11012-03	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11012-04	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11701-11012-05	Bearing, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11704-11010	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11704-11011	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
11704-11012	Bearing Set, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13011-11090	Ring Set, Piston	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13013-11090	Ring Set, Piston	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13041-11010-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13041-11010-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13041-11010-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13041-11020-01	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13041-11020-02	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13041-11020-03	Bearing, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13101-11080-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13101-11080-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13101-11080-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13101-11081-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13101-11081-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13101-11081-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13103-11080	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13103-11081	Piston Sub-Assy, W/pin	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13201-19085	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13201-19086	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13201-19087	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13201-19088	Rod Sub-Assy, Connecting	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13204-11010	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13204-11020	Bearing Set, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13265-10020	Bolt, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13265-10021	Bolt, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13265-10022	Bolt, Connecting Rod	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13401-11040	Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13405-11040	Flywheel Sub-Assy	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13405-11041	Flywheel Sub-Assy	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13405-11051	Flywheel Sub-Assy	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13408-11012	Pulley, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13453-10030	Gear, Flywheel Ring	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13470-11030	Pulley, Crankshaft	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13521-11010	Pulley, Crankshaft Timing	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
13566-10011	Guide, Timing Belt	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
88451-12040	Pulley, Crankshaft, No.2	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
88451-12050	Pulley, Crankshaft, No.2	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90105-08112	New Genuine Part	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90105-10138	Bolt, Flywheel Setting	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90105-12051	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90119-08200	BOLT	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90179-08014	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
95161-20519	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([05.1988 - ] (8805- )3E)
