ET176

Toyota CARINA · 1988 · 4,060 parts · 193 categories
ET176 ×

← Back to categories

4,060 items

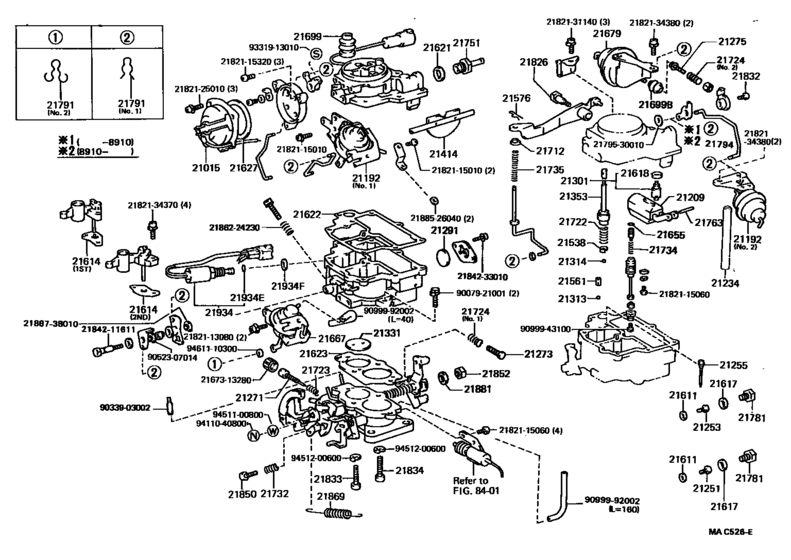

Carburetor ([10.1989 - ] (8910- )3E) 129
#OEMPart name
21015 21015-11611 Housing Sub-Assy, Coil
21192 21192-11610 Breaker
21192 21192-11612 Breaker
21192 21192-11650 Breaker
21209 21209-11090 Float Sub-Assy
21209 21209-13310 Float Sub-Assy
21234 21235-11190 Pipe Or Hose
21234 90079-71001 Pipe Or Hose, Connecting
21251 21251-11340 Jet, 1St Main
21251 21251-11540 Jet, 1St Main
21251 90999-41103 Jet, 1St Main
21253 90999-42168 Jet, 2Nd Main
21255 90999-44148 Jet Sub-Assy, Slow
21255 21205-1E090 Jet Sub-Assy, Slow
21271 21271-13271 Screw, Idle Adjusting
21273 21273-11090 Screw, Throttle Adjusting
21273 21273-24231 Screw, Throttle Adjusting
21275 21275-11630 Screw, Adjusting
21275 21844-33010 Screw, 1St Idle Adjusting
21291 21291-34320 Glass, Level Gage
21301 21301-11620 Valve Sub-Assy, Needle
21301 21301-15250 Valve Sub-Assy, Needle
21301 21301-11140 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21331 21331-24230 Valve, 1St Throttle
21353 21353-11231 Plunger, Pump
21353 21353-11300 Plunger, Pump
21353 21353-11610 Plunger, Pump
21414 21054-11610 Shaft, Choke
21538 21538-31010 Retainer, Ball Check
21561 21561-22010 Weight, Pump Discharge
21576 21576-27010 Clip, Pump Strainer
21611 21611-15250 Gasket, Main Jet
21611 21611-22010 Gasket, Main Jet
21614 21614-13430 Gasket, Venturi
21614 21614-22010 Gasket, Venturi
21614 21614-24580 Gasket, Venturi
21614 21614-24360 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-13430 Gasket, Air Horn
21622 21622-24360 Gasket, Air Horn
21623 21623-11610 Gasket, Body Flange
21623 21623-11611 Gasket, Body Flange
21627 21627-28090 Gasket, Coil Housing
21627 21627-28150 Gasket, Coil Housing
21655 21655-60010 Ring, O(For Lifter Rod)
21655 21655-60200 Gasket, Level Gage
21667 21667-11610 Diaphragm
21667 21667-11611 Diaphragm
21679 21679-11230 Positioner
21679 21679-11650 Positioner
21699 21699-28150 Boot(For Pump Plunger)
21699 21699-11090 Boot(For Compensator)
21699 21699-41010 Boot(For Dash Pot)
21712 21712-38010 Bush, Sliding Rod
21712 21712-61020 Bush, Sliding Rod
21722 21722-22010 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21723 21724-11340 Spring, Idle Adjusting
21724 21723-38010 Spring, Idle Adjusting
21724 21864-24010 Spring, Throttle Adjusting
21732 21726-15251 Spring, 1St Idle Adjusting
21732 21726-38310 Spring, 1St Idle Adjusting
21734 21734-11610 Spring, Power Piston
21735 21735-11150 Spring, Pump Arm
21735 21735-22010 Spring, Pump Arm
21751 21751-10050 Union, Nipple
21751 21894-11590 Union, Nipple
21751 21894-11230 Union, Nipple
21763 21763-38010 Pin, Float Lever
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21781 21781-15461 Plug, Main Passage(For Carburetor Jet)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21794 21794-40070 Ring, Retainer, No.1(For Throttle Shaft)
21826 21826-24470 Screw, Pump Arm Set
21826 21826-31012 Screw, Pump Arm Set
21832 21832-15320 Screw(For Choke Lever Adapter Set)
21833 21833-31012 Screw, Set, No.1(For Carburetor Body Set)
21833 21835-40010 Screw, Set, No.1(For Carburetor Body Set)
21834 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21850 21272-11230 Screw, Throttle Switch Adjusting
21850 21272-71010 Screw, 1St Idle Adjusting
21852 21852-30010 Nut, Throttle Lever Set
21869 21869-11540 Spring(For Main Jet)
21869 21756-15251 Spring, Back(For Throttle Shaft)
21869 21869-11610 Spring(For Main Jet)
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-11380 Solenoid, Throttle Valve
21934 21062-11243 Solenoid, Throttle Valve
21934 21062-11421 Solenoid, Throttle Valve
21934 21062-11424 Solenoid, Throttle Valve
21934 21062-11422 Solenoid, Throttle Valve
21934 21062-11660 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21656-15250 Ring, O(For Solenoid Valve)
21934 21633-15250 Gasket
21934 21649-38010 Gasket
2167313280 21673-13280 Cap, Idle Limit
2179530010 21795-30010 Ring, Retainer, No.2(For High Speed Shaft)
2182113080 21821-13080 Screw, 2nd Throttle Valve Set
2182115010 21821-15010 Screw(For Choke Lever Adapter Set)
2182115060 21821-15060 Screw, 2Nd Throttle Valve Set
2182115320 21821-15320 Screw, 2nd Throttle Valve Set
2182125010 21821-25010 Screw, Coil Housing Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2182134370 21821-34370 Screw, 2nd Throttle Valve Set
2182134380 21821-34380 Screw, 2nd Throttle Valve Set
2184211611 21842-11611 Screw, Set(for Carburetor Level Gage Clamp Set)
2184233010 21842-33010 Screw, Power Piston Stop
2186224230 21862-24230 Nut, Set(for Main Jet Guide)
2188526040 21885-26040 Washer, Idle Adjust Screw
2188738010 21887-38010 New Genuine Part
2188738010 21885-38310 New Genuine Part
9007921001 90079-21001 New Genuine Part
9033903002 90339-03002 PLUG
9052307014 90523-07014 Ring, E(For Reverse Shift Arm)
9099943100 90999-43100 Jet, Power
9099992002 90999-92002 Air Hose (300 mm)
9331913010 93319-13010 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
