Search › Model › EP91

EP91

Toyota STARLET · 1996 · 3,351 parts · 189 categories

3,351 items

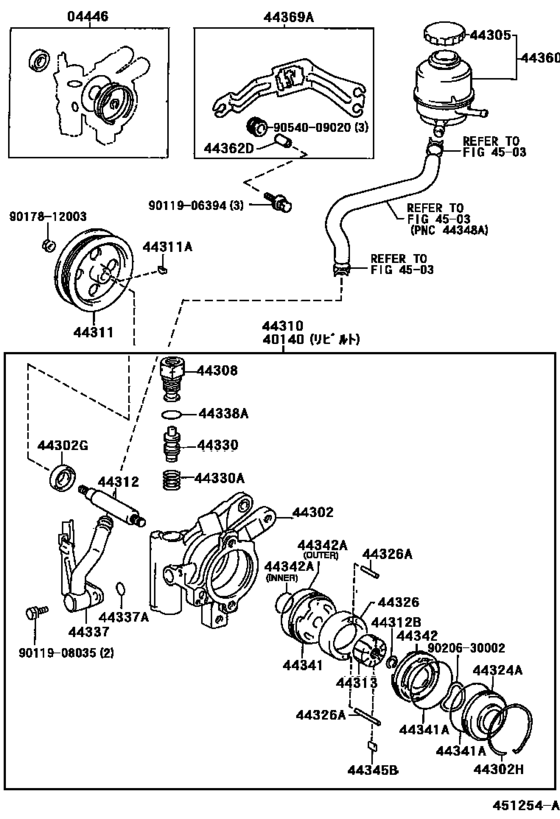

Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX) 57

#	OEM	Part name
4446	04446-10021	Gasket Kit, Power Steering Pump
40140	40140-10111	Pump Assy,vane Rebuilt
40140	44320-10111	Pump Assy, Vane
44302	44302-12120	Housing Sub-Assy, Vane Pump, Front
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44302	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44305	44305-22030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22050	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-18011	Union Sub-Assy, Pressure Port
44311	44311-10030	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44326	44325-12110	Ring, Fixed(For Vane Pump)
44326	44325-12120	Ring, Fixed(For Vane Pump)
44326	44325-12130	Ring, Fixed(For Vane Pump)
44326	44325-12140	Ring, Fixed(For Vane Pump)
44326	44325-12150	Ring, Fixed(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-16071	Valve Assy, Flow Control
44330	44330-16081	Valve Assy, Flow Control
44330	44330-16091	Valve Assy, Flow Control
44330	44330-16101	Valve Assy, Flow Control
44330	44330-16111	Valve Assy, Flow Control
44330	44330-16121	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44337	44337-10060	Union, Power Steering Suction Port
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19013	Seal, Oil, No.1(For Vane Pump Housing)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-52001	Ring, O(For Pump Housing Rear)
44342	44342-32010	Plate, Vane Pump Side, Rear
44342	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44342	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	90301-53006	Ring, O(For Pump Housing Rear)
44342	90301-53007	Ring, O(For Pump Housing Rear)
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-10040	Reservoir Assy, Vane Pump Oil
44362	90560-06014	Spacer(For Vane Pump Oil Reservoir)
44369	44369-16010	Bracket, Oil Reservoir, No.1
9011906394	90119-06394	BOLT WWASHER
9011908035	90119-08035	New Genuine Part
9017812003	90178-12003	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9054009020	90540-09020	Cushion(For Vane Pump Oil Reservoir)

OEM	Part name	Category
04446-10021	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
40140-10111	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44302-12120	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44305-22030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44305-22050	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44308-18011	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44311-10030	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44320-10111	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44330-16071	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44330-16081	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44330-16091	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44330-16101	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44330-16111	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44330-16121	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44337-10060	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44360-10040	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
44369-16010	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90119-06394	BOLT WWASHER	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-19013	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-53006	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90301-53007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90540-09020	Cushion(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)
90560-06014	Spacer(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([10.1998 - ] (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS, RFL,RFLF,RFLX ; (9712- )3D..CARA T ; (9810- )RE MIX)

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 189
Collected: 2026-08-04
