EP76

Toyota STARLET · 1984 · 4,588 parts · 264 categories

4,588 items

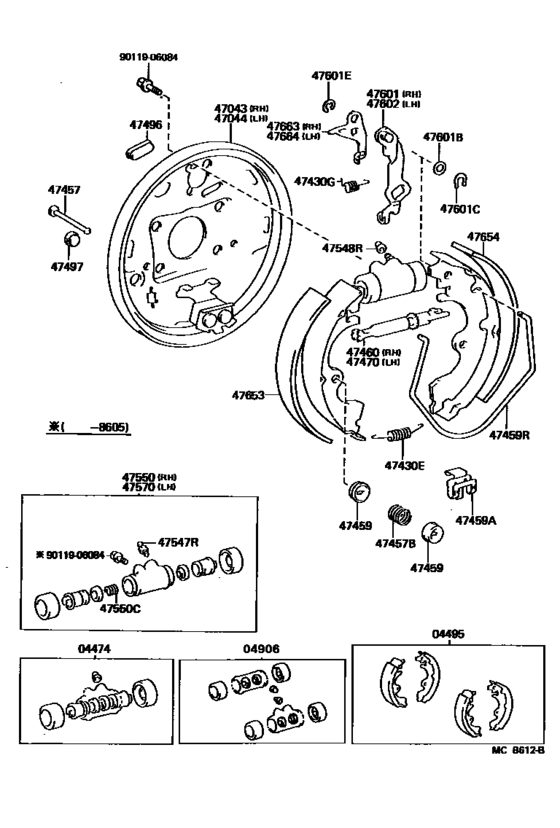

Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- )) 51

#	OEM	Part name
4474	04474-16020	Cylinder Kit, Rear Wheel
4495	04495-10070	Shoe Kit, Rear Brake
4495	04495-10073	Shoe Kit, Rear Brake
4495	04495-10080	Shoe Kit, Rear Brake
4495	04497-10070	Shoe Kit, Rear Brake
4495	04497-10071	Shoe Kit, Rear Brake
4495	04497-10080	Shoe Kit, Rear Brake
4906	04906-16020	Cup Kit, Rear Wheel Cylinder
47043	47043-10040	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-10050	Plate Sub-Assy, Brake Backing, Rear Rh
47044	47044-10040	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-10050	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90506-18014	Spring, Tension(For Rear Brake Shoe Return)
47430	90507-12020	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47457	47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)
47457	90501-14086	Spring, Compression(For Rear Shoe Hold Down Spring Pin)
47459	47449-30030	Cup, Brake Shoe Hold Down
47459	90468-05063	Clamp(For Shoe Return Spring)
47459	47459-16020	Spring, Shoe Return(For Rear Brake)
47460	47061-10020	Strut Set, Parking Brake Shoe, Rh
47460	47061-16020	Strut Set, Parking Brake Shoe, Rh
47460	47061-16030	Strut Set, Parking Brake Shoe, Rh
47470	47062-10020	Strut Set, Parking Brake Shoe, Lh
47470	47062-16020	Strut Set, Parking Brake Shoe, Lh
47470	47062-16030	Strut Set, Parking Brake Shoe, Lh
47496	47491-20011	Plug, Hole(For Rear Brake)
47497	47492-32010	Plug, Shoe Inspection(For Rear Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47550	47550-16030	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-20120	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-19155	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	90501-07006	Spring, Compression(For Rear Wheel Brake Cylinder)
47550	90029-60014	Spring, Compression(For Rear Wheel Brake Cylinder)
47570	47570-16010	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-20030	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-19035	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47601	47601-10010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90564-08150	Shim, Rear Parking Brake Shoe Lever
47601	90564-08151	Shim, Rear Parking Brake Shoe Lever
47601	90564-08152	Shim, Rear Parking Brake Shoe Lever
47601	90564-08172	Shim, Rear Parking Brake Shoe Lever
47601	90564-08173	Shim, Rear Parking Brake Shoe Lever
47601	90564-08174	Shim, Rear Parking Brake Shoe Lever
47601	90213-06013	Washer, Type C(For Parking Brake Shoe)
47601	96160-00600	Ring, E(For Clutch Pedal Pawl)
47602	47602-10010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47653	47651-10060	Lining, Rear Brake Shoe(For Front Or Upper)
47663	47643-10020	Lever, Rear Brake Automatic Adjust, Rh
47664	47644-10020	Lever, Rear Brake Automatic Adjust, Lh
9011906084	90119-06084	Bolt(For Rear Wheel Cylinder)

OEM	Part name	Category
04474-16020	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
04495-10070	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
04495-10073	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
04495-10080	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
04497-10070	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
04497-10071	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
04497-10080	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
04906-16020	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47043-10040	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47043-10050	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47044-10040	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47044-10050	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47061-10020	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47061-16020	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47061-16030	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47062-10020	Strut Set, Parking Brake Shoe, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47062-16020	Strut Set, Parking Brake Shoe, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47062-16030	Strut Set, Parking Brake Shoe, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47447-30020	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47449-30030	Cup, Brake Shoe Hold Down	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47459-16020	Spring, Shoe Return(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47491-20011	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47492-32010	Plug, Shoe Inspection(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47550-16030	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47550-19155	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47550-20120	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47570-16010	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47570-19035	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47570-20030	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47601-10010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47602-10010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47643-10020	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47644-10020	Lever, Rear Brake Automatic Adjust, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
47651-10060	Lining, Rear Brake Shoe(For Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90029-60014	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90119-06084	Bolt(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90213-06013	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90468-05063	Clamp(For Shoe Return Spring)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90501-07006	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90501-14086	Spring, Compression(For Rear Shoe Hold Down Spring Pin)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90506-18014	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90507-12020	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90564-08150	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90564-08151	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90564-08152	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90564-08172	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90564-08173	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
90564-08174	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
96160-00600	Ring, E(For Clutch Pedal Pawl)	Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1984 - ] (8410- ))
