Search › Model › EP76

EP76

Toyota STARLET · 1984 · 4,588 parts · 264 categories

4,588 items

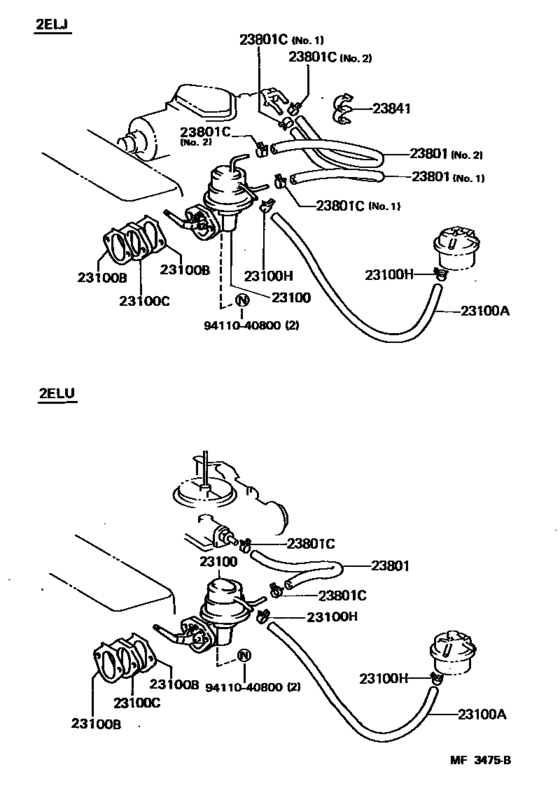

Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#) 25

#	OEM	Part name
23100	23100-11040	Pump Assy, Fuel
23100	23100-11041	Pump Assy, Fuel
23100	95332-06040	Hose(For Valve To Timing Gear)
23100	95333-06040	Hose
23100	95333-06036	Hose, Fuel
23100	90923-05017	Gasket, Fuel Pump(For Cylinder Block Plate Plug)
23100	90923-05024	Gasket, Fuel Pump(For Cylinder Block Plate Plug)
23100	23915-10020	Insulator, Fuel Pump
23100	23915-10021	Insulator, Fuel Pump
23100	96132-30600	Clip(For Actuator Hose)
23100	96132-51100	Clip (For Hose)
23801	95332-04030	Hose, No.2(For Lpg Regulator To Lpg Carburetor)
23801	95333-04030	Hose, No.2(For Lpg Regulator To Lpg Carburetor)
23801	95332-06030	Hose(For Carburetor)
23801	95333-06030	Hose, Fuel
23801	95333-04024	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801	95333-06022	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
23801	90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)
23801	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
23801	90467-11049	Clamp Or Clip, Hose(For Water By-Pass Hose)
23801	96132-30400	Clip Or Clamp(For Ventilation Hose)
23801	96132-51000	Clip Or Clamp(For Ventilation Hose)
23841	90464-00231	Clamp, Fuel Pipe(Hose), No.1
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)

OEM	Part name	Category
23100-11040	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
23100-11041	Pump Assy, Fuel	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
23915-10020	Insulator, Fuel Pump	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
23915-10021	Insulator, Fuel Pump	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
90464-00231	Clamp, Fuel Pipe(Hose), No.1	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
90467-11049	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
90923-05017	Gasket, Fuel Pump(For Cylinder Block Plate Plug)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
90923-05024	Gasket, Fuel Pump(For Cylinder Block Plate Plug)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
94110-40800	Nut(For Steering Damper)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95332-04030	Hose, No.2(For Lpg Regulator To Lpg Carburetor)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95332-06030	Hose(For Carburetor)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95332-06040	Hose(For Valve To Timing Gear)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95333-04024	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95333-04030	Hose, No.2(For Lpg Regulator To Lpg Carburetor)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95333-06022	Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95333-06030	Hose, Fuel	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95333-06036	Hose, Fuel	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
95333-06040	Hose	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
96132-30600	Clip(For Actuator Hose)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
96132-51100	Clip (For Hose)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Pump & Pipe ([10.1984 - ] (8410- )2EL#)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 264
Collected: 2026-08-04
