Search › Model › EP70

EP70

Toyota STARLET · 1984 · 4,359 parts · 185 categories

4,359 items

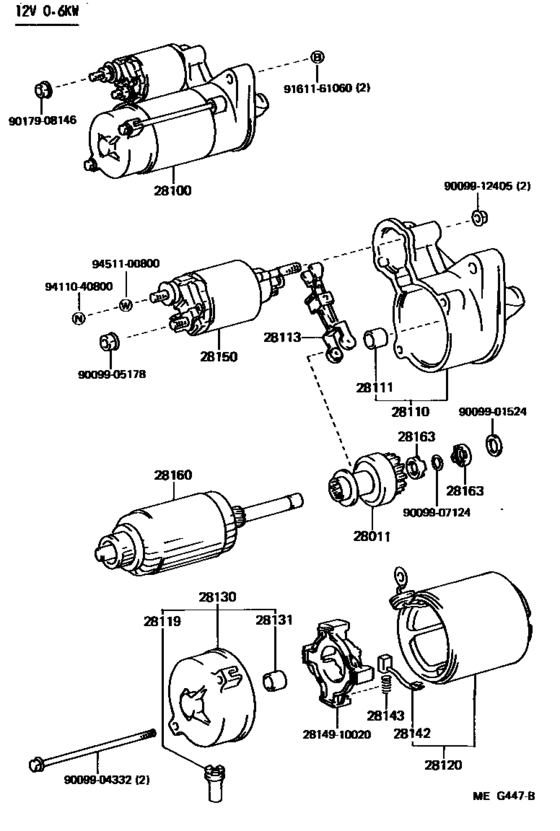

Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL) 45

#	OEM	Part name
28011	28011-10020	Clutch Sub-Assy, Starter
28011	28011-10030	Clutch Sub-Assy, Starter
28100	28100-10020	Starter Assy
28100	28100-11010	Starter Assy
28100	28100-10021	Starter Assy
28100	28100-10030	Starter Assy
28110	28110-10020	Housing Assy, Starter Drive
28110	28110-10030	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28111	90099-10171	Bearing(For Starter Housing)
28111	90099-10158	Bush(For Starter Housing)
28113	28113-10020	Lever, Starter Pinion Drive
28113	28113-15011	Lever, Starter Pinion Drive
28119	28199-15090	Cover, Starter End Frame
28119	28199-77090	Cover, Starter End Frame
28120	28120-10020	Yoke Assy, Starter
28120	28120-15010	Yoke Assy, Starter
28130	28130-10020	Frame Assy, Starter Commutator End
28130	28130-37010	Frame Assy, Starter Commutator End
28131	90099-10134	Bearing, Starter Flange
28131	90099-10157	Bearing, Starter Flange
28142	28142-10020	Brush, Starter
28143	28143-10020	Spring, Starter Brush
28150	28150-10020	Switch Assy, Magnet Starter
28150	28150-10021	Switch Assy, Magnet Starter
28150	28150-37010	Switch Assy, Magnet Starter
28150	28150-37011	Switch Assy, Magnet Starter
28160	28160-10020	Armature Assy, Starter
28160	28160-15010	Armature Assy, Starter
28163	28163-10020	Nut Or Collar, Pinion Stop, Starter
28163	28163-10021	Nut Or Collar, Pinion Stop, Starter
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
2814910020	28149-10020	Holder, Starter Brush
9009901524	90099-01524	New Genuine Part
9009904332	90099-04332	New Genuine Part
9009905178	90099-05178	New Genuine Part
9009907124	90099-07124	Bearing(For Starter Housing)
9009912405	90099-12405	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161161060	91611-61060	Bolt(for Clutch Release Cylinder Setting)
9161161060	91612-61060	Bolt(for Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-10020	Clutch Sub-Assy, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28011-10030	Clutch Sub-Assy, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28100-10020	Starter Assy	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28100-10021	Starter Assy	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28100-10030	Starter Assy	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28100-11010	Starter Assy	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28110-10020	Housing Assy, Starter Drive	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28110-10030	Housing Assy, Starter Drive	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28111-51011	Bush(For Starter Housing)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28113-10020	Lever, Starter Pinion Drive	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28113-15011	Lever, Starter Pinion Drive	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28120-10020	Yoke Assy, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28120-15010	Yoke Assy, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28130-10020	Frame Assy, Starter Commutator End	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28130-37010	Frame Assy, Starter Commutator End	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28142-10020	Brush, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28143-10020	Spring, Starter Brush	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28149-10020	Holder, Starter Brush	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28150-10020	Switch Assy, Magnet Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28150-10021	Switch Assy, Magnet Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28150-37010	Switch Assy, Magnet Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28150-37011	Switch Assy, Magnet Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28160-10020	Armature Assy, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28160-15010	Armature Assy, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28163-10020	Nut Or Collar, Pinion Stop, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28163-10021	Nut Or Collar, Pinion Stop, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28199-15090	Cover, Starter End Frame	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
28199-77090	Cover, Starter End Frame	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-01524	New Genuine Part	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-04332	New Genuine Part	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-05178	New Genuine Part	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-07124	Bearing(For Starter Housing)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-10134	Bearing, Starter Flange	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-10157	Bearing, Starter Flange	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-10158	Bush(For Starter Housing)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-10171	Bearing(For Starter Housing)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90099-12405	New Genuine Part	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90179-08146	Nut	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
90179-08204	Nut	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
91611-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
94110-40800	Nut(For Steering Damper)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
94511-00800	WASHERSPRING	Starter ([08.1985 - ] 12V 0.6KW (8508- )1EL)
