Search › Model › EL55
EL55

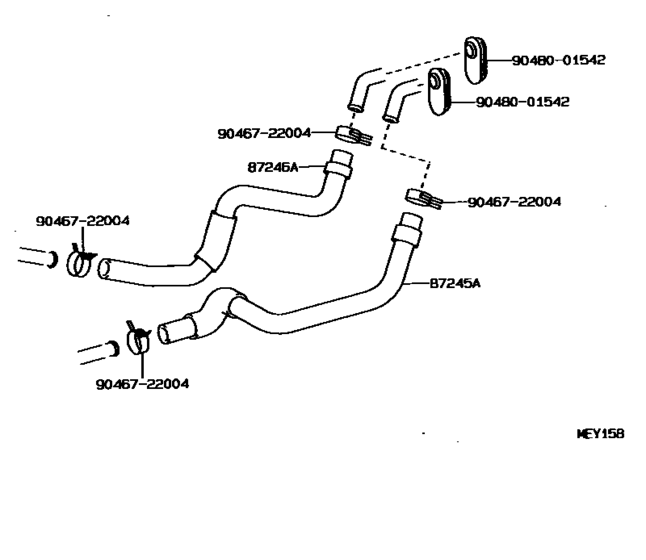

Heating & Air Conditioning - Water Piping ([09.1994 - ] (9409- )) 6
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-16380 | Hose, Heater Water, Inlet A |
| 87245 | 87245-16381 | Hose, Heater Water, Inlet A |
| 87246 | 87245-16390 | Hose, Heater Water, Outlet A |
| 9046722004 | 90467-22004 | Clip(For Ventilation Hose No.2) |
| 9046722004 | 90467-21010 | Clip(For Ventilation Hose No.2) |
| 9048001542 | 90480-01542 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 87245-16380 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([09.1994 - ] (9409- )) |
| 87245-16381 | Hose, Heater Water, Inlet A | Heating & Air Conditioning - Water Piping ([09.1994 - ] (9409- )) |
| 87245-16390 | Hose, Heater Water, Outlet A | Heating & Air Conditioning - Water Piping ([09.1994 - ] (9409- )) |
| 90467-21010 | Clip(For Ventilation Hose No.2) | Heating & Air Conditioning - Water Piping ([09.1994 - ] (9409- )) |
| 90467-22004 | Clip(For Ventilation Hose No.2) | Heating & Air Conditioning - Water Piping ([09.1994 - ] (9409- )) |
| 90480-01542 | New Genuine Part | Heating & Air Conditioning - Water Piping ([09.1994 - ] (9409- )) |
