Search › Model › EL55

EL55

Toyota COROLLA · 1994 · 4,699 parts · 204 categories

4,699 items

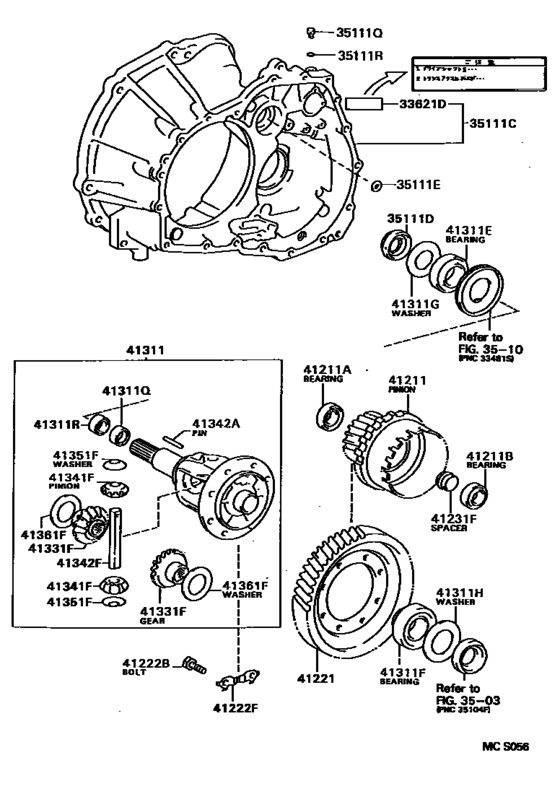

Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC) 49

#	OEM	Part name
33621	33621-16060	Label, Transaxle Oil Information
35111	35105-16021	Housing, Transaxle
35111	90311-54004	Seal, Oil, No.2(For Transaxle Case)
35111	90210-13002	Washer, Seal (For Front Transaxle Housing)
35111	90341-08001	Plug, Transaxle Case, No.1
35111	90301-06196	O Ring, Transaxle Case, No.1
41211	41206-12010	Pinion, Differential Drive
41211	90366-30019	Bearing (For Rear Drive Pinion Rear)
41211	90366-30020	Bearing (For Rear Drive Pinion Rear)
41221	41221-12190	Gear, Front Differential Ring
41222	90101-11353	Bolt (For Rear Differential Ring Gear Set)
41222	41222-12050	Plate, Rear Differential Ring Gear Set Bolt Lock
41231	41231-17010	Spacer, Rear Differential Drive Pinion Bearing
41311	41301-16050	Case, Front Differential
41311	90366-55045	Bearing(For Ring Gear Mounting Case)
41311	90368-38010	Bearing(For Rear Differential Case)
41311	90201-58001	Washer, Plate (For Front Differential Case Front)
41311	90201-41024	Washer, Plate (For Front Differential Case Front)
41311	90201-41025	Washer, Plate (For Front Differential Case Rear)
41311	90201-41026	Washer, Plate (For Front Differential Case Rear)
41311	90201-41027	Washer, Plate (For Front Differential Case Rear)
41311	90201-41028	Washer, Plate (For Front Differential Case Rear)
41311	90201-41029	Washer, Plate (For Front Differential Case Rear)
41311	90201-41030	Washer, Plate (For Front Differential Case Rear)
41311	90201-41031	Washer, Plate (For Front Differential Case Rear)
41311	90201-41032	Washer, Plate (For Front Differential Case Rear)
41311	90201-41033	Washer, Plate (For Front Differential Case Rear)
41311	90201-41034	Washer, Plate (For Front Differential Case Rear)
41311	90201-41035	Washer, Plate (For Front Differential Case Rear)
41311	90201-41036	Washer, Plate (For Front Differential Case Rear)
41311	90201-41039	Washer, Plate (For Front Differential Case Rear)
41311	90201-41040	Washer, Plate (For Front Differential Case Rear)
41311	90201-41041	Washer, Plate (For Front Differential Case Rear)
41311	90201-41042	Washer, Plate (For Front Differential Case Rear)
41311	90201-41043	Washer, Plate (For Front Differential Case Rear)
41311	90201-41044	Washer, Plate (For Front Differential Case Rear)
41311	90364-33010	Bearing, Needle Roller (For Transfer Output Shaft Front)
41311	90316-33001	Seal, Oil (For Front Differential Case)
41331	41331-12011	Gear, Rear Differential Side
41341	41341-12030	Pinion, Rear Differential
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41342	41342-12140	Shaft, Front Differential Pinion, No.1
41351	41351-12020	Washer, Rear Differential Pinion Thrust
41361	41361-17010	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17050	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-17060	Washer, Rear Differential Side Gear Thrust, No.1

OEM	Part name	Category
33621-16060	Label, Transaxle Oil Information	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
35105-16021	Housing, Transaxle	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41206-12010	Pinion, Differential Drive	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41221-12190	Gear, Front Differential Ring	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41222-12050	Plate, Rear Differential Ring Gear Set Bolt Lock	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41231-17010	Spacer, Rear Differential Drive Pinion Bearing	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41301-16050	Case, Front Differential	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41331-12011	Gear, Rear Differential Side	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41341-12030	Pinion, Rear Differential	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41342-12140	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41351-12020	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41361-17010	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41361-17020	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41361-17030	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41361-17040	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41361-17050	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
41361-17060	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90101-11353	Bolt (For Rear Differential Ring Gear Set)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41024	Washer, Plate (For Front Differential Case Front)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41025	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41026	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41027	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41028	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41029	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41030	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41031	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41032	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41033	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41034	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41035	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41036	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41039	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41040	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41041	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41042	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41043	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-41044	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90201-58001	Washer, Plate (For Front Differential Case Front)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90210-13002	Washer, Seal (For Front Transaxle Housing)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90250-06058	Pin, Straight(For Timing Gear Case)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90301-06196	O Ring, Transaxle Case, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90311-54004	Seal, Oil, No.2(For Transaxle Case)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90316-33001	Seal, Oil (For Front Differential Case)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90341-08001	Plug, Transaxle Case, No.1	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90364-33010	Bearing, Needle Roller (For Transfer Output Shaft Front)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90366-30019	Bearing (For Rear Drive Pinion Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90366-30020	Bearing (For Rear Drive Pinion Rear)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90366-55045	Bearing(For Ring Gear Mounting Case)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)
90368-38010	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([09.1994 - ] A244F (9409- )EL55..4FC)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 204
Collected: 2026-08-02
