EL55

Toyota COROLLA · 1994 · 4,699 parts · 204 categories

4,699 items

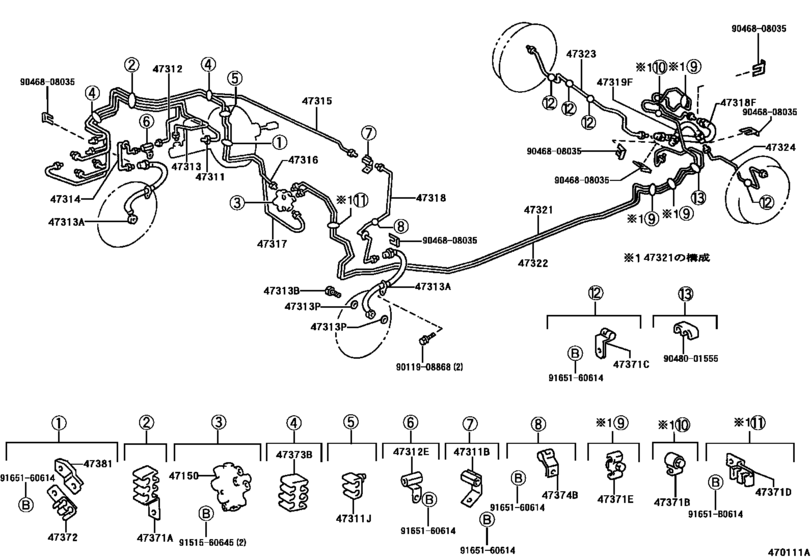

Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55) 56

#	OEM	Part name
47150	47150-12050	Valve Assy, Proportioning
47150	47150-12230	Valve Assy, Proportioning
47150	47150-20250	Valve Assy, Proportioning
47311	47311-10180	Tube, Front Brake, No.1
47311	47311-16170	Tube, Front Brake, No.1
47311	47311-16230	Tube, Front Brake, No.1
47311	90412-10168	Way, No.1(For Front Brake Tube)
47311	90413-10259	Way, No.1(For Front Brake Tube)
47311	90904-12060	Way, No.1(For Front Brake Tube)
47311	90949-01972	Grommet, No.1(For Front Brake Tube)
47312	47312-16140	Tube, Front Brake, No.2
47312	47312-16150	Tube, Front Brake, No.2
47312	47312-16200	Tube, Front Brake, No.2
47312	90412-10169	Way, No.1(For Front Brake Tube)
47313	47313-16140	Tube, Front Brake, No.3
47313	47313-16170	Tube, Front Brake, No.3
47313	47313-16220	Tube, Front Brake, No.3
47313	90947-02813	Hose, Flexible, No.1(For Front)
47313	90947-02814	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-10230	Tube, Front Brake, No.4
47314	47314-16090	Tube, Front Brake, No.4
47315	47315-16120	Tube, Front Brake, No.5
47315	47315-16140	Tube, Front Brake, No.5
47315	47315-16190	Tube, Front Brake, No.5
47316	47316-16040	Tube, Front Brake, No.6
47316	47316-16090	Tube, Front Brake, No.6
47317	47317-16040	Tube, Front Brake, No.7
47317	47317-16090	Tube, Front Brake, No.7
47318	47318-16030	Tube, Front Brake, No.8
47318	90947-02796	Hose, Flexible(For Rear Rh)
47319	90947-02797	Hose, Flexible(For Rear Lh)
47321	47321-16130	Tube, Rear Brake, No.1
47322	47322-16120	Tube, Rear Brake, No.2
47323	47323-16190	Tube, Rear Brake, No.3
47324	47324-16180	Tube, Rear Brake, No.4
47371	47371-16060	Clamp, Brake Tube, No.1
47371	90461-06221	Clamp, Brake Tube, No.1
47371	47371-10100	Clamp, Brake Tube, No.6
47371	90461-10763	Clamp, Exhaust Pipe
47371	47371-30010	Clamp, Brake Tube, No.1
47371	47371-10050	Clamp, Brake Tube, No.6
47372	47371-10150	Clamp, Brake Tube, No.2
47372	90461-10738	Clamp, Brake Tube, No.2
47373	90949-01207	Clamp, Brake Tube, No.6
47373	90949-01969	Clamp, Brake Tube, No.6
47373	90080-46365	Clamp, Brake Tube, No.5
47381	47381-10040	Bracket, Brake Tube Clamp No.1
91651	91651-B0614	BOLT WWASHER
9011908868	90119-08868	BOLT WWASHER
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001555	90480-01555	Grommet(For Front Brake Tube)
9151560645	91515-60645	New Genuine Part
9165160614	91651-60614	Bolt

OEM	Part name	Category
47150-12050	Valve Assy, Proportioning	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47150-12230	Valve Assy, Proportioning	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47150-20250	Valve Assy, Proportioning	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47311-10180	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47311-16170	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47311-16230	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47312-16140	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47312-16150	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47312-16200	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47313-16140	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47313-16170	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47313-16220	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47314-10230	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47314-16090	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47315-16120	Tube, Front Brake, No.5	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47315-16140	Tube, Front Brake, No.5	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47315-16190	Tube, Front Brake, No.5	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47316-16040	Tube, Front Brake, No.6	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47316-16090	Tube, Front Brake, No.6	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47317-16040	Tube, Front Brake, No.7	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47317-16090	Tube, Front Brake, No.7	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47318-16030	Tube, Front Brake, No.8	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47321-16130	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47322-16120	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47323-16190	Tube, Rear Brake, No.3	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47324-16180	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47371-10050	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47371-10100	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47371-10150	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47371-16060	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47371-30010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
47381-10040	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90080-46365	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90412-10168	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90412-10169	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90413-10259	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90461-06221	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90461-10738	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90461-10763	Clamp, Exhaust Pipe	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90468-08035	CLIP	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90480-01555	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90904-12060	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90947-02796	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90947-02797	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90947-02813	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90947-02814	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90949-01207	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90949-01969	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
90949-01972	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
91515-60645	New Genuine Part	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
91651-60614	Bolt	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
91651-B0614	BOLT WWASHER	Brake Tube & Clamp ([09.1994 - ] ｱﾘ(ABS) (9409- )EL55)
