Search › Model › EL52

EL52

Toyota CYNOS · 1995 · 3,099 parts · 174 categories

3,099 items

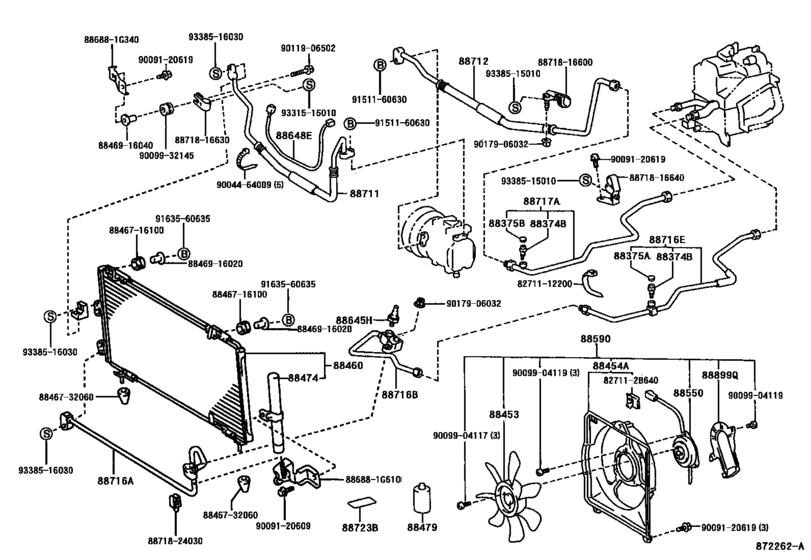

Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT) 52

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88453	88453-20080	Fan, Rh
88454	88454-16140	Shroud, Fan
88460	88460-16500	Condenser Assy, Cooler
88474	88474-47010	Dryer, Cooler
88479	90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550	16363-74180	Motor, Cooling Fan
88590	88590-16070	Blower Assy, W/shroud
88645	88645-20050	Switch, Pressure
88648	88648-16280	Wiring, Cooler
88711	88711-16430	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-16460	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-16520	Hose, Cooler Refrigerant Suction, No.1
88712	88712-16530	Hose, Cooler Refrigerant Suction, No.1
88716	88716-1G430	Pipe, Cooler Refrigerant Liquid, A
88716	88716-1G260	Pipe, Cooler Refrigerant Liquid, B
88716	88716-1G250	Pipe, Cooler Refrigerant Liquid, E
88716	88716-1G270	Pipe, Cooler Refrigerant Liquid, E
88717	88717-16230	Pipe, Cooler Refrigerant Suction, A
88723	88723-20030	Plate, Caution, No.1
88723	88733-30040	Label, Cooler Service Caution
88899	88899-16020	Plate, Cover
827112	82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)
886881	88688-1G340	Bracket, Cooler Diaphragm
886881	88688-1G610	Bracket, Cooler Diaphragm
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8846716100	88467-16100	Cushion, Cooler Condenser, No.1
8846732060	88467-32060	Cushion, Cooler Condenser, No.1
8846916020	88469-16020	Insulator, Cooler Condenser Mounting
8846916040	88469-16040	Insulator, Cooler Condenser Mounting
8871816600	88718-16600	Pipe, Cooler Refrigerant Suction, No.2
8871816630	88718-16630	Pipe, Cooler Refrigerant Suction, No.2
8871816640	88718-16640	Pipe, Cooler Refrigerant Suction, No.2
8871824030	88718-24030	Clamp(For Cooler Refrigerant Pipe), No.2
9004464009	90044-64009	CLAMP
9009120609	90091-20609	BOLT
9009120619	90091-20619	BOLT
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9009932145	90099-32145	New Genuine Part
9011906502	90119-06502	New Genuine Part
9011906502	90119-06330	Bolt
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9151160630	91511-60630	BOLT
9163560635	91635-60635	BOLT WWASHER
9163560635	91631-B0630	BOLT WWASHER
9331515010	93315-15010	New Genuine Part
9338515010	93385-15010	Screw(For Steering Tilt Lever)
9338516030	93385-16030	Lever, Cooler Control, No.1

OEM	Part name	Category
16363-74180	Motor, Cooling Fan	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88453-20080	Fan, Rh	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88454-16140	Shroud, Fan	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88460-16500	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88467-16100	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88467-32060	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88469-16020	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88469-16040	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88474-47010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88590-16070	Blower Assy, W/shroud	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88645-20050	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88648-16280	Wiring, Cooler	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88688-1G340	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88688-1G610	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88711-16430	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88711-16460	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88712-16520	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88712-16530	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88716-1G250	Pipe, Cooler Refrigerant Liquid, E	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88716-1G260	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88716-1G270	Pipe, Cooler Refrigerant Liquid, E	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88716-1G430	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88717-16230	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88718-16600	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88718-16630	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88718-16640	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88718-24030	Clamp(For Cooler Refrigerant Pipe), No.2	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88723-20030	Plate, Caution, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88733-30040	Label, Cooler Service Caution	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
88899-16020	Plate, Cover	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90044-64009	CLAMP	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90091-20609	BOLT	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90091-20619	BOLT	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90099-04117	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90099-04119	BOLT WASHER HEAD	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90099-32145	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90119-06330	Bolt	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90119-06502	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90179-06032	Direct	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
91511-60630	BOLT	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
91631-B0630	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
91635-60635	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
93315-15010	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
93385-15010	Screw(For Steering Tilt Lever)	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
93385-16030	Lever, Cooler Control, No.1	Heating & Air Conditioning - Cooler Piping ([02.1998 - ] (9712- )EL52..CP ; (9802- )EL52..CVT)
