Search › Model › EL50

EL50

Toyota TERCEL · 1994 · 4,447 parts · 195 categories

4,447 items

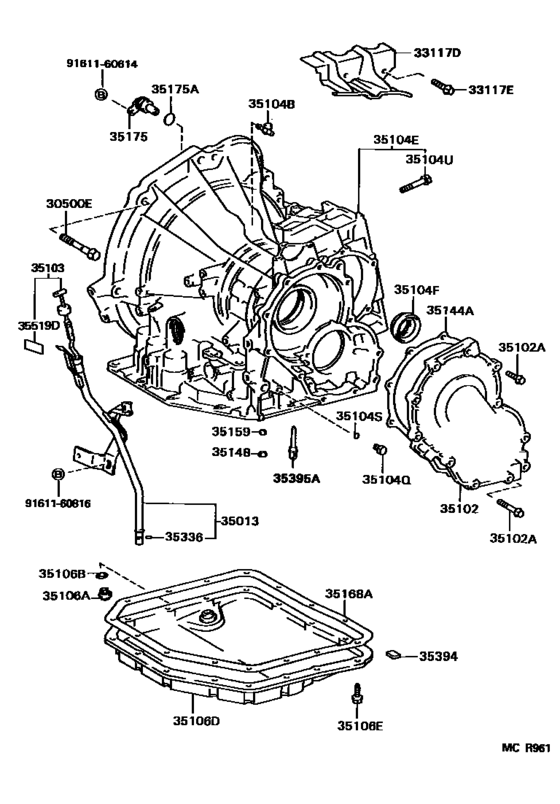

Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC) 41

#	OEM	Part name
30500	90105-10097	Bolt(For Transaxle & Engine Setting)
30500	90119-12168	Bolt(For Transaxle & Engine Setting)
30500	91612-41025	Bolt(For Transaxle & Engine Setting)
30500	90119-10223	Bolt(For Transaxle & Engine Setting)
30500	91619-61245	Bolt(For Transaxle & Engine Setting)
30500	91621-60614	Bolt(For Transaxle & Engine Setting)
33117	33117-10011	Protector, Transaxle Case
33117	90105-08040	Bolt(For Plate Bolt Lock)
33117	91641-H0820	Bolt
35013	35013-16260	Tube Sub-Assy, Transmission Oil Filler
35102	35102-10011	Cover Sub-Assy, Transaxle Rear
35102	90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)
35102	90105-08056	Bolt (For Overdrive Case & Transaxle Case Setting)
35103	35103-16230	Gage Sub-Assy, Transmission Oil Level
35104	90930-03089	Plug, Breather, No.1 (Atm)
35104	35104-10043	Case Sub-Assy, Automatic Transaxle
35104	90311-34012	Oil Seal
35104	90311-34023	Seal, Type T Oil, No.2(For Cvt)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90105-10008	Bolt, Hexagon(For Differential Bearing Cap Setting)
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-10022	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35144	35144-12020	Gasket, Transaxle Rear Cover
35144	35144-12030	Gasket, Transaxle Rear Cover
35148	35148-16010	Gasket (For Automatic Transfer Case)
35159	35159-32011	Gasket, Brake Drum
35168	35168-32010	Gasket, Automatic Transaxle Oil Pan
35175	35175-32010	Cap, Transaxle Case, No.2
35175	90301-21002	Ring, O (For Transaxle Case Cap)
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-32030	Strainer, Governor Oil
35519	35519-32040	Label, Automatic Transmission Information
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
33117-10011	Protector, Transaxle Case	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35013-16260	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35102-10011	Cover Sub-Assy, Transaxle Rear	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35103-16230	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35104-10043	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35106-10022	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35144-12020	Gasket, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35144-12030	Gasket, Transaxle Rear Cover	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35159-32011	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35168-32010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35175-32010	Cap, Transaxle Case, No.2	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35395-32030	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
35519-32040	Label, Automatic Transmission Information	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90105-08056	Bolt (For Overdrive Case & Transaxle Case Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90105-10008	Bolt, Hexagon(For Differential Bearing Cap Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90105-10097	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90119-10223	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90119-12168	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90301-21002	Ring, O (For Transaxle Case Cap)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90311-34012	Oil Seal	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90311-34023	Seal, Type T Oil, No.2(For Cvt)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
90930-03089	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-B0816	Bolt	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91612-41025	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91621-60614	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([09.1994 - ] A132 (9409- )3FC)
