EL50

Toyota TERCEL · 1994 · 4,447 parts · 195 categories

← Back to categories

4,447 items

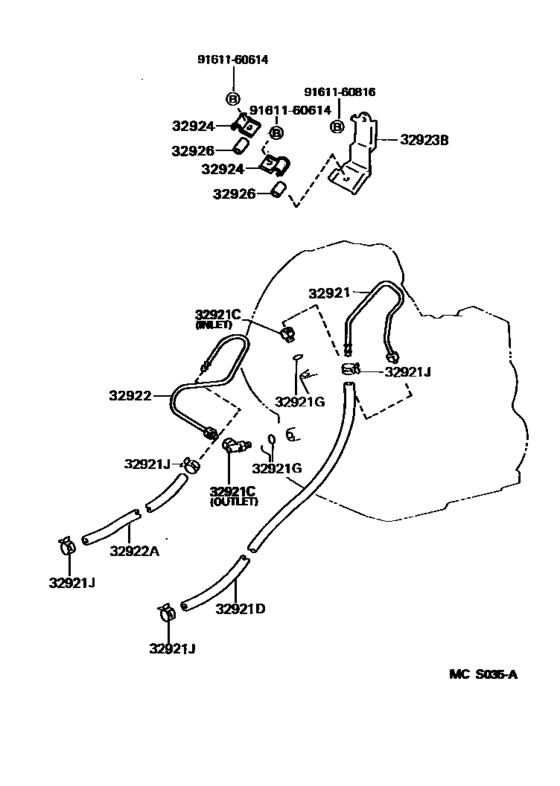

Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC) 19

#	OEM	Part name
32921	32921-16070	Tube, Oil Cooler Inlet, No.1
32921	32921-16170	Tube, Oil Cooler Inlet, No.1
32921	32901-12030	Union(For Oil Cooler Tube)
32921	90404-14007	Union(For Oil Cooler Tube)
32921	90407-14003	Union(For Oil Cooler Tube)
32921	90445-15054	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90467-13039	Clamp, Hose
32921	96135-51300	Clamp, Hose
32922	32922-16090	Tube, Oil Cooler Outlet, No.1
32922	32922-16130	Tube, Oil Cooler Outlet, No.1
32922	90445-15045	Hose(For Oil Cooler Inlet)
32923	32923-16031	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924	90462-10082	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-10010	Cushion, Oil Cooler Tube(Atm)
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
32901-12030	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
32921-16070	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
32921-16170	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
32922-16090	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
32922-16130	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
32923-16031	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
32926-10010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
90404-14007	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
90407-14003	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
90445-15045	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
90445-15054	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
90462-10082	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
90467-13039	Clamp, Hose	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([09.1994 - ] A132 (9409- )3FC)
