| 88335-14020 |
Washer |

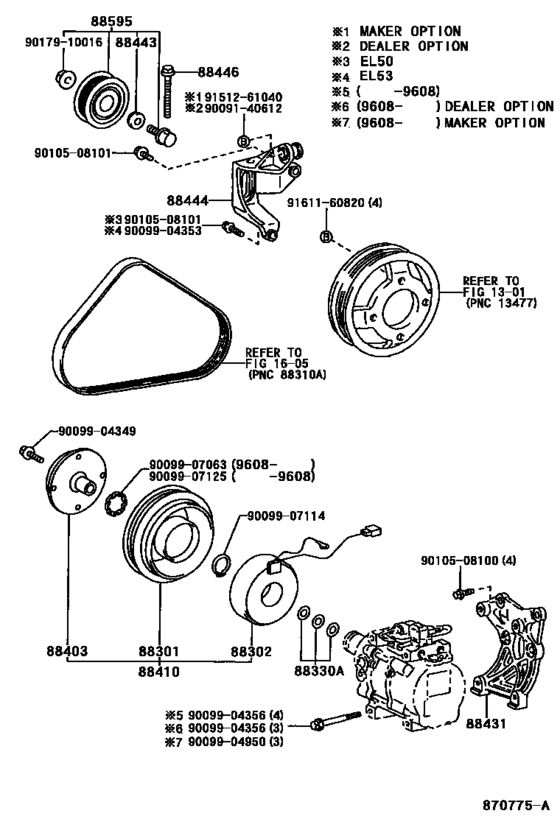

Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88403-16020 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88403-1A010 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88410-16181 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88410-16280 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88411-16070 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88411-1A040 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88412-16130 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88412-16160 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88431-16060 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88431-16120 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88431-16140 |
Bracket, Compressor Mounting, No.1 |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88440-16050 |
Pulley, Cooler Compressor Idle |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88443-36010 |
Collar, Idle Pulley |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88444-10031 |
Bracket, Idle Pulley |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 88446-12030 |
Bolt, Idle Pulley |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90091-40612 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90099-04353 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90099-04356 |
BOLT |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90099-04950 |
BOLT |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90099-07063 |
RING SNAP |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90099-07125 |
Ring, Snap |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90105-08100 |
BOLT |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90105-08101 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90179-10016 |
Nut(For Counter Gear Shaft) |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 90179-10132 |
Nut |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 91512-61040 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 91611-60820 |
Bolt(For Transaxle & Engine Setting) |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
| 91611-G0820 |
Bolt |
Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) |
