Search › Model › EL50

EL50

Toyota TERCEL · 1994 · 4,447 parts · 195 categories

4,447 items

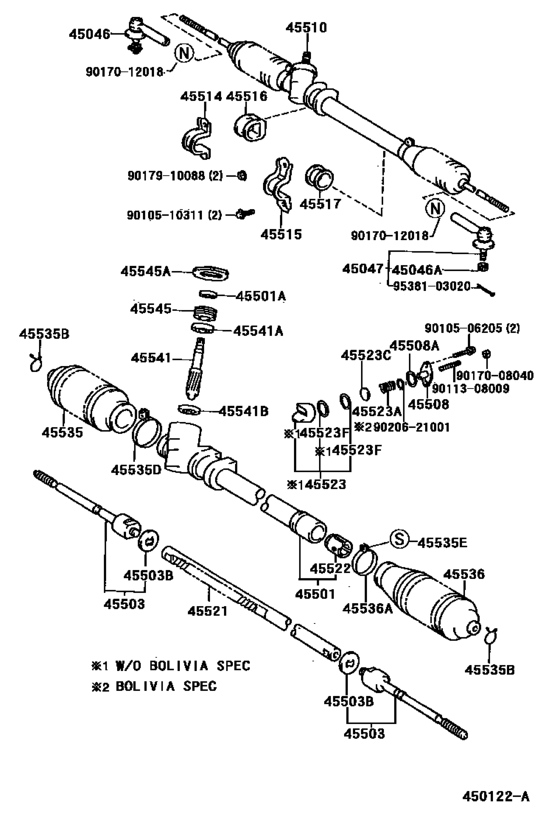

Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- )) 57

#	OEM	Part name
45046	45046-19206	End Sub-Assy, Tie Rod
45046	90171-12028	Nut, Castle(For Pitman Arm)
45501	45501-10100	Housing Sub-Assy, Steering Rack
45501	45501-10110	Housing Sub-Assy, Steering Rack
45501	90311-15002	Seal, Oil(For Steering Bevel Gear Housing)
45503	45503-19185	End Sub-Assy, Steering Rack
45503	45503-19195	End Sub-Assy, Steering Rack
45503	90214-12002	Washer, Claw(For Power Steering Rack End)
45508	45546-10011	Cover Sub-Assy, Steering Rack Guide Spring
45508	90301-31007	Ring, O(For Steering Rack Guide Spring Cover)
45510	45510-16160	Gear Assy, Steering
45510	45510-16161	Gear Assy, Steering
45514	45514-16050	Bracket, Steering Rack Housing, No.1
45514	45514-16060	Bracket, Steering Rack Housing, No.1
45514	45514-16061	Bracket, Steering Rack Housing, No.1
45515	45515-10050	Bracket, Steering Rack Housing, No.2
45516	45516-16050	Grommet, Steering Rack Housing, No.1
45516	45516-16060	Grommet, Steering Rack Housing, No.1
45517	45517-10070	Grommet, Steering Rack Housing, No.2
45517	45517-10080	Grommet, Steering Rack Housing, No.2
45521	45521-16220	Rack, Steering
45522	45522-10050	Bush, Steering Rack
45522	45522-10080	Bush, Steering Rack
45523	45504-10020	Guide, Rack(For Steering Gear)
45523	45504-16050	Guide, Rack(For Steering Gear)
45523	45504-16060	Guide Sub-Assy, Rack
45523	45523-10040	Guide, Rack(For Steering Gear)
45523	45523-10041	Guide, Rack(For Steering Gear)
45523	90501-26042	Spring(For Power Steering Rack Guide)
45523	90501-32032	Spring(For Steering Gear Rack Guide)
45523	45542-12010	Spacer(For Rack Guide)
45523	45542-17010	Spacer(For Rack Guide)
45523	90301-24005	Ring, O(For Steering Gear Guide)
45535	45535-10021	Boot, Steering Rack, No.1
45535	45535-10060	Boot, Steering Rack, No.1
45535	45535-16030	Boot, Steering Rack, No.1
45535	90467-17021	Clamp Or Clip, Hose(For Water By-Pass Hose)
45535	90467-18003	Clip Or Clamp(For Ventilation Hose)
45535	90460-49002	Clamp(For Power Steering Rack Boot)
45535	90461-08718	Clamp(For Power Steering Rack Boot)
45535	90461-10273	Clamp(For Steering Rack Boot)
45535	93269-63020	Screw(For Steering Rack Boot Clamp)
45536	45536-10060	Boot, Steering Rack, No.2
45536	90461-10646	Clamp(For Steering Rack Boot)
45541	45541-16090	Pinion, Steering
45541	90363-15015	Bearing, Radial Ball(For Steering Pinion Upper)
45541	90363-13004	Bearing, Radial Ball(For Steering Pinion Upper)
45545	45545-10020	Screw, Pinion Bearing Adjusting
45545	90179-38001	Nut(For Pinion Bearing Adjusting Screw)
9010506205	90105-06205	New Genuine Part
9010510311	90105-10311	New Genuine Part
9011308009	90113-08009	New Genuine Part
9017008040	90170-08040	New Genuine Part
9017012018	90170-12018	Nut (For Propeller Shaft)
9017910088	90179-10088	Nut
9020621001	90206-21001	New Genuine Part
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
45046-19206	End Sub-Assy, Tie Rod	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45501-10100	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45501-10110	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45503-19185	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45503-19195	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45504-10020	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45504-16050	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45504-16060	Guide Sub-Assy, Rack	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45510-16160	Gear Assy, Steering	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45510-16161	Gear Assy, Steering	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45514-16050	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45514-16060	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45514-16061	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45515-10050	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45516-16050	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45516-16060	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45517-10070	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45517-10080	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45521-16220	Rack, Steering	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45522-10050	Bush, Steering Rack	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45522-10080	Bush, Steering Rack	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45523-10040	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45523-10041	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45535-10021	Boot, Steering Rack, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45535-10060	Boot, Steering Rack, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45535-16030	Boot, Steering Rack, No.1	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45536-10060	Boot, Steering Rack, No.2	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45541-16090	Pinion, Steering	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45542-12010	Spacer(For Rack Guide)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45542-17010	Spacer(For Rack Guide)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45545-10020	Screw, Pinion Bearing Adjusting	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
45546-10011	Cover Sub-Assy, Steering Rack Guide Spring	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90105-06205	New Genuine Part	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90105-10311	New Genuine Part	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90113-08009	New Genuine Part	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90170-08040	New Genuine Part	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90170-12018	Nut (For Propeller Shaft)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90179-10088	Nut	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90179-38001	Nut(For Pinion Bearing Adjusting Screw)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90206-21001	New Genuine Part	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90214-12002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90301-24005	Ring, O(For Steering Gear Guide)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90301-31007	Ring, O(For Steering Rack Guide Spring Cover)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90311-15002	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90363-13004	Bearing, Radial Ball(For Steering Pinion Upper)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90363-15015	Bearing, Radial Ball(For Steering Pinion Upper)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90460-49002	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90461-08718	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90461-10273	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90461-10646	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90467-17021	Clamp Or Clip, Hose(For Water By-Pass Hose)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90467-18003	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90501-26042	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
90501-32032	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
93269-63020	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([02.1996 - ] MANUAL STEERING (9602- ))
