Search › Model › EL45

EL45

Toyota COROLLA · 1990 · 5,744 parts · 183 categories

5,744 items

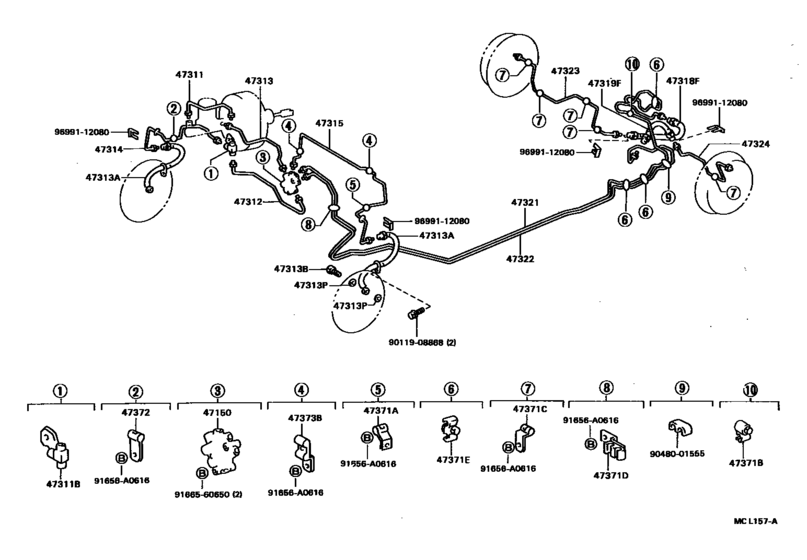

Brake Tube & Clamp ([09.1990 - ] (9009- )EL45) 45

#	OEM	Part name
47150	47150-12050	Valve Assy, Proportioning
47150	47150-12230	Valve Assy, Proportioning
47150	47150-20250	Valve Assy, Proportioning
47311	47311-10180	Tube, Front Brake, No.1
47311	47311-16120	Tube, Front Brake, No.1
47311	90412-10168	Way, No.1(For Front Brake Tube)
47311	90413-10259	Way, No.1(For Front Brake Tube)
47312	47312-16100	Tube, Front Brake, No.2
47312	47312-16120	Tube, Front Brake, No.2
47313	47313-16120	Tube, Front Brake, No.3
47313	47313-16140	Tube, Front Brake, No.3
47313	90947-02644	Hose, Flexible, No.1(For Front)
47313	90947-02813	Hose, Flexible, No.1(For Front)
47313	90947-02645	Hose, Flexible, No.1(For Front)
47313	90947-02814	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-10230	Tube, Front Brake, No.4
47314	47314-16090	Tube, Front Brake, No.4
47315	47315-16080	Tube, Front Brake, No.5
47315	47315-16100	Tube, Front Brake, No.5
47318	90947-02643	Hose, Flexible(For Rear Rh)
47318	90947-02796	Hose, Flexible(For Rear Rh)
47319	90947-02638	Hose, Flexible(For Rear Lh)
47319	90947-02797	Hose, Flexible(For Rear Lh)
47321	47321-16060	Tube, Rear Brake, No.1
47322	47322-16050	Tube, Rear Brake, No.2
47323	47323-16120	Tube, Rear Brake, No.3
47324	47324-16110	Tube, Rear Brake, No.4
47371	47371-10020	Clamp, Brake Tube, No.1
47371	90461-06055	Clamp, Brake Tube, No.1
47371	47371-10100	Clamp, Brake Tube, No.6
47371	90461-10763	Clamp, Exhaust Pipe
47371	47371-30010	Clamp, Brake Tube, No.1
47371	47371-10050	Clamp, Brake Tube, No.6
47372	47371-10150	Clamp, Brake Tube, No.2
47372	90461-10738	Clamp, Brake Tube, No.2
47373	90464-00478	Clamp, Brake Tube, No.3
47373	90949-01207	Clamp, Brake Tube, No.6
91656	91656-A0616	New Genuine Part
91656	91651-B0614	BOLT WWASHER
9011908868	90119-08868	BOLT WWASHER
9048001555	90480-01555	Grommet(For Front Brake Tube)
9166560650	91665-60650	New Genuine Part
9699112080	96991-12080	Clip

OEM	Part name	Category
47150-12050	Valve Assy, Proportioning	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47150-12230	Valve Assy, Proportioning	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47150-20250	Valve Assy, Proportioning	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47311-10180	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47311-16120	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47312-16100	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47312-16120	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47313-16120	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47313-16140	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47314-10230	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47314-16090	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47315-16080	Tube, Front Brake, No.5	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47315-16100	Tube, Front Brake, No.5	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47321-16060	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47322-16050	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47323-16120	Tube, Rear Brake, No.3	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47324-16110	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47371-10020	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47371-10050	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47371-10100	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47371-10150	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
47371-30010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90412-10168	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90413-10259	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90461-06055	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90461-10738	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90461-10763	Clamp, Exhaust Pipe	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90464-00478	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90480-01555	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02638	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02643	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02644	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02645	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02796	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02797	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02813	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90947-02814	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
90949-01207	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
91651-B0614	BOLT WWASHER	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
91656-A0616	New Genuine Part	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
91665-60650	New Genuine Part	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
96991-12080	Clip	Brake Tube & Clamp ([09.1990 - ] (9009- )EL45)
