Search › Model › EL44

EL44

Toyota CYNOS · 1991 · 4,911 parts · 169 categories

4,911 items

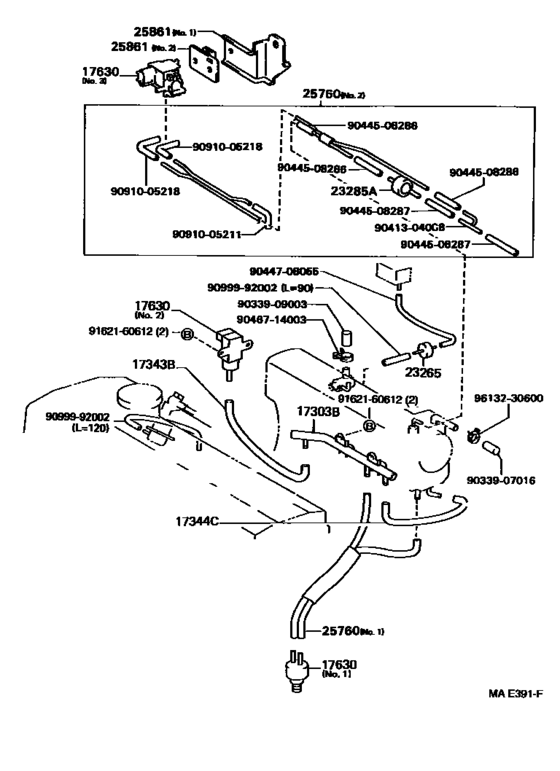

Vacuum Piping ([01.1991 - ] (9101- )5EFE) 28

#	OEM	Part name
17303	17303-11400	Pipe Sub-Assy, Air, No.1
17303	17303-11401	Pipe Sub-Assy, Air, No.1
17343	17343-11080	Hose, No.3(For Idle-Up)
17344	17344-11030	Hose, No.4(For Idle-Up)
17630	17630-11050	Valve Assy, Air Control
17630	17630-11060	Valve Assy, Air Control
17630	90910-12106	Valve Assy, Air Control
17630	90910-12121	Valve Assy, Air Control
23265	90917-11030	Filter, Gas, No.1
23285	90917-10080	Filter, Gas, No.1
25760	25760-11090	Hose Assy, Vacuum Transmitting
25760	25760-11161	Hose Assy, Vacuum Transmitting
25861	25861-11010	Bracket, Vacuum Switching Valve
25861	25862-11010	Bracket, Vacuum Switching Valve
9033907016	90339-07016	Cap(For Intake Air Connector)
9033909003	90339-09003	Plug(For Vacuum Hose Union)
9041304008	90413-04008	Way, 3(For Transfer Breather Hose)
9044508286	90445-08286	New Genuine Part
9044508286	90445-08287	New Genuine Part
9044708055	90447-08055	Hose, Vacuum, No.2 (For Front Drive Shift)
9046714003	90467-14003	Clip Or Clamp(For Ventilation Hose)
9091005211	90910-05211	New Genuine Part
9091005218	90910-05218	New Genuine Part
9099992002	90999-92002	Air Hose (300 mm)
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)

OEM	Part name	Category
17303-11400	Pipe Sub-Assy, Air, No.1	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
17303-11401	Pipe Sub-Assy, Air, No.1	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
17343-11080	Hose, No.3(For Idle-Up)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
17344-11030	Hose, No.4(For Idle-Up)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
17630-11050	Valve Assy, Air Control	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
17630-11060	Valve Assy, Air Control	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
25760-11090	Hose Assy, Vacuum Transmitting	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
25760-11161	Hose Assy, Vacuum Transmitting	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
25861-11010	Bracket, Vacuum Switching Valve	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
25862-11010	Bracket, Vacuum Switching Valve	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90339-07016	Cap(For Intake Air Connector)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90339-09003	Plug(For Vacuum Hose Union)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90413-04008	Way, 3(For Transfer Breather Hose)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90445-08286	New Genuine Part	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90445-08287	New Genuine Part	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90447-08055	Hose, Vacuum, No.2 (For Front Drive Shift)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90467-14003	Clip Or Clamp(For Ventilation Hose)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90910-05211	New Genuine Part	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90910-05218	New Genuine Part	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90910-12106	Valve Assy, Air Control	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90910-12121	Valve Assy, Air Control	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90917-10080	Filter, Gas, No.1	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90917-11030	Filter, Gas, No.1	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
91621-60612	BOLTWWASHER	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
91621-J0612	BOLT W-WASHER	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
96132-30600	Clip(For Actuator Hose)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
96132-51100	Clip (For Hose)	Vacuum Piping ([01.1991 - ] (9101- )5EFE)
