Search › Model › EL44

EL44

Toyota CYNOS · 1991 · 4,911 parts · 169 categories
EL44 ×

← Back to categories

4,911 items

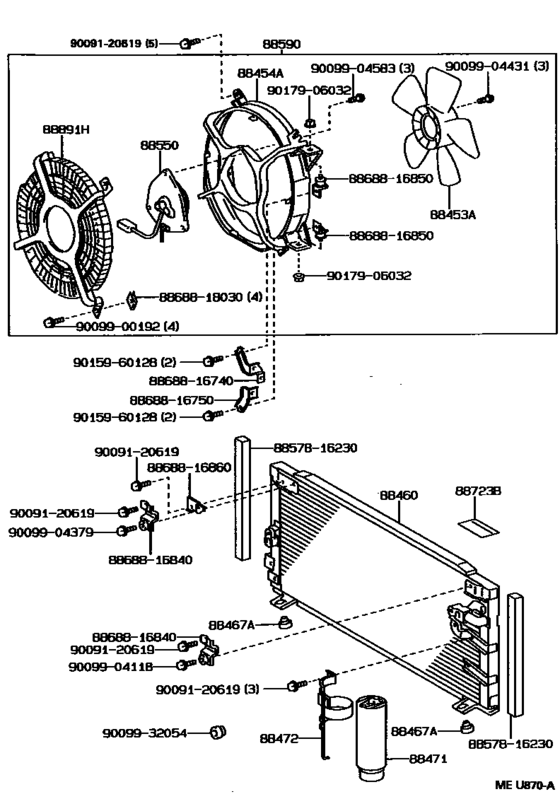

Heating & Air Conditioning - Cooler Piping ([01.1991 - 12.1992] (9101-9212)) 97
#OEMPart name
88453 88453-10020 Fan, Cooling (For Condenser)
88453 88453-12080 Fan, Cooling (For Condenser)
88454 88454-16110 Shroud, Fan
88460 88460-16270 Condenser Assy, Cooler
88460 88460-16280 Condenser Assy, Cooler
88460 88460-16281 Condenser Assy, Cooler
88467 88467-10020 Cushion, Cooler Condenser, No.2
88467 88467-16090 Cushion, Cooler Condenser, No.1
88471 88471-16040 Receiver & Dryer Assy, Cooler
88471 88471-16050 Receiver & Dryer Assy, Cooler
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-16110 Bracket, Receiver Tank, No.1
88472 88472-16120 Bracket, Receiver Tank, No.1
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02006 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550 88550-10050 Motor Assy, Blower (For Condenser)
88590 88590-16090 Blower Assy, W/shroud
88590 88590-16091 Blower Assy, W/shroud
88645 88645-10030 Switch, Pressure No.1
88645 88645-20050 Switch, Pressure
88704 88704-16040 Hose Sub-Assy, Suction
88704 88704-16090 Hose Sub-Assy, Suction
88704 88704-16091 Hose Sub-Assy, Suction
88704 88704-16120 Hose Sub-Assy, Suction
88704 88704-16121 Hose Sub-Assy, Suction
88706 88706-16100 Tube Sub-Assy, Liquid, A
88706 88706-16101 Tube Sub-Assy, Liquid, A
88706 88706-16250 Tube Sub-Assy, Liquid, A
88706 88706-16251 Tube Sub-Assy, Liquid, A
88706 88706-16280 Tube Sub-Assy, Liquid, A
88706 88706-16281 Tube Sub-Assy, Liquid, A
88711 88711-16160 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-16170 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-16171 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-16180 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-16181 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-16180 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16370 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16250 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16251 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16290 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16291 Hose, Cooler Refrigerant Suction, No.1
88716 88716-16530 Pipe, Cooler Refrigerant Liquid, A
88716 88716-1G300 Pipe, Cooler Refrigerant Liquid, A
88716 88716-16531 Pipe, Cooler Refrigerant Liquid, A
88716 88716-1G310 Pipe, Cooler Refrigerant Liquid, A
88716 88716-16532 Pipe, Cooler Refrigerant Liquid, A
88716 88716-16570 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16730 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16731 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16700 Pipe, Cooler Refrigerant Liquid, E
88716 88716-16701 Pipe, Cooler Refrigerant Liquid, E
88716 88716-16840 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16841 Pipe, Cooler Refrigerant Liquid, B
88717 88717-16130 Pipe, Cooler Refrigerant Suction, A
88717 88717-16200 Pipe, Cooler Refrigerant Suction, A
88717 88717-16201 Pipe, Cooler Refrigerant Suction, A
88717 88717-16220 Pipe, Cooler Refrigerant Suction, A
88717 88717-16221 Pipe, Cooler Refrigerant Suction, A
88723 88723-16030 Label, Cooler Service Caution
88723 88723-20010 Label, Cooler Service Caution
88891 88891-16040 Cover, Cooler, No.1
887181 88718-1A320 Pipe, Cooler Refrigerant Suction, No.2
8846740030 88467-40030 Cushion, Cooler Condenser, No.1
8857816210 88578-16210 Paking, Cooler Air Duct
8857816230 88578-16230 Paking, Cooler Air Duct
8868816630 88688-16630 Bracket, Cooler Diaphragm
8868816640 88688-16640 Bracket, Cooler Diaphragm
8868816670 88688-16670 Bracket, Cooler Diaphragm
8868816740 88688-16740 Bracket, Cooler Diaphragm
8868816750 88688-16750 Bracket, Cooler Diaphragm
8868816770 88688-16770 Bracket, Cooler Diaphragm
8868816840 88688-16840 Bracket, Cooler Diaphragm
8868816850 88688-16850 Bracket, Fan Shroud, No.2
8868816860 88688-16860 Bracket, Cooler Diaphragm
8868818030 88688-18030 Bracket, Fan Shroud
8871816420 88718-16420 Pipe, Cooler Refrigerant Suction, No.2
8871816430 88718-16430 Pipe, Cooler Refrigerant Suction, No.2
8871816441 88718-16441 Pipe, Cooler Refrigerant Suction, No.2
8871816451 88718-16451 Pipe, Cooler Refrigerant Suction, No.2
8871889115 88718-89115 Pipe, Cooler Refrigerant Suction, No.2
9009120619 90091-20619 BOLT
9009900192 90099-00192 New Genuine Part
9009904118 90099-04118 New Genuine Part
9009904379 90099-04379 New Genuine Part
9009904431 90099-04431 New Genuine Part
9009904583 90099-04583 New Genuine Part
9009932054 90099-32054 New Genuine Part
9015960128 90159-60128 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046711072 90467-11072 New Genuine Part
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338556025 93385-56025 New Genuine Part
9338558040 93385-58040 New Genuine Part
