Search › Model › EL40
EL40

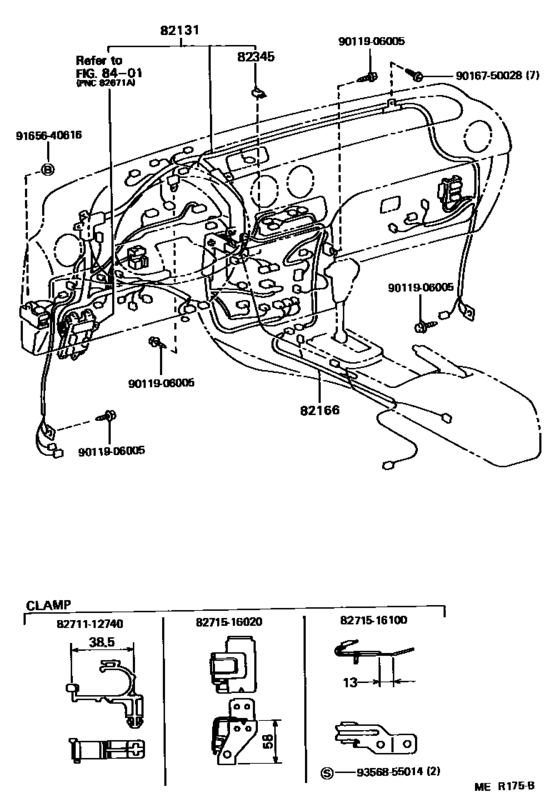

Wiring & Clamp ([09.1990 - ] (9009- )LHD) 11
| # | OEM | Part name |
|---|---|---|
| 82131 | 82131-1S630 | Wire, Cowl |
| 82166 | 82166-16140 | Wire, Console Box |
| 82345 | 82345-12050 | Diode |
| 8271112740 | 82711-12740 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8271516020 | 82715-16020 | Bracket,wiring Harness Clamp |
| 8271516100 | 82715-16100 | Bracket,wiring Harness Clamp |
| 9011906005 | 90119-06005 | New Genuine Part |
| 9016750028 | 90167-50028 | Direct |
| 9016750028 | 93568-55014 | Screw |
| 9165640616 | 91656-40616 | Bolt |
| 9165640616 | 91651-60614 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 82131-1S630 | Wire, Cowl | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 82166-16140 | Wire, Console Box | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 82345-12050 | Diode | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 82711-12740 | Wire, Fuse To Fuse(for Combustion Heater) | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 82715-16020 | Bracket,wiring Harness Clamp | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 82715-16100 | Bracket,wiring Harness Clamp | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 90119-06005 | New Genuine Part | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 90167-50028 | Direct | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 91651-60614 | Bolt | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 91656-40616 | Bolt | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
| 93568-55014 | Screw | Wiring & Clamp ([09.1990 - ] (9009- )LHD) |
