EL40

Toyota TERCEL · 1990 · 4,573 parts · 169 categories

4,573 items

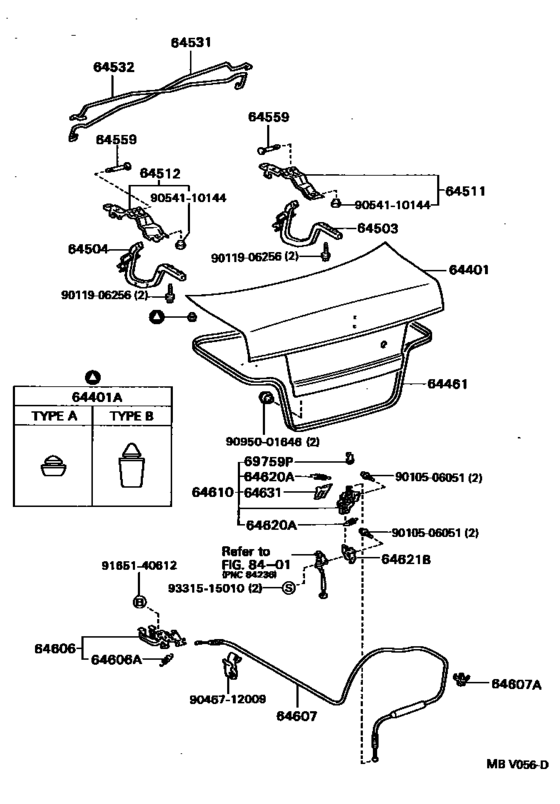

Luggage Compartment Door & Lock ([09.1990 - ] (9009- )) 42

#	OEM	Part name
64401	64401-16111	Panel Sub-Assy, Luggage Compartment Door
64401	90541-06076	Cushion(For Luggage Compartment Door Panel)
64401	90541-06056	Cushion(For Luggage Compartment Door Panel)
64401	90541-09043	Cushion(For Luggage Compartment Door Panel)
64401	64401-16110	Panel Sub-Assy, Luggage Compartment Door
64461	64461-16130	Weatherstrip, Luggage Compartment Door
64503	64503-16020	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64504	64504-16010	Arm Sub-Assy, Luggage Compartment Door Hinge, Lh
64511	64511-16040	Support, Luggage Compartment Door Hinge, Rh
64512	64512-16040	Support, Luggage Compartment Door Hinge, Lh
64531	64531-16140	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-16140	Bar, Luggage Door Hinge Torsion, Lh
64559	64559-30010	Pin, Luggage Door Hinge
64606	64606-16060	Lever Sub-Assy, Luggage Door Lock Open
64606	90506-09034	Spring, Tension(For Luggage Door Lock Open Lever)
64606	64606-16050	Lever Sub-Assy, Luggage Door Lock Open
64607	64607-16280	Cable Sub-Assy, Luggage Door Lock Control
64607	90959-01369	Clamp, Hood Lock Control Cable
64610	64610-16052	Lock Assy, Luggage Compartment Door
64610	64610-16062	Lock Assy, Luggage Compartment Door
64610	64610-16050	Lock Assy, Luggage Compartment Door
64610	64610-16051	Lock Assy, Luggage Compartment Door
64610	64610-16060	Lock Assy, Luggage Compartment Door
64610	64610-16061	Lock Assy, Luggage Compartment Door
64620	90506-05001	Spring, Tension(For Lock)
64620	90506-05002	Spring, Tension(For Lock)
64621	64621-16020	Striker, Luggage Compartment Door Lock
64621	64621-22040	Striker Assy, Luggage Compartment Door
64631	64631-16020	Protector, Luggage Door Lock
69759	69759-16040	Snap, Door Lock Control Link
69759	69759-16050	Snap, Door Lock Control Link
69759	69759-20190	Snap, Front Door Lock Control Rod
69759	69759-20200	Snap, Front Door Lock Control Rod
9010506051	90105-06051	New Genuine Part
9010506051	90105-06168	BOLT WASHER BASED
9011906256	90119-06256	BOLT
9046712009	90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)
9054110144	90541-10144	Cushion, Luggage Compartment Door
9095001646	90950-01646	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9331515010	93315-15010	New Genuine Part

OEM	Part name	Category
64401-16110	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64401-16111	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64461-16130	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64503-16020	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64504-16010	Arm Sub-Assy, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64511-16040	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64512-16040	Support, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64531-16140	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64532-16140	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64559-30010	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64606-16050	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64606-16060	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64607-16280	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64610-16050	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64610-16051	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64610-16052	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64610-16060	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64610-16061	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64610-16062	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64621-16020	Striker, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64621-22040	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
64631-16020	Protector, Luggage Door Lock	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
69759-16040	Snap, Door Lock Control Link	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
69759-16050	Snap, Door Lock Control Link	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
69759-20190	Snap, Front Door Lock Control Rod	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
69759-20200	Snap, Front Door Lock Control Rod	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90080-11225	New Genuine Part	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90105-06051	New Genuine Part	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90119-06256	BOLT	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90506-05001	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90506-05002	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90506-09034	Spring, Tension(For Luggage Door Lock Open Lever)	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90541-06056	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90541-06076	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90541-09043	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90541-10144	Cushion, Luggage Compartment Door	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90950-01646	New Genuine Part	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
90959-01369	Clamp, Hood Lock Control Cable	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
91651-40612	BOLT	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
93315-15010	New Genuine Part	Luggage Compartment Door & Lock ([09.1990 - ] (9009- ))
