Search › Model › EL40

EL40

Toyota TERCEL · 1990 · 4,573 parts · 169 categories
EL40 ×

← Back to categories

4,573 items

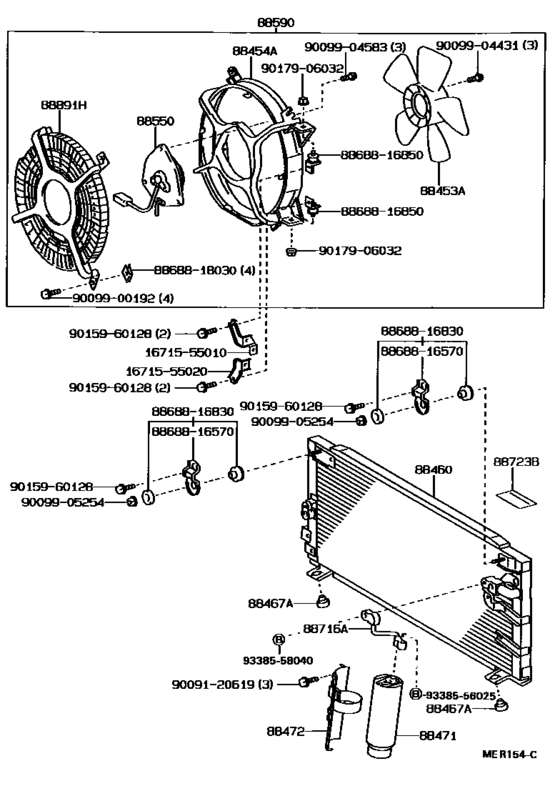

Heating & Air Conditioning - Cooler Piping ([09.1990 - 08.1992] MAKER OPTION (9009-9208)RHD) 104
#OEMPart name
88453 88453-10020 Fan, Cooling (For Condenser)
88454 88454-16110 Shroud, Fan
88460 88460-16230 Condenser Assy, Cooler
88460 88460-16240 Condenser Assy, Cooler
88460 88460-16250 Condenser Assy, Cooler
88460 88460-16300 Condenser Assy, Cooler
88460 88460-16320 Condenser Assy, Cooler
88460 88460-16301 Condenser Assy, Cooler
88460 88460-16321 Condenser Assy, Cooler
88467 88467-10020 Cushion, Cooler Condenser, No.2
88467 88467-16090 Cushion, Cooler Condenser, No.1
88471 88471-16040 Receiver & Dryer Assy, Cooler
88471 88471-16050 Receiver & Dryer Assy, Cooler
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-16110 Bracket, Receiver Tank, No.1
88472 88472-16120 Bracket, Receiver Tank, No.1
88550 88550-10050 Motor Assy, Blower (For Condenser)
88590 88590-16040 Blower Assy, W/shroud
88590 88590-16050 Blower Assy, W/shroud
88645 88645-10030 Switch, Pressure No.1
88645 88645-20050 Switch, Pressure
88703 88703-16040 Hose Sub-Assy, Discharge
88703 88703-16060 Hose Sub-Assy, Discharge
88703 88703-16061 Hose Sub-Assy, Discharge
88704 88704-16050 Hose Sub-Assy, Suction
88704 88704-16100 Hose Sub-Assy, Suction
88704 88704-16101 Hose Sub-Assy, Suction
88704 88704-16130 Hose Sub-Assy, Suction
88704 88704-16131 Hose Sub-Assy, Suction
88705 88705-16010 Tube Sub-Assy, Discharge
88705 88705-16011 Tube Sub-Assy, Discharge
88706 88706-16080 Tube Sub-Assy, Liquid, A
88706 88706-16230 Tube Sub-Assy, Liquid, A
88706 88706-16250 Tube Sub-Assy, Liquid, A
88706 88706-16251 Tube Sub-Assy, Liquid, A
88706 88706-16280 Tube Sub-Assy, Liquid, A
88706 88706-16281 Tube Sub-Assy, Liquid, A
88711 88711-16130 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-16170 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-16171 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-16200 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16260 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16261 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16300 Hose, Cooler Refrigerant Suction, No.1
88712 88712-16301 Hose, Cooler Refrigerant Suction, No.1
88715 88715-16030 Pipe, Cooler Refrigerant Discharge, A
88715 88715-16031 Pipe, Cooler Refrigerant Discharge, A
88716 88716-16530 Pipe, Cooler Refrigerant Liquid, A
88716 88716-1G300 Pipe, Cooler Refrigerant Liquid, A
88716 88716-16531 Pipe, Cooler Refrigerant Liquid, A
88716 88716-1G310 Pipe, Cooler Refrigerant Liquid, A
88716 88716-16532 Pipe, Cooler Refrigerant Liquid, A
88716 88716-16570 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16730 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16731 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16840 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16841 Pipe, Cooler Refrigerant Liquid, B
88716 88716-16560 Pipe, Cooler Refrigerant Liquid, E
88716 88716-16670 Pipe, Cooler Refrigerant Liquid, E
88717 88717-16120 Pipe, Cooler Refrigerant Suction, A
88717 88717-16170 Pipe, Cooler Refrigerant Suction, A
88717 88717-16200 Pipe, Cooler Refrigerant Suction, A
88717 88717-16201 Pipe, Cooler Refrigerant Suction, A
88717 88717-16220 Pipe, Cooler Refrigerant Suction, A
88717 88717-16221 Pipe, Cooler Refrigerant Suction, A
88723 88723-16020 Label, Cooler Service Caution
88723 88723-16050 Label, Cooler Service Caution
88723 88723-20020 Plate, Caution, No.2 - COOLER SERVICE CAUTION
88891 88891-16040 Cover, Cooler, No.1
1671555010 16715-55010 Bracket, Fan Shroud
1671555020 16715-55020 Bracket, Fan Shroud
8868816570 88688-16570 Bracket, Cooler Diaphragm
8868816580 88688-16580 Bracket, Cooler Diaphragm
8868816630 88688-16630 Bracket, Cooler Diaphragm
8868816640 88688-16640 Bracket, Cooler Diaphragm
8868816760 88688-16760 Bracket, Cooler Diaphragm
8868816830 88688-16830 Bracket, Cooler
8868816850 88688-16850 Bracket, Fan Shroud, No.2
8868818030 88688-18030 Bracket, Fan Shroud
8868916670 88689-16670 Hose, Damper Control Diaphragm Vacuum
8871816400 88718-16400 Pipe, Cooler Refrigerant Suction, No.2
8871816410 88718-16410 Pipe, Cooler Refrigerant Suction, No.2
8871816420 88718-16420 Pipe, Cooler Refrigerant Suction, No.2
8871816430 88718-16430 Pipe, Cooler Refrigerant Suction, No.2
8871816441 88718-16441 Pipe, Cooler Refrigerant Suction, No.2
8871816460 88718-16460 Pipe, Cooler Refrigerant Suction, No.2
8871816540 88718-16540 Pipe, Cooler Refrigerant Suction, No.2
9009120619 90091-20619 BOLT
9009900192 90099-00192 New Genuine Part
9009904431 90099-04431 New Genuine Part
9009904583 90099-04583 New Genuine Part
9009905254 90099-05254 New Genuine Part
9011906276 90119-06276 Bolt
9011908726 90119-08726 New Genuine Part
9011908726 90119-08808 New Genuine Part
9015960128 90159-60128 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046711072 90467-11072 New Genuine Part
9165140625 91651-40625 New Genuine Part
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338556025 93385-56025 New Genuine Part
9338558040 93385-58040 New Genuine Part
