Search › Model › EL40

EL40

Toyota TERCEL · 1990 · 4,573 parts · 169 categories

4,573 items

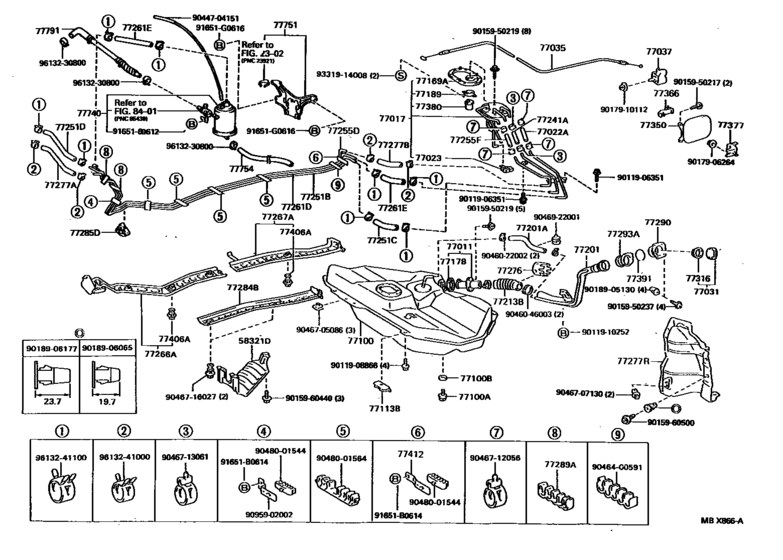

Fuel Tank & Tube ([08.1993 - ] (9308- )GCC) 99

#	OEM	Part name
58321	58321-10020	Insulator, Rear Floor Heat, No.1
77011	77011-10060	Pipe Sub-Assy, Fuel Tank Filler, Lower
77017	77017-16160	Tube Sub-Assy, Fuel And Evaporation Vent
77022	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77022	95337-06020	Hose, Differential Pressure Control
77023	77023-10010	Filter Sub-Assy, Fuel Suction Tube
77023	77023-16010	Filter Sub-Assy, Fuel Suction Tube
77031	77310-16011	Cap Assy, Fuel Tank
77031	77310-12140	Cap Assy, Fuel Tank
77035	77035-16150	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-16030	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-16180	Tank Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77113	77113-10020	Plate, Fuel Tank Side
77169	77169-16030	Gasket, Fuel Pump Bracket
77178	77178-20030	Gasket, Fuel Tank Filler Pipe, Lower
77189	77189-18010	Retainer, Fuel Check Valve
77201	77201-16151	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-16161	Pipe Sub-Assy, Fuel Tank Inlet
77201	95311-13028	Hose, Fuel, No.1(For Fuel Tank)
77213	77213-16070	Hose, Fuel Tank To Filler Pipe
77213	77213-16110	Hose, Fuel Tank To Filler Pipe
77251	77251-16150	Tube, Fuel Main
77251	77259-10060	Hose, Fuel, No.1(For Fuel Main Tube)
77255	77255-16190	Tube, Fuel Return
77255	95334-04010	Hose, Fuel(For Fuel Return) - FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261	77261-16090	Tube, Fuel Tank To Canister
77261	77249-10050	Hose, Fuel Emission
77261	77419-10010	Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266	77266-10030	Protector, Fuel Tube, No.1
77267	77267-16020	Protector, Fuel Tube, No.2
77276	77276-10020	Protector, Fuel Hose
77277	95333-04038	Hose, Fuel, No.1(For Return Tube, No.1)
77277	95333-04040	Hose(For Fuel Pump To Fuel Tube)
77277	77279-10010	Hose, Fuel, No.1(For Return Tube, No.1)
77277	95334-04013	Hose, Fuel, No.2 (For Fuel Return Tube)
77277	77277-16100	Protector, Fuel Tank Filler Pipe
77284	77284-16010	Protector, Fuel Tube, No.3
77285	77285-10010	Clamp, Fuel Tube W/grommet, No.1
77289	77289-10020	Clamp, Fuel Tube W/grommet, No.3
77290	77290-16070	Shield Assy, Fuel Tank Filler Pipe
77290	77290-16090	Shield Assy, Fuel Tank Filler Pipe
77293	77293-16070	Shield, Fuel Tank Filler Pipe, No.3
77293	77293-16080	Shield, Fuel Tank Filler Pipe, No.3
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-16150	Lid Assy, Fuel Filler Opening
77350	77350-16160	Lid Assy, Fuel Filler Opening
77366	77360-20030	Spring, Fuel Filler Opening Lid Hinge
77377	77377-20050	Retainer, Fuel Filler Opening Lid Lock
77380	77380-26010	Valve Assy, Fuel Cut Off
77391	77391-14020	Ring, Fuel Inlet Box
77406	90467-16023	Clip(For Fuel Tube Protector)
77412	77412-10010	Support, Fuel Tube Grommet, No.2
77740	77740-16200	Canister Assy, Charcoal
77751	77750-16010	Bracket, Charcoal Canister Base
77751	77750-16011	Bracket, Charcoal Canister Base
77754	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77791	77791-10021	Hose, Outer Vent Valve To Carburetor
91651	91651-B0614	BOLT WWASHER
91651	91651-G0616	BOLT WWASHER
9011906351	90119-06351	New Genuine Part
9011908866	90119-08866	New Genuine Part
9011910252	90119-10252	BOLT
9015950217	90159-50217	SCREW WWASHER
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015950237	90159-50237	New Genuine Part
9015960440	90159-60440	SCREW WWASHER
9015960500	90159-60500	SCREW WWASHER
9017906264	90179-06264	NUT, WWASHER
9017910112	90179-10112	New Genuine Part
9017910112	90179-10186	New Genuine Part
9018905130	90189-05130	GROMMET SCREW
9018906065	90189-06065	CLIP
9018906177	90189-06177	GROMMET SCREW
9044704151	90447-04151	New Genuine Part
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046400591	90464-00591	New Genuine Part
9046705086	90467-05086	New Genuine Part
9046707130	90467-07130	CLIP
9046712056	90467-12056	Clamp Or Clip(For Throttle Body Hose)
9046712056	90466-T0048	New Genuine Part
9046713061	90467-13061	Crip (For Fuel Tank Filler Pipe)
9046716027	90467-16027	New Genuine Part
9046922001	90469-22001	Clamp, Piping
9048001544	90480-01544	New Genuine Part
9048001564	90480-01564	New Genuine Part
9095902002	90959-02002	New Genuine Part
9165160612	91651-60612	BOLT
9331914008	93319-14008	SCREW
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)
9613241000	96132-41000	Clip, No.1(For Idle-Up Hose)
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)

OEM	Part name	Category
58321-10020	Insulator, Rear Floor Heat, No.1	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77001-16180	Tank Assy, Fuel	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77011-10060	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77017-16160	Tube Sub-Assy, Fuel And Evaporation Vent	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77023-10010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77023-16010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77035-16150	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77037-16030	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77113-10020	Plate, Fuel Tank Side	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77169-16030	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77178-20030	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77189-18010	Retainer, Fuel Check Valve	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77201-16151	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77201-16161	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77213-16070	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77213-16110	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77249-10050	Hose, Fuel Emission	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77251-16150	Tube, Fuel Main	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77255-16190	Tube, Fuel Return	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77259-10060	Hose, Fuel, No.1(For Fuel Main Tube)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77261-16090	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77266-10030	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77267-16020	Protector, Fuel Tube, No.2	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77276-10020	Protector, Fuel Hose	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77277-16100	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77279-10010	Hose, Fuel, No.1(For Return Tube, No.1)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77284-16010	Protector, Fuel Tube, No.3	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77285-10010	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77289-10020	Clamp, Fuel Tube W/grommet, No.3	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77290-16070	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77290-16090	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77293-16070	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77293-16080	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77310-12140	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77310-16011	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77350-16150	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77350-16160	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77360-20030	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77377-20050	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77380-26010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77391-14020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77412-10010	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77419-10010	Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77740-16200	Canister Assy, Charcoal	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77750-16010	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77750-16011	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
77791-10021	Hose, Outer Vent Valve To Carburetor	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90119-06351	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90119-08866	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90119-10252	BOLT	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90159-50217	SCREW WWASHER	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90159-50219	BOLT	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90159-50237	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90159-60440	SCREW WWASHER	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90159-60500	SCREW WWASHER	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90179-06264	NUT, WWASHER	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90179-10112	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90179-10186	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90189-05130	GROMMET SCREW	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90189-06065	CLIP	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90189-06177	GROMMET SCREW	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90447-04151	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90460-22001	CLAMP	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90460-22002	CLAMP	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90464-00591	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90466-T0048	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90467-05086	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90467-07130	CLIP	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90467-12056	Clamp Or Clip(For Throttle Body Hose)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90467-13061	Crip (For Fuel Tank Filler Pipe)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90467-16023	Clip(For Fuel Tube Protector)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90467-16027	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90469-22001	Clamp, Piping	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90480-01544	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90480-01564	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
90959-02002	New Genuine Part	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
91651-60612	BOLT	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
91651-B0614	BOLT WWASHER	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
91651-G0616	BOLT WWASHER	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
93319-14008	SCREW	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95311-13028	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95333-04038	Hose, Fuel, No.1(For Return Tube, No.1)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95333-04040	Hose(For Fuel Pump To Fuel Tube)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95334-04010	Hose, Fuel(For Fuel Return) - FUEL, NO.2 (FOR FUEL RETURN TUBE)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95334-04013	Hose, Fuel, No.2 (For Fuel Return Tube)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
96132-41000	Clip, No.1(For Idle-Up Hose)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([08.1993 - ] (9308- )GCC)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 169
Collected: 2026-08-04
