Search › Model › EL40

EL40

Toyota TERCEL · 1990 · 4,573 parts · 169 categories

4,573 items

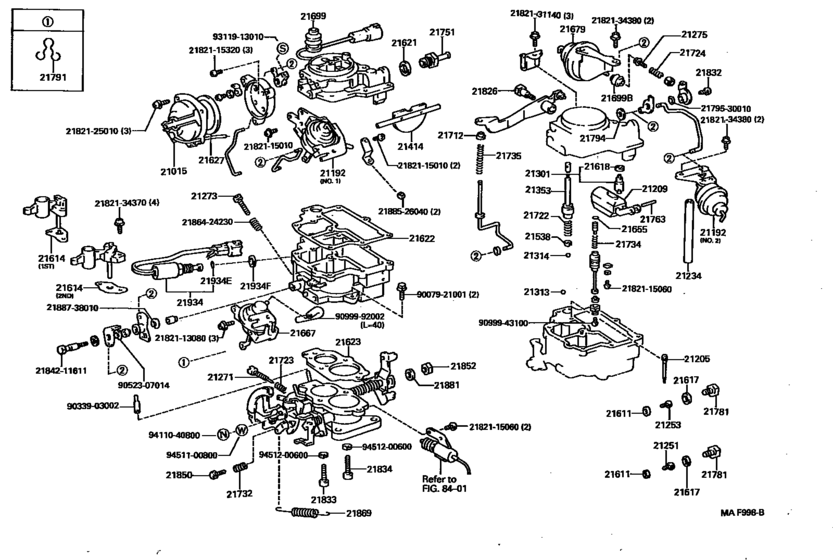

Carburetor ([08.1992 - ] (9208- )) 105

#	OEM	Part name
21015	21015-11840	Housing Sub-Assy, Coil
21192	21192-11840	Breaker
21192	21192-11851	Breaker
21192	21192-10060	Breaker
21205	21205-11840	Jet Sub-Assy, Slow
21205	21205-1E110	Jet Sub-Assy, Slow
21205	21205-24510	Jet Sub-Assy, Slow
21209	21209-11780	Float Sub-Assy
21209	21209-13310	Float Sub-Assy
21234	21235-11840	Pipe Or Hose
21234	90079-71001	Pipe Or Hose, Connecting
21251	90999-41101	Jet, 1St Main
21251	90999-41104	Jet, 1St Main
21253	90999-42165	Jet, 2Nd Main
21253	90999-42153	Jet, 2Nd Main
21271	21271-1B020	Screw, Idle Adjusting
21271	21271-10060	Screw, Idle Adjusting
21271	21271-1E040	Screw, Idle Adjusting
21271	21271-11840	Screw, Idle Adjusting
21273	21273-24231	Screw, Throttle Adjusting
21275	21275-11630	Screw, Adjusting
21275	21275-10050	Screw, Adjusting
21301	21301-11620	Valve Sub-Assy, Needle
21301	21301-13310	Valve Sub-Assy, Needle
21313	21313-11020	Ball, Steel, No.1(For Discharge Weight)
21314	21314-60010	Ball, Steel, No.2(For Pump Plunger)
21314	21314-11020	Ball, Steel(For Auxiliary Acceleration Pump)
21353	21353-11840	Plunger, Pump
21353	21353-13590	Plunger, Pump
21353	21353-11720	Plunger, Pump
21414	21054-11610	Shaft, Choke
21414	21054-10050	Shaft, Choke
21538	21538-31010	Retainer, Ball Check
21611	21611-22010	Gasket, Main Jet
21614	21614-13430	Gasket, Venturi
21614	21614-24580	Gasket, Venturi
21617	21617-30010	Gasket, Main Passage Plug
21618	21618-14010	Gasket, Needle Valve Seat
21621	21633-24030	Gasket, Carburetor To Carburetor Hose Union Bolt
21622	21622-13430	Gasket, Air Horn
21623	21623-11611	Gasket, Body Flange
21623	21623-13430	Gasket, Body Flange
21627	21627-28090	Gasket, Coil Housing
21627	21627-28150	Gasket, Coil Housing
21667	21667-11611	Diaphragm
21667	21667-13290	Diaphragm
21679	21679-11680	Positioner
21679	21679-11630	Positioner
21679	21679-11750	Positioner
21679	21679-11770	Positioner
21699	21699-28150	Boot(For Pump Plunger)
21699	21699-41010	Boot(For Dash Pot)
21712	21712-38010	Bush, Sliding Rod
21712	21712-61020	Bush, Sliding Rod
21722	21722-22010	Spring, Pump Damping
21723	21723-21030	Spring, Idle Adjusting
21724	21864-24010	Spring, Throttle Adjusting
21732	21726-38310	Spring, 1St Idle Adjusting
21734	21734-11630	Spring, Power Piston
21734	21734-33081	Spring, Power Piston
21735	21735-22010	Spring, Pump Arm
21735	21735-23010	Spring, Pump Arm
21751	21751-10050	Union, Nipple
21763	21763-38010	Pin, Float Lever
21781	21781-15230	Plug, Main Passage(For Carburetor Jet)
21791	21791-13011	Ring, Snap, No.1(For Carburetor Link)
21791	21791-13010	Ring, Snap, No.1(For Carburetor Link)
21791	21791-60010	Ring, Snap, No.1(For Carburetor Link)
21794	21794-40070	Ring, Retainer, No.1(For Throttle Shaft)
21826	21826-31012	Screw, Pump Arm Set
21832	21832-15320	Screw(For Choke Lever Adapter Set)
21833	21835-40010	Screw, Set, No.1(For Carburetor Body Set)
21834	21834-31010	Screw, Set, No.1(For Carburetor Body Set)
21850	21272-71010	Screw, 1St Idle Adjusting
21852	21852-30010	Nut, Throttle Lever Set
21869	21869-11840	Spring(For Main Jet)
21881	21881-60010	Washer, Lock(For Throttle Shaft)
21934	21062-11840	Solenoid, Throttle Valve
21934	21655-44101	Ring, O(For Lifter Rod)
21934	21649-38010	Gasket
21934	21062-11750	Solenoid, Throttle Valve
2179530010	21795-30010	Ring, Retainer, No.2(For High Speed Shaft)
2182113080	21821-13080	Screw, 2nd Throttle Valve Set
2182115010	21821-15010	Screw(For Choke Lever Adapter Set)
2182115060	21821-15060	Screw, 2Nd Throttle Valve Set
2182115320	21821-15320	Screw, 2nd Throttle Valve Set
2182125010	21821-25010	Screw, Coil Housing Set
2182131140	21821-31140	Screw(For 2Nd Regulator Cover Set)
2182134370	21821-34370	Screw, 2nd Throttle Valve Set
2182134380	21821-34380	Screw, 2nd Throttle Valve Set
2184211611	21842-11611	Screw, Set(for Carburetor Level Gage Clamp Set)
2186424230	21864-24230	Spring, Throttle Adjusting
2188526040	21885-26040	Washer, Idle Adjust Screw
2188738010	21887-38010	New Genuine Part
2188738010	21885-38310	New Genuine Part
9007921001	90079-21001	New Genuine Part
9033903002	90339-03002	PLUG
9052307014	90523-07014	Ring, E(For Reverse Shift Arm)
9099943100	90999-43100	Jet, Power
9099992002	90999-92002	Air Hose (300 mm)
9311913010	93119-13010	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING
9451200600	94512-00600	Washer, Seal(For Head Cover Set)

OEM	Part name	Category
21015-11840	Housing Sub-Assy, Coil	Carburetor ([08.1992 - ] (9208- ))
21054-10050	Shaft, Choke	Carburetor ([08.1992 - ] (9208- ))
21054-11610	Shaft, Choke	Carburetor ([08.1992 - ] (9208- ))
21062-11750	Solenoid, Throttle Valve	Carburetor ([08.1992 - ] (9208- ))
21062-11840	Solenoid, Throttle Valve	Carburetor ([08.1992 - ] (9208- ))
21192-10060	Breaker	Carburetor ([08.1992 - ] (9208- ))
21192-11840	Breaker	Carburetor ([08.1992 - ] (9208- ))
21192-11851	Breaker	Carburetor ([08.1992 - ] (9208- ))
21205-11840	Jet Sub-Assy, Slow	Carburetor ([08.1992 - ] (9208- ))
21205-1E110	Jet Sub-Assy, Slow	Carburetor ([08.1992 - ] (9208- ))
21205-24510	Jet Sub-Assy, Slow	Carburetor ([08.1992 - ] (9208- ))
21209-11780	Float Sub-Assy	Carburetor ([08.1992 - ] (9208- ))
21209-13310	Float Sub-Assy	Carburetor ([08.1992 - ] (9208- ))
21235-11840	Pipe Or Hose	Carburetor ([08.1992 - ] (9208- ))
21271-10060	Screw, Idle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21271-11840	Screw, Idle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21271-1B020	Screw, Idle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21271-1E040	Screw, Idle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21272-71010	Screw, 1St Idle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21273-24231	Screw, Throttle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21275-10050	Screw, Adjusting	Carburetor ([08.1992 - ] (9208- ))
21275-11630	Screw, Adjusting	Carburetor ([08.1992 - ] (9208- ))
21301-11620	Valve Sub-Assy, Needle	Carburetor ([08.1992 - ] (9208- ))
21301-13310	Valve Sub-Assy, Needle	Carburetor ([08.1992 - ] (9208- ))
21313-11020	Ball, Steel, No.1(For Discharge Weight)	Carburetor ([08.1992 - ] (9208- ))
21314-11020	Ball, Steel(For Auxiliary Acceleration Pump)	Carburetor ([08.1992 - ] (9208- ))
21314-60010	Ball, Steel, No.2(For Pump Plunger)	Carburetor ([08.1992 - ] (9208- ))
21353-11720	Plunger, Pump	Carburetor ([08.1992 - ] (9208- ))
21353-11840	Plunger, Pump	Carburetor ([08.1992 - ] (9208- ))
21353-13590	Plunger, Pump	Carburetor ([08.1992 - ] (9208- ))
21538-31010	Retainer, Ball Check	Carburetor ([08.1992 - ] (9208- ))
21611-22010	Gasket, Main Jet	Carburetor ([08.1992 - ] (9208- ))
21614-13430	Gasket, Venturi	Carburetor ([08.1992 - ] (9208- ))
21614-24580	Gasket, Venturi	Carburetor ([08.1992 - ] (9208- ))
21617-30010	Gasket, Main Passage Plug	Carburetor ([08.1992 - ] (9208- ))
21618-14010	Gasket, Needle Valve Seat	Carburetor ([08.1992 - ] (9208- ))
21622-13430	Gasket, Air Horn	Carburetor ([08.1992 - ] (9208- ))
21623-11611	Gasket, Body Flange	Carburetor ([08.1992 - ] (9208- ))
21623-13430	Gasket, Body Flange	Carburetor ([08.1992 - ] (9208- ))
21627-28090	Gasket, Coil Housing	Carburetor ([08.1992 - ] (9208- ))
21627-28150	Gasket, Coil Housing	Carburetor ([08.1992 - ] (9208- ))
21633-24030	Gasket, Carburetor To Carburetor Hose Union Bolt	Carburetor ([08.1992 - ] (9208- ))
21649-38010	Gasket	Carburetor ([08.1992 - ] (9208- ))
21655-44101	Ring, O(For Lifter Rod)	Carburetor ([08.1992 - ] (9208- ))
21667-11611	Diaphragm	Carburetor ([08.1992 - ] (9208- ))
21667-13290	Diaphragm	Carburetor ([08.1992 - ] (9208- ))
21679-11630	Positioner	Carburetor ([08.1992 - ] (9208- ))
21679-11680	Positioner	Carburetor ([08.1992 - ] (9208- ))
21679-11750	Positioner	Carburetor ([08.1992 - ] (9208- ))
21679-11770	Positioner	Carburetor ([08.1992 - ] (9208- ))
21699-28150	Boot(For Pump Plunger)	Carburetor ([08.1992 - ] (9208- ))
21699-41010	Boot(For Dash Pot)	Carburetor ([08.1992 - ] (9208- ))
21712-38010	Bush, Sliding Rod	Carburetor ([08.1992 - ] (9208- ))
21712-61020	Bush, Sliding Rod	Carburetor ([08.1992 - ] (9208- ))
21722-22010	Spring, Pump Damping	Carburetor ([08.1992 - ] (9208- ))
21723-21030	Spring, Idle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21726-38310	Spring, 1St Idle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21734-11630	Spring, Power Piston	Carburetor ([08.1992 - ] (9208- ))
21734-33081	Spring, Power Piston	Carburetor ([08.1992 - ] (9208- ))
21735-22010	Spring, Pump Arm	Carburetor ([08.1992 - ] (9208- ))
21735-23010	Spring, Pump Arm	Carburetor ([08.1992 - ] (9208- ))
21751-10050	Union, Nipple	Carburetor ([08.1992 - ] (9208- ))
21763-38010	Pin, Float Lever	Carburetor ([08.1992 - ] (9208- ))
21781-15230	Plug, Main Passage(For Carburetor Jet)	Carburetor ([08.1992 - ] (9208- ))
21791-13010	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([08.1992 - ] (9208- ))
21791-13011	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([08.1992 - ] (9208- ))
21791-60010	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([08.1992 - ] (9208- ))
21794-40070	Ring, Retainer, No.1(For Throttle Shaft)	Carburetor ([08.1992 - ] (9208- ))
21795-30010	Ring, Retainer, No.2(For High Speed Shaft)	Carburetor ([08.1992 - ] (9208- ))
21821-13080	Screw, 2nd Throttle Valve Set	Carburetor ([08.1992 - ] (9208- ))
21821-15010	Screw(For Choke Lever Adapter Set)	Carburetor ([08.1992 - ] (9208- ))
21821-15060	Screw, 2Nd Throttle Valve Set	Carburetor ([08.1992 - ] (9208- ))
21821-15320	Screw, 2nd Throttle Valve Set	Carburetor ([08.1992 - ] (9208- ))
21821-25010	Screw, Coil Housing Set	Carburetor ([08.1992 - ] (9208- ))
21821-31140	Screw(For 2Nd Regulator Cover Set)	Carburetor ([08.1992 - ] (9208- ))
21821-34370	Screw, 2nd Throttle Valve Set	Carburetor ([08.1992 - ] (9208- ))
21821-34380	Screw, 2nd Throttle Valve Set	Carburetor ([08.1992 - ] (9208- ))
21826-31012	Screw, Pump Arm Set	Carburetor ([08.1992 - ] (9208- ))
21832-15320	Screw(For Choke Lever Adapter Set)	Carburetor ([08.1992 - ] (9208- ))
21834-31010	Screw, Set, No.1(For Carburetor Body Set)	Carburetor ([08.1992 - ] (9208- ))
21835-40010	Screw, Set, No.1(For Carburetor Body Set)	Carburetor ([08.1992 - ] (9208- ))
21842-11611	Screw, Set(for Carburetor Level Gage Clamp Set)	Carburetor ([08.1992 - ] (9208- ))
21852-30010	Nut, Throttle Lever Set	Carburetor ([08.1992 - ] (9208- ))
21864-24010	Spring, Throttle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21864-24230	Spring, Throttle Adjusting	Carburetor ([08.1992 - ] (9208- ))
21869-11840	Spring(For Main Jet)	Carburetor ([08.1992 - ] (9208- ))
21881-60010	Washer, Lock(For Throttle Shaft)	Carburetor ([08.1992 - ] (9208- ))
21885-26040	Washer, Idle Adjust Screw	Carburetor ([08.1992 - ] (9208- ))
21885-38310	New Genuine Part	Carburetor ([08.1992 - ] (9208- ))
21887-38010	New Genuine Part	Carburetor ([08.1992 - ] (9208- ))
90079-21001	New Genuine Part	Carburetor ([08.1992 - ] (9208- ))
90079-71001	Pipe Or Hose, Connecting	Carburetor ([08.1992 - ] (9208- ))
90339-03002	PLUG	Carburetor ([08.1992 - ] (9208- ))
90523-07014	Ring, E(For Reverse Shift Arm)	Carburetor ([08.1992 - ] (9208- ))
90999-41101	Jet, 1St Main	Carburetor ([08.1992 - ] (9208- ))
90999-41104	Jet, 1St Main	Carburetor ([08.1992 - ] (9208- ))
90999-42153	Jet, 2Nd Main	Carburetor ([08.1992 - ] (9208- ))
90999-42165	Jet, 2Nd Main	Carburetor ([08.1992 - ] (9208- ))
90999-43100	Jet, Power	Carburetor ([08.1992 - ] (9208- ))
90999-92002	Air Hose (300 mm)	Carburetor ([08.1992 - ] (9208- ))
93119-13010	New Genuine Part	Carburetor ([08.1992 - ] (9208- ))
94110-40800	Nut(For Steering Damper)	Carburetor ([08.1992 - ] (9208- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Carburetor ([08.1992 - ] (9208- ))
94511-00800	WASHERSPRING	Carburetor ([08.1992 - ] (9208- ))
94512-00600	Washer, Seal(For Head Cover Set)	Carburetor ([08.1992 - ] (9208- ))

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 169
Collected: 2026-08-04
