Search › Model › EL31

EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories

4,179 items

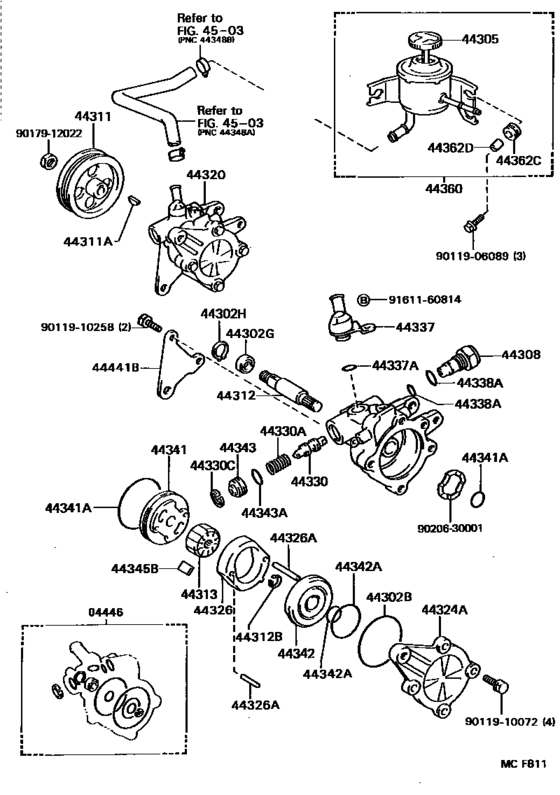

Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR) 69

#	OEM	Part name
4446	04446-16020	Gasket Kit, Power Steering Pump
4446	04446-12030	Gasket Kit, Power Steering Pump
44302	90301-63002	Ring, O, No.1(For Vane Pump Housing)
44302	90311-18008	Seal, Oil, No.2(For Vane Pump Housing)
44302	90521-32001	Ring, Snap, No.1(For Vane Pump Housing)
44305	44305-12010	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-20012	Union Sub-Assy, Pressure Port
44311	44311-16010	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12020	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-16091	Pump Assy, Vane
44324	44324-16020	Housing, Pump, Rear
44326	44325-12060	Ring, Cam(For Vane Pump)
44326	44325-12070	Ring, Cam(For Vane Pump)
44326	44325-12080	Ring, Cam(For Vane Pump)
44326	44325-12090	Ring, Cam(For Vane Pump)
44326	44325-12100	Ring, Cam(For Vane Pump)
44326	90250-05008	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-05017	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-16190	Valve Assy, Flow Control
44330	44330-16191	Valve Assy, Flow Control
44330	44330-16200	Valve Assy, Flow Control
44330	44330-16201	Valve Assy, Flow Control
44330	44330-16210	Valve Assy, Flow Control
44330	44330-16211	Valve Assy, Flow Control
44330	44330-16220	Valve Assy, Flow Control
44330	44330-16221	Valve Assy, Flow Control
44330	44330-16230	Valve Assy, Flow Control
44330	44330-16231	Valve Assy, Flow Control
44330	44330-16240	Valve Assy, Flow Control
44330	44330-16241	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-02200	Ring(For Clutch Master Cylinder Reservoir)
44337	44337-16021	Union, Power Steering Suction Port
44337	96711-19013	Ring, O(For Power Steering Suction Port)
44338	90301-22001	Ring, O(For Pressure Port Union)
44338	96711-19014	O-Ring
44341	44341-30030	Plate, Vane Pump Side, Front
44341	90301-21001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-56002	Ring, O(For Vane Pump Front Side Plate)
44342	44342-30020	Plate, Vane Pump Side, Rear
44342	90301-13004	Ring, O(For Vane Pump Side Plate Rear)
44342	90301-30004	Ring, O(For Vane Pump Side Plate Rear)
44343	44343-12030	Seat, Flow Control Spring
44343	96711-19019	Ring, O(For Vane Pump Union)
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-16011	Reservoir Assy, Vane Pump Oil
44360	44360-16012	Reservoir Assy, Vane Pump Oil
44362	90540-09004	Cushion(For Vane Pump Oil Reservoir)
44362	90560-06014	Spacer(For Vane Pump Oil Reservoir)
44441	44441-16021	Bracket, Pump, Front
9011906089	90119-06089	New Genuine Part
9011910072	90119-10072	New Genuine Part
9011910258	90119-10258	New Genuine Part
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630001	90206-30001	New Genuine Part
9161160814	91611-60814	Bolt

OEM	Part name	Category
04446-12030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
04446-16020	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44305-12010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44308-20012	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44311-16010	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44312-12020	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44320-16091	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44324-16020	Housing, Pump, Rear	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44325-12060	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44325-12070	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44325-12080	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44325-12090	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44325-12100	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16190	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16191	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16200	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16201	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16210	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16211	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16220	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16221	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16230	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16231	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16240	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44330-16241	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44337-16021	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44341-30030	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44342-30020	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44343-12030	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44360-16011	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44360-16012	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
44441-16021	Bracket, Pump, Front	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90119-06089	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90119-10072	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90119-10258	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90206-30001	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90250-05008	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90250-05017	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90301-13004	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90301-21001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90301-22001	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90301-30004	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90301-56002	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90301-63002	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90311-18008	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90521-32001	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90540-09004	Cushion(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
90560-06014	Spacer(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
96151-02200	Ring(For Clutch Master Cylinder Reservoir)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
96711-19013	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
96711-19019	Ring, O(For Vane Pump Union)	Vane Pump & Reservoir (Power Steering) ([05.1988 - ] (8805- )CBR)
