EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories

4,179 items

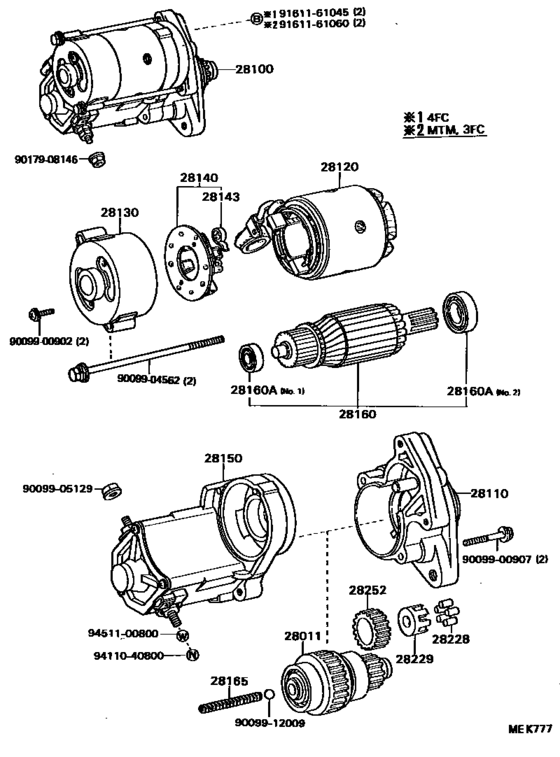

Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#) 44

#	OEM	Part name
28011	28011-10030	Clutch Sub-Assy, Starter
28011	28011-26042	Clutch Sub-Assy, Starter
28100	28100-10050	Starter Assy
28100	28100-10060	Starter Assy
28100	28100-10030	Starter Assy
28100	28100-11010	Starter Assy
28100	28100-10040	Starter Assy
28110	28110-10050	Housing Assy, Starter Drive
28110	28110-10060	Housing Assy, Starter Drive
28110	28110-10030	Housing Assy, Starter Drive
28110	28110-10040	Housing Assy, Starter Drive
28120	28120-15010	Yoke Assy, Starter
28120	28120-26071	Yoke Assy, Starter
28130	28130-34060	Frame Assy, Starter Commutator End
28130	28130-37010	Frame Assy, Starter Commutator End
28140	28140-15010	Holder Assy, Starter Brush
28140	28140-26070	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-34080	Switch Assy, Magnet Starter
28150	28150-37010	Switch Assy, Magnet Starter
28150	28150-37011	Switch Assy, Magnet Starter
28160	28160-15010	Armature Assy, Starter
28160	28160-26070	Armature Assy, Starter
28160	28160-26071	Armature Assy, Starter
28160	28253-45020	Bearing, Starter Armature
28160	90099-10113	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28252	28254-45020	Pinion, Starter Drive
9009900902	90099-00902	Screw, W/washer(For Bearing Cover Setting)
9009900907	90099-00907	New Genuine Part
9009904562	90099-04562	BOLT
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161161045	91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)
9161161045	91612-61045	Bolt(For Transaxle & Engine Setting)
9161161060	91611-61060	Bolt(for Clutch Release Cylinder Setting)
9161161060	91612-61060	Bolt(for Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-10030	Clutch Sub-Assy, Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28011-26042	Clutch Sub-Assy, Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28100-10030	Starter Assy	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28100-10040	Starter Assy	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28100-10050	Starter Assy	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28100-10060	Starter Assy	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28100-11010	Starter Assy	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28110-10030	Housing Assy, Starter Drive	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28110-10040	Housing Assy, Starter Drive	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28110-10050	Housing Assy, Starter Drive	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28110-10060	Housing Assy, Starter Drive	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28120-15010	Yoke Assy, Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28120-26071	Yoke Assy, Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28130-34060	Frame Assy, Starter Commutator End	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28130-37010	Frame Assy, Starter Commutator End	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28140-15010	Holder Assy, Starter Brush	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28140-26070	Holder Assy, Starter Brush	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28150-34080	Switch Assy, Magnet Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28150-37010	Switch Assy, Magnet Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28150-37011	Switch Assy, Magnet Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28160-15010	Armature Assy, Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28160-26070	Armature Assy, Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28160-26071	Armature Assy, Starter	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28229-26040	Retainer, Starter Idle Gear	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28253-45020	Bearing, Starter Armature	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
28254-45020	Pinion, Starter Drive	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90099-00902	Screw, W/washer(For Bearing Cover Setting)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90099-00907	New Genuine Part	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90099-04562	BOLT	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90099-10113	Bearing, Starter Armature	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90099-12009	Ball, Starter Clutch	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90099-17112	Spring, Starter Brush	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90179-08146	Nut	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
90179-08204	Nut	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
91611-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
91612-61045	Bolt(For Transaxle & Engine Setting)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
94110-40800	Nut(For Steering Damper)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
94511-00800	WASHERSPRING	Starter ([05.1988 - ] 12V 1.0KW (8805- )2E,3E#)
