EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories
EL31 ×

← Back to categories

4,179 items

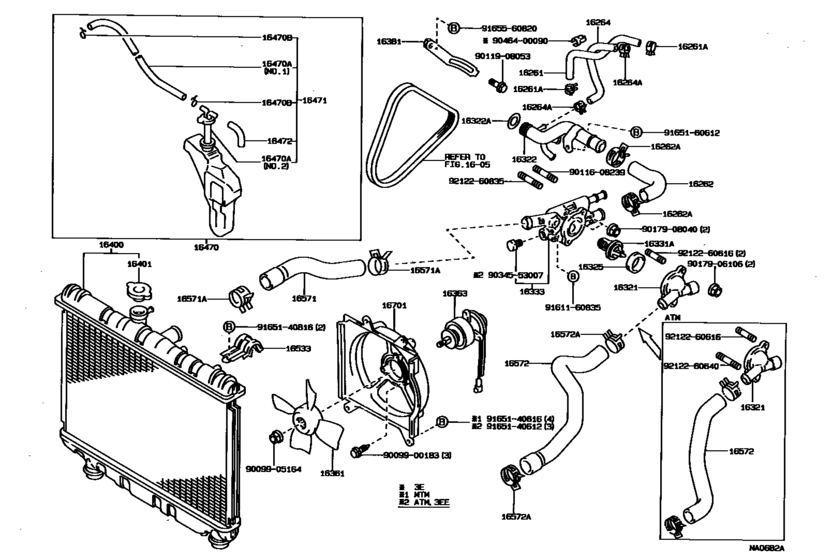

Radiator & Water Outlet ([05.1988 - ] (8805- )2E,3E,3EE) 73
#OEMPart name
16261 16261-11040 Hose, Water By-Pass
16261 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
16261 90467-11049 Clamp Or Clip, Hose(For Water By-Pass Hose)
16262 16262-10020 Hose, Water Inlet
16262 16262-10022 Hose, Water Inlet
16262 90467-34003 Clip(For Oil Return Hose)
16262 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16262 16262-10010 Hose, Water Inlet
16262 16262-10011 Hose, Water Inlet
16264 99555-00270 Hose, Water By-Pass, No.2
16264 99555-00300 Hose, Water By-Pass
16321 16321-11011 Inlet, Water
16321 16321-10011 Inlet, Water
16322 16322-11010 Pipe, Water Inlet
16322 16322-11091 Pipe, Water Inlet
16322 16266-11010 Hose, Water By-Pass, No.3
16322 96711-35028 Ring, O(For Water Inlet)
16322 96761-35028 Ring, O(For Water Outlet)
16325 16325-63010 Gasket, Water Inlet Housing, No.1
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 90916-03046 Thermostat
16333 16303-11130 Housing, Water Outlet
16333 16303-11110 Housing, Water Outlet
16361 16361-64010 Fan
16361 16361-63040 Fan
16363 16363-16010 Motor, Cooling Fan
16363 16363-16020 Motor, Cooling Fan
16363 16363-10010 Motor, Cooling Fan
16381 16381-11030 Bar, Fan Belt Adjusting
16381 16381-11020 Bar, Fan Belt Adjusting
16381 16381-11021 Bar, Fan Belt Adjusting
16400 16400-11280 Radiator Assy
16400 16400-11290 Radiator Assy
16400 16400-11260 Radiator Assy
16401 16401-63010 Cap Sub-Assy,
16470 16470-11010 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-11010 Cap Sub-Assy, Reserve Tank
16472 85338-74040 Hose(For Radiator Drain Cock)
16533 16505-11070 Support, Radiator, Upper
16533 16505-11060 Support, Radiator, Upper
16571 16571-11071 Hose, Radiator, Inlet
16571 90467-31001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-30001 Clip Or Clamp(For Ventilation Hose)
16571 90467-31003 Clip(For Ventilation Hose)
16572 16572-11160 Hose, Radiator, Outlet
16572 16572-11150 Hose, Radiator, Outlet
16701 16711-11120 Shroud Sub-Assy, Fan
16701 16711-11110 Shroud Sub-Assy, Fan
9009900183 90099-00183 New Genuine Part
9009905164 90099-05164 Nut
9011608239 90116-08239 BOLT
9011908053 90119-08053 New Genuine Part
9011908053 91661-40825 New Genuine Part
9017906106 90179-06106 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9034553007 90345-53007 Plug, W/head Taper Screw, No.1
9046400090 90464-00090 New Genuine Part
9161160835 91611-60835 Bolt(For Clutch Release Cylinder Setting)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140816 91651-40816 BOLT
9165160612 91651-60612 BOLT
9165560820 91655-60820 BOLT
9165560820 91651-60816 BOLT
9212260616 92122-60616 BOLT STUD
9212260640 92122-60640 New Genuine Part
9212260835 92122-60835 New Genuine Part
