Search › Model › EL31

EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories
EL31 ×

← Back to categories

4,179 items

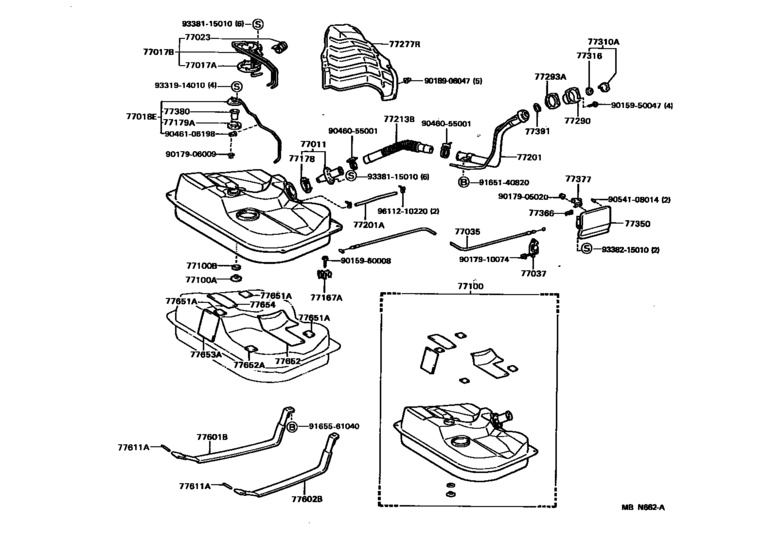

Fuel Tank & Tube ([05.1988 - ] (8805- )) 62
#OEMPart name
77011 77011-12020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-16050 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-16060 Pipe Sub-Assy, Fuel Tank Filler, Lower
77017 77178-10010 Gasket, Fuel Pump Bracket
77017 77017-16090 Tube Sub-Assy, Fuel Tank Vent
77018 77018-16041 Tube Sub-Assy, Fuel Tank Evaporation Vent
77018 77018-16040 Tube Sub-Assy, Fuel Tank Evaporation Vent
77023 77023-12050 Filter Sub-Assy, Fuel Suction Tube
77035 77035-16060 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-12040 Lock Sub-Assy, Fuel Tank Cap
77037 77037-38010 Lock Sub-Assy, Fuel Tank Cap
77100 77001-19435 Tank Assy, Fuel
77100 77001-19495 Tank Assy, Fuel
77100 77017-16071 Tube Sub-Assy, Fuel And Evaporation Vent
77100 77001-19485 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77167 77167-16010 Support, Fuel Tank Vent Tube, No.2
77178 77178-13020 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-16010 Gasket, Fuel Tank Evap/vent Tube
77201 77201-16080 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-16130 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-22009 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-16040 Hose, Fuel Tank To Filler Pipe
77277 77277-16080 Protector, Fuel Tank Filler Pipe
77290 77290-16050 Shield Assy, Fuel Tank Filler Pipe
77290 77290-16060 Shield Assy, Fuel Tank Filler Pipe
77293 77293-16040 Shield, Fuel Tank Filler Pipe, No.3
77310 77310-12100 Cap Assy, Fuel Tank
77316 77316-12050 Gasket (For Fuel Tank Cap)
77350 77350-16120 Cover Sub-Assy, Fuel Inlet Box
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-20030 Retainer, Fuel Filler Opening Lid Lock
77380 77380-14020 Valve Assy, Fuel Cut Off
77391 77391-16010 Ring, Fuel Inlet Box
77601 77601-16070 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-16050 Band Sub-Assy, Fuel Tank, No.1 Lh
77611 90250-08019 Pin (For Fuel Tank Band)
77651 77651-16060 Cushion, Fuel Tank, No.1
77652 77651-16070 Cushion, Fuel Tank, No.1
77652 77652-16070 Cushion, Fuel Tank, No.2
77653 77653-16060 Cushion, Fuel Tank, No.3
77654 77652-16080 Cushion, Fuel Tank, No.1
9015950047 90159-50047 New Genuine Part
9015960008 90159-60008 SCREW
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9017910074 90179-10074 New Genuine Part
9018906047 90189-06047 GROMMET
9046055001 90460-55001 New Genuine Part
9046055001 96111-20550 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9046106198 90461-06198 New Genuine Part
9054108014 90541-08014 Cushion(For Fuel Inlet Box Cover)
9165140820 91651-40820 Bolt
9165561040 91655-61040 New Genuine Part
9165561040 91651-61035 BOLT
9331914010 93319-14010 SCREW
9338115010 93381-15010 SCREW
9338215010 93382-15010 New Genuine Part
9611210220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
