EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories
EL31 ×

← Back to categories

4,179 items

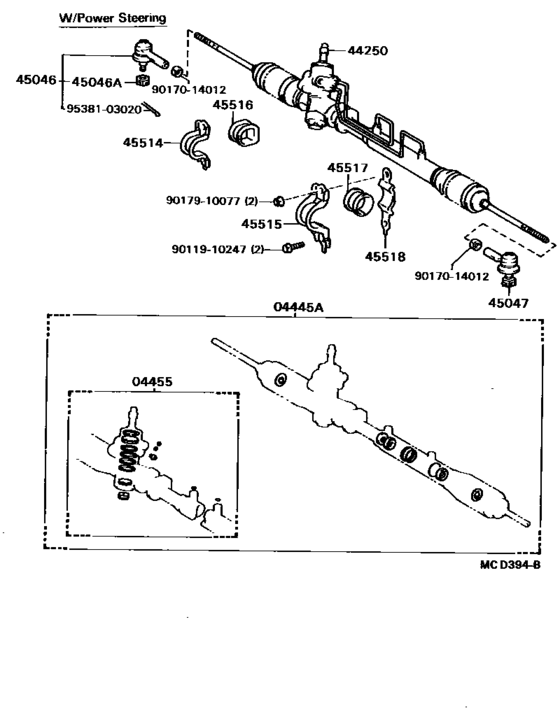

Front Steering Gear & Link ([05.1988 - ] ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ (8805- )) 57
#OEMPart name
4445 04445-16032 Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455 04455-16030 Gasket Kit, Power Steering Control Valve Overhole
44201 44201-16030 Valve Sub-Assy, Power Steering Control
44201 90560-33003 Spacer(For Power Steering Control Valve)
44204 44204-16030 Rack Sub-Assy, Power Steering
44204 90301-29005 Ring(For Rack Steering Piston)
44204 90562-34002 Ring(For Rack Steering Piston)
44205 44205-16020 Bush Sub-Assy, Power Steering Rack
44205 90301-33004 Ring, O(For Cylinder End Stopper)
44205 90311-22014 Seal, Oil(For Power Steering Rack Bush)
44206 90311-22013 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206 90311-22015 Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206 90560-23011 Spacer, No.1(For Power Steering Cylinder Tube)
44206 44263-16010 Spacer, No.1(For Power Steering Cylinder Tube)
44222 45222-16080 Cover, Dust(For Power Steering Gear)
44240 44240-16030 Housing Assy, Power Steering Rack
44240 44240-16031 Housing Assy, Power Steering Rack
44250 44250-16051 Gear Assy, Power Steering(For Rack & Pinion)
44250 44250-16052 Gear Assy, Power Steering(For Rack & Pinion)
44252 90363-12006 Bearing(For Power Steering Control Valve Lower)
44252 90363-12009 Bearing(For Power Steering Control Valve Lower)
44253 90410-05006 Seat, Union(For Power Steering Control Valve)
44253 90311-19009 Seal, Oil, No.1(For Power Steering Rack Housing)
44253 90310-23004 Seal, Oil(For Power Steering Rack Housing)
44253 90521-40001 Ring, Hole Snap(For Power Steering Rack Housing)
44275 44275-16020 Stopper, Cylinder End
44275 90580-18001 Wire(For Cylinder End Stopper)
44283 44283-16010 Cap, Power Steering Rack Housing
44418 44418-16030 Tube, Steering Right Turn Pressure
44418 90301-03001 Seat, Union(For Steering Turn Pressure Tube)
44418 90080-30023 Ring, O(For Steering Turn Pressure Tube)
44419 44419-16030 Tube, Steering Left Turn Pressure
44503 45503-19116 End Sub-Assy, Steering Rack(For Power Steering)
44503 90214-12002 Washer, Claw(For Power Steering Rack End)
44523 90501-23075 Spring(For Power Steering Rack Guide)
44524 90179-30002 Nut(For Power Steering Rack Guide Cap)
45046 45046-19175 End Sub-Assy, Tie Rod
45046 90171-12028 Nut, Castle(For Pitman Arm)
45514 45514-16040 Bracket, Steering Rack Housing, No.1
45515 45515-16050 Bracket, Steering Rack Housing, No.2
45516 45516-16040 Grommet, Steering Rack Housing, No.1
45516 45516-20010 Grommet, Steering Rack Housing, No.1
45517 45517-16040 Grommet, Steering Rack Housing, No.2
45518 45518-16030 Bracket, Steering Rack Housing, No.3
45523 45523-10030 Guide, Rack(For Power Steering)
45524 45524-10030 Cap, Rack Guide Spring(For Power Steering)
45535 45535-16020 Boot, Steering Rack No.1(For Power Steering)
45535 90467-18003 Clip Or Clamp(For Ventilation Hose)
45535 90460-56001 Clamp(For Power Steering Rack Boot)
45536 45536-10070 Boot, Steering Rack No.2(For Power Steering)
45536 90460-48002 Clamp(For Power Steering Rack Boot)
9011910247 90119-10247 BOLT
9017014012 90170-14012 Nut, Rack End Lock
9017910048 90179-10048 Nut, Lock(For Power Steering Control Valve)
9017910077 90179-10077 Nut (For Front Lower Ball Joint Setting)
9017910077 90179-10088 Nut
9538103028 95381-03028 PIN
