EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories

4,179 items

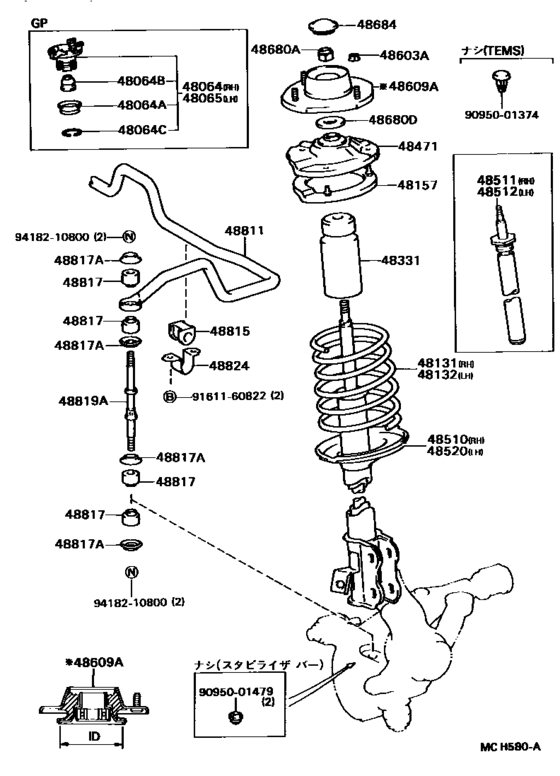

Front Spring & Shock Absorber ([05.1988 - ] (8805- )) 21

#	OEM	Part name
48131	48131-16471	Spring, Front Coil, Rh
48131	48131-16361	Spring, Front Coil, Rh
48157	48157-16030	Insulator, Front Coil Spring, Upper
48331	48331-10070	Bumper, Front Spring, No.1
48471	48044-10020	Seat, Front Spring, Upper
48510	48510-16281	Absorber Assy, Shock, Front Rh
48510	48510-16700	Absorber Assy, Shock, Front Rh
48511	48511-16010	Absorber, Shock Front, Rh(For Cartridge Type)
48511	48511-16020	Absorber, Shock Front, Rh(For Cartridge Type)
48520	48520-16061	Absorber Assy, Shock, Front Lh
48520	48520-16460	Absorber Assy, Shock, Front Lh
48603	90179-08090	Nut(For Front Suspension Support)
48609	48609-16090	Support Sub-Assy, Front Suspension
48609	48609-16100	Support Sub-Assy, Front Suspension
48680	94182-11400	Nut(For Idler Arm Support)
48680	90303-22049	Seal, Dust(For Front Suspension Support)
48684	48684-10010	Cover, Bearing Dust
9095001374	90950-01374	Cover, Switch Hole
9095001479	90950-01479	New Genuine Part
9161160822	91611-60822	Bolt
9418210800	94182-10800	Nut

OEM	Part name	Category
48044-10020	Seat, Front Spring, Upper	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48131-16361	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48131-16471	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48157-16030	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48331-10070	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48510-16281	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48510-16700	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48511-16010	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48511-16020	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48520-16061	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48520-16460	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48609-16090	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48609-16100	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
48684-10010	Cover, Bearing Dust	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
90179-08090	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
90303-22049	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
90950-01374	Cover, Switch Hole	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
90950-01479	New Genuine Part	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
91611-60822	Bolt	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
94182-10800	Nut	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))
94182-11400	Nut(For Idler Arm Support)	Front Spring & Shock Absorber ([05.1988 - ] (8805- ))

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 181
Collected: 2026-08-02
