EL31

Toyota COROLLA · 1986 · 4,179 parts · 181 categories
EL31 ×

← Back to categories

4,179 items

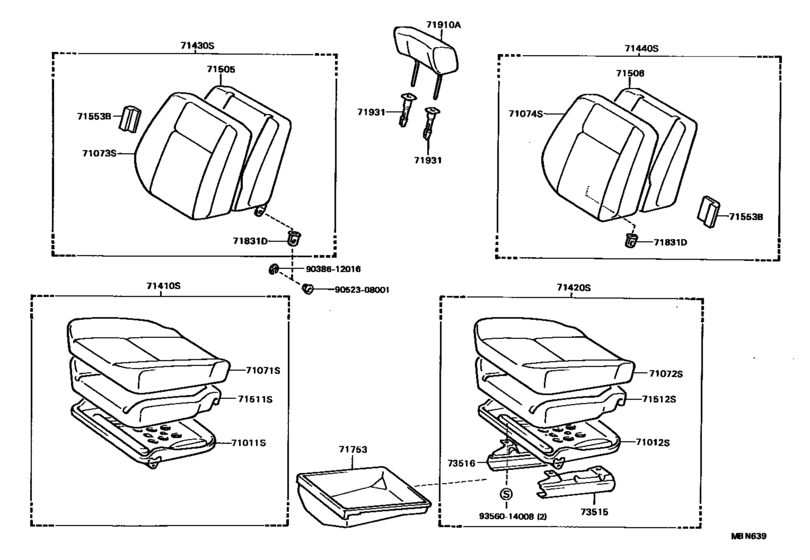

Front Seat & Seat Track ([05.1988 - ] (8805- )CBR,TD) 70
#OEMPart name
71011 71011-16040 Frame Sub-Assy, Front Seat Cushion, Rh
71012 71011-12190 Frame Sub-Assy, Front Seat Cushion, Rh
71071 71071-16591-03 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-16591-04 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-16671-03 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-16671-04 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-16481-03 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-16481-04 Cover, Front Seat Back, Lh(For Separate Type)
71410 71410-16631-03 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-16631-04 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-16601-03 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-16601-04 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71430-16691-03 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-16691-04 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-16651-03 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-16651-04 Back Assy, Front Seat, Lh(For Separate Type)
71505 71505-16020 Pad Sub-Assy, Front Seat Back W/frame, Rh
71506 71506-16020 Pad Sub-Assy, Front Seat Back W/frame, Lh
71511 71511-16100 Pad, Front Seat Cushion, Rh(For Separate Type)
71553 71553-16030 Pad, Front Seat Back, B
71753 71753-12010 Tray, Front Seat Under
71811 71811-16110-01 Shield, Front Seat Cushion, Rh
71811 71811-16110-04 Shield, Front Seat Cushion, Rh
71812 71812-16050-01 Shield, Front Seat Cushion, Lh
71812 71812-16050-04 Shield, Front Seat Cushion, Lh
71831 71831-10010 Cover, Front Seat Hinge
71861 71861-16060-01 Shield, Front Seat Cushion, Inner Rh
71861 71861-16060-04 Shield, Front Seat Cushion, Inner Rh
71862 71862-12010-01 Shield, Front Seat Cushion, Inner Lh
71862 71862-12010-14 Shield, Front Seat Cushion, Inner Lh
71910 71910-16191-03 Headrest Assy, Front Seat
71910 71910-16191-04 Headrest Assy, Front Seat
71931 71931-16011-01 Support, Front Seat Headrest
71931 71931-16011-04 Support, Front Seat Headrest
72011 72010-16190-01 Adjuster Sub-Assy, Front Seat, Outer Rh
72011 72010-16190-04 Adjuster Sub-Assy, Front Seat, Outer Rh
72011 90506-18015 Spring, Tension (For Front Seat Adjuster Outer)
72011 90506-18057 Spring, Tension (For Front Seat Adjuster Outer)
72012 72020-16140 Adjuster Sub-Assy, Front Seat, Outer Lh
72130 72130-16120 Track Assy, Rh Seat, Inner
72137 72137-16020 Cover, Seat Track, Outer Rh
72138 72138-16020 Cover, Seat Track, Outer Lh
72140 72140-16120 Track Assy, Lh Seat, Inner
72157 72157-16030 Cover, Seat Track Bracket, Inner Rh
72158 72158-16030 Cover, Seat Track Bracket, Inner Lh
72210 72210-16160 Cable Assy, Seat Track Control
72213 72213-16010-01 Knob, Seat Track Adjusting Handle
72213 72213-16010-04 Knob, Seat Track Adjusting Handle
72301 72301-16070 Wire Sub-Assy, Seat Track Equalizing
72525 72525-12090-11 Handle, Reclining Adjuster Release
72525 72525-12090-C0 Handle, Reclining Adjuster Release (Black)
72525 72525-12090-24 Handle, Reclining Adjuster Release
72526 72526-12030-11 Handle, Reclining Adjuster Release
72526 72526-12030-C0 Handle, Reclining Adjuster Release - RECLINING ADJUSTER RELEASE, LH
72526 72526-12030-24 Handle, Reclining Adjuster Release
73515 73515-12020 Rail, Front Seat Under Tray, No.1
73516 73516-12020 Rail, Front Seat Under Tray, No.2
9011908080 90119-08080 BOLT
9011908174 90119-08174 New Genuine Part
9011908336 90119-08336 BOLT
9011910117 90119-10117 New Genuine Part
9011910229 90119-10229 BOLT
9015480002 90154-80002 New Genuine Part
9016840011 90168-40011 SCREW
9016840036 90168-40036 SCREW
9038612016 90386-12016 Bush (For Front Seat Hinge Pin)
9052308001 90523-08001 E Ring (For Tilt Motor Shaft, Lower)
9324954006 93249-54006 Screw
9356014008 93560-14008 New Genuine Part
9616000800 96160-00800 Ring, E(For Counter Weight)
